Dorner 39M Series - Product Description; Specifications

Fixed and Adjustable Height Stands Set-up, Operation & Maintenance Manual
Dorner Mfg. Corp. 3 851-558 Rev. B

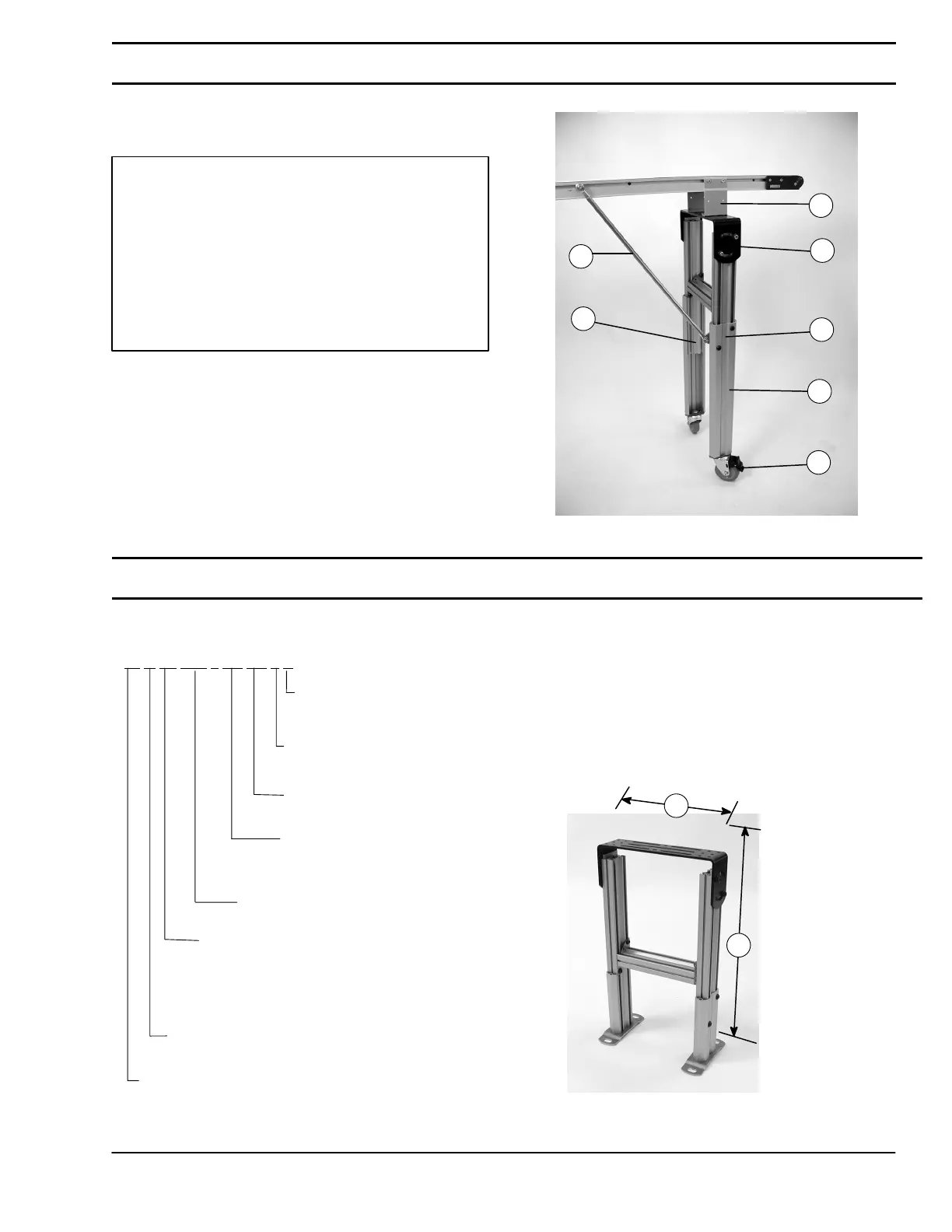

Refer to Figure 1 for typical stand components.
A Support Stand
B Stand Mounting Bracket (with conveyor)
C Boot
D Height Adjustment Point
E Angle Adjustment Point
F Optional Casters
G Optional Diagonal Brace
Typical Components
A
B
C
D
E
F
Figure 1
G
Specifications
Fixed and Adjustable Stand Models
Language Code
M = U.S. English
Width
02” to 48”
Min Height
From Floor to Top Bracket
Max Height
From Floor to Top Bracket
H Style Stand
39 M TT WW – HH HH F A
Stand Type
FH = Fixed Height
AH = Adjustable Height
FT = Tall, Fixed Height
AT = Tall, Adjustable Height
Floor Interface
F = Fixed Foot Pad
C = Total Lock Swivel Caster
Assembly
P = Partially Assembled
A = Fully Asembled
Example: 39MFH12–3248FP
Fixed height, H style stand for a 12”
wide conveyor with a min height of 32”
and a max height of 48” with fixed foot
pads. It comes partially assembled and
has U.S. English documentation.
WW
HH
Product Description
