DOSATRON INTERNATIONAL / 19
INTERNATIONAL CONVERSIONS
Principle : Setting at 1% 1/100 = 1 part of concentrate for 100
parts of water.
Ex. : Setting at 2% 2/100 = 2 parts of concentrate for 100 parts
of water.
Ratio 1/50.
FITTING THE SUCTION TUBE
If the Dosatron has already been used, please impera-
tively refer to § PRECAUTIONS.
- Unscrew the nut (Fig. 12-C) at the bottom of
the injection assembly and put it onto the tube.
- Slide the tube onto the barb as far as it will go,
tighten the clamp.

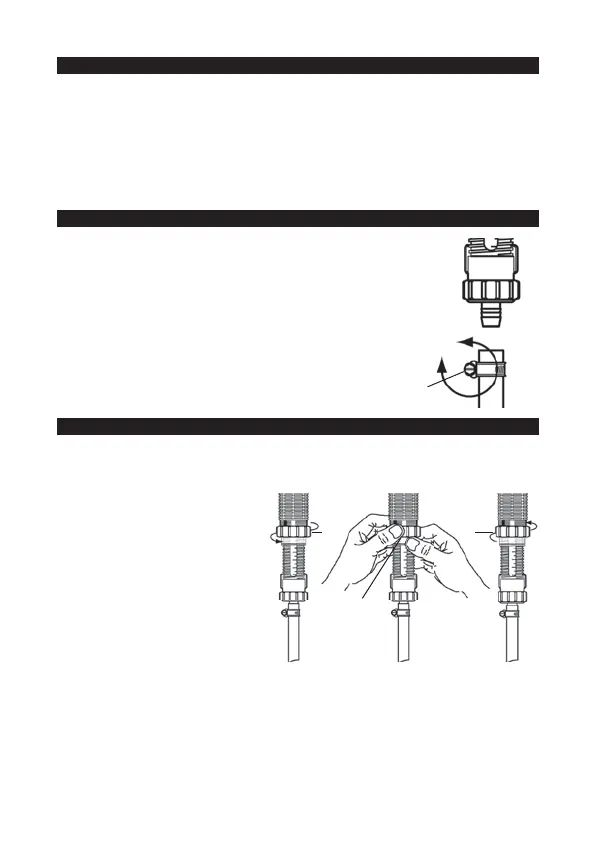

Fig. 12
C
ADJUSTING THE INJECTION RATE (with pressure off)
IMPORTANT ! Use no tools. Adjustment must be made when
there is no pressure in the Dosatron.
- Bring the bypass button
into the median position.
- Unscrew the blocking nut
(Fig. 13-B).
- Keep it fixed while screwing
or unscrewing the transpa-
rent ring (Fig. 13-D).
- Adjust the guide mark
(black line) of the trans-
parent ring on the chosen
dosage.
- Tighten the blocking nut
(Fig. 13-B).
Fig. 13
B
B
D
REMINDER: The quantity of injected product is proportional to the
quantity of water entering the Dosatron. 1% 1/100, which means
100 volumes of water + 1 volume of injected products.
