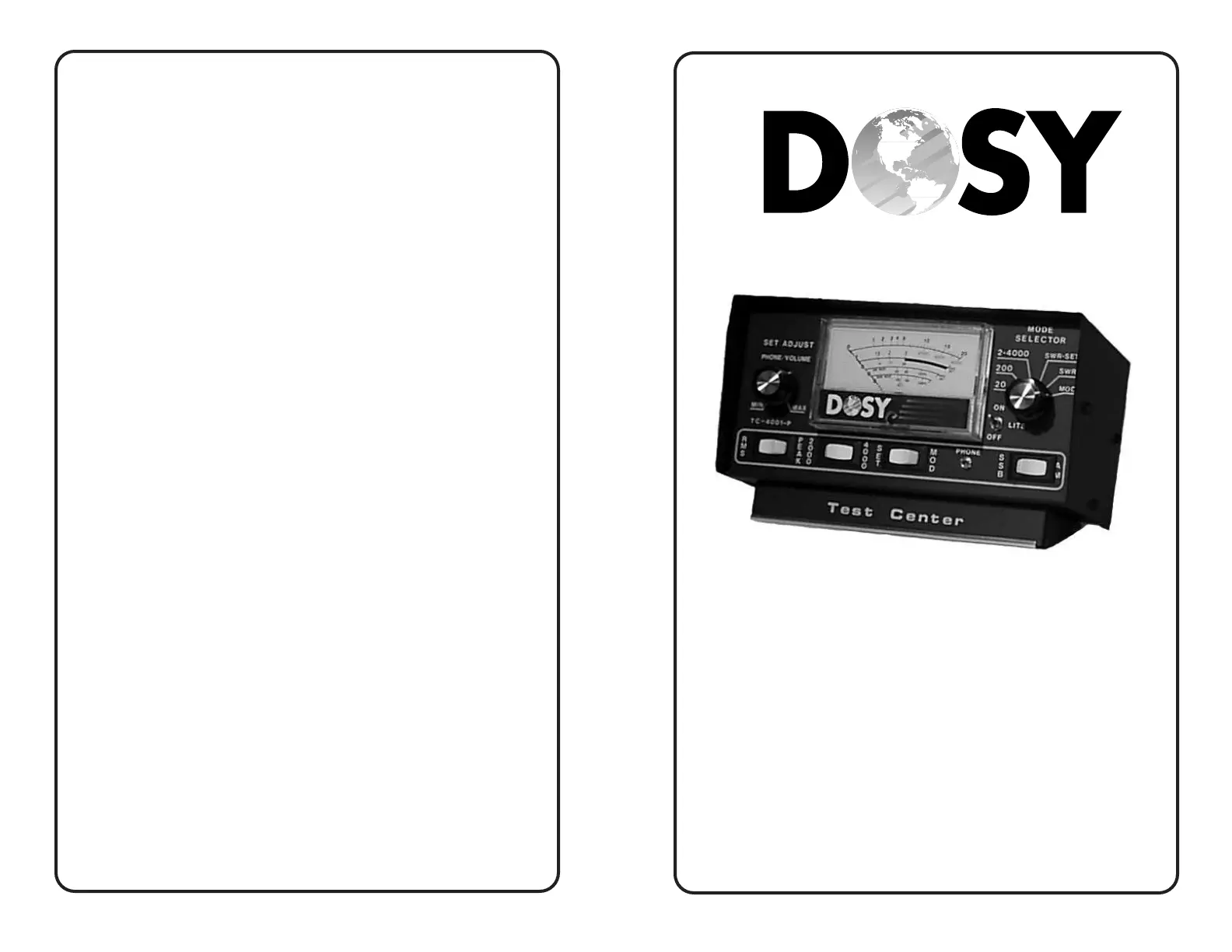

Dosy Test Center TC-4001-P User Manual

Q. P. Inc.
"DOSY METERS"
530 E. Lexington Ave. #155
Elkhart, IN 46516
(574) 295-6884
www.DOSY.com
DOSY TC-4001-P
Test Center
Instruction Manual
General Notation
On Grounded Grid amplifiers, we do not recommend checking modulation
at higher powers. Grounded Grid amplifiers will not be able to output 100%
modulation in the A.M. mode, however, the feed through power prevents
the grounded grid from being fully modulated. This is the reason A.M.
modulation should be checked at the transmitter, or with the Linear
Amplifier in standby position.
Meter Scale Reading
0 - 20 Watts................................................................... 20 Scale
0 - 200 Watts ........................................................ 20 Scale X 10
0 - 2000 Watts .....................................................20 Scale X 100
0 - 4000 Watts ...........................................................4000 Scale
SSB Modulation Check
1. Turn Mode Selector Switch (#5 Fig. 1) to MOD position
2. Switch SSB/AM rocker (#6 Fig. 1) to SSB
3. For this test, the Transmitter must be in AM mode for setting
modulation on meter to the SET line position on meter.
Make sure you use the lower scale marked SSB MOD.
4. With Transmitter keyed, turn Mode Switch on Transmitter to
either UPPER or LOWER SIDE BAND and talk or whistle
steadily into the microphone. Read modulation on the
lower scale of meter, marked SSB MOD.
A.M. Modulation Check (CONT.)
NOTE: A.M. modulation check functions must be performed
on each wattage range, to prevent possible damage to the
meter movements.
