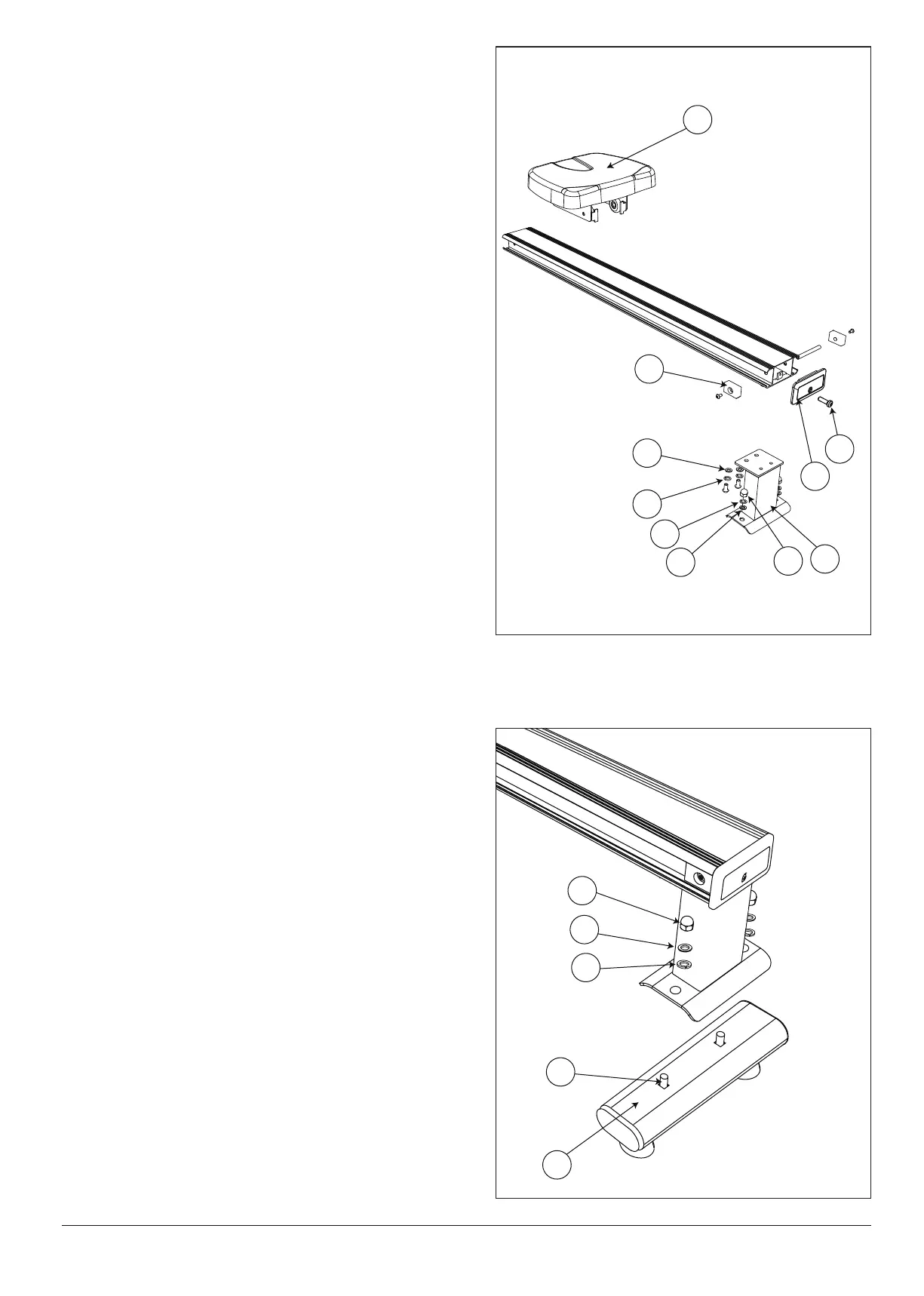

Step 3: Assemble the seat and rear of the rail
Attention: There are four Allen bolts(No.20), four flat
washers(No.21) and four split washers(No.22) under the
rail. One lock bolt set(No.6), one connection sheet(No.9)
and one rear rail cover(No.10) preinstalled on the rail
(No.3). Please unscrew them (not including connection
sheet ) before assembly.
For the step, please prepare the seat(No.7), rear support
(No.8) and two Allen wrenches(No.32).
Install the seat to the rail. Attach the rear support under
the rail.
Screw four bolts under the rail to fix the rear support.
Disassemble one side of the lock bolt set. Insert to the
horizontal hole of the rail and screw the rubber pad and
the lock bolt back. Rotate the rubber pads upright to fix.
Cover the rear rail cover and screw the M5*16 bolt
(No.23) to fix.
Step 4: Assemble the rear foot pipe
Attention: There are two carriage bolts(No.24), two flat
washers(No.18),two split washers(No.19) and two acorn
nuts (No.25) on the rear foot pipe (No.11). Please
unscrew them before assembly.
Attach the rear foot pipe to the rear support.
Screw two M10*55mm carriage bolts(No.24), two M10
flat washer(No.18) and two M10 acorn nuts(No.25) by
using the open end wrench(No.33).
