Page 6

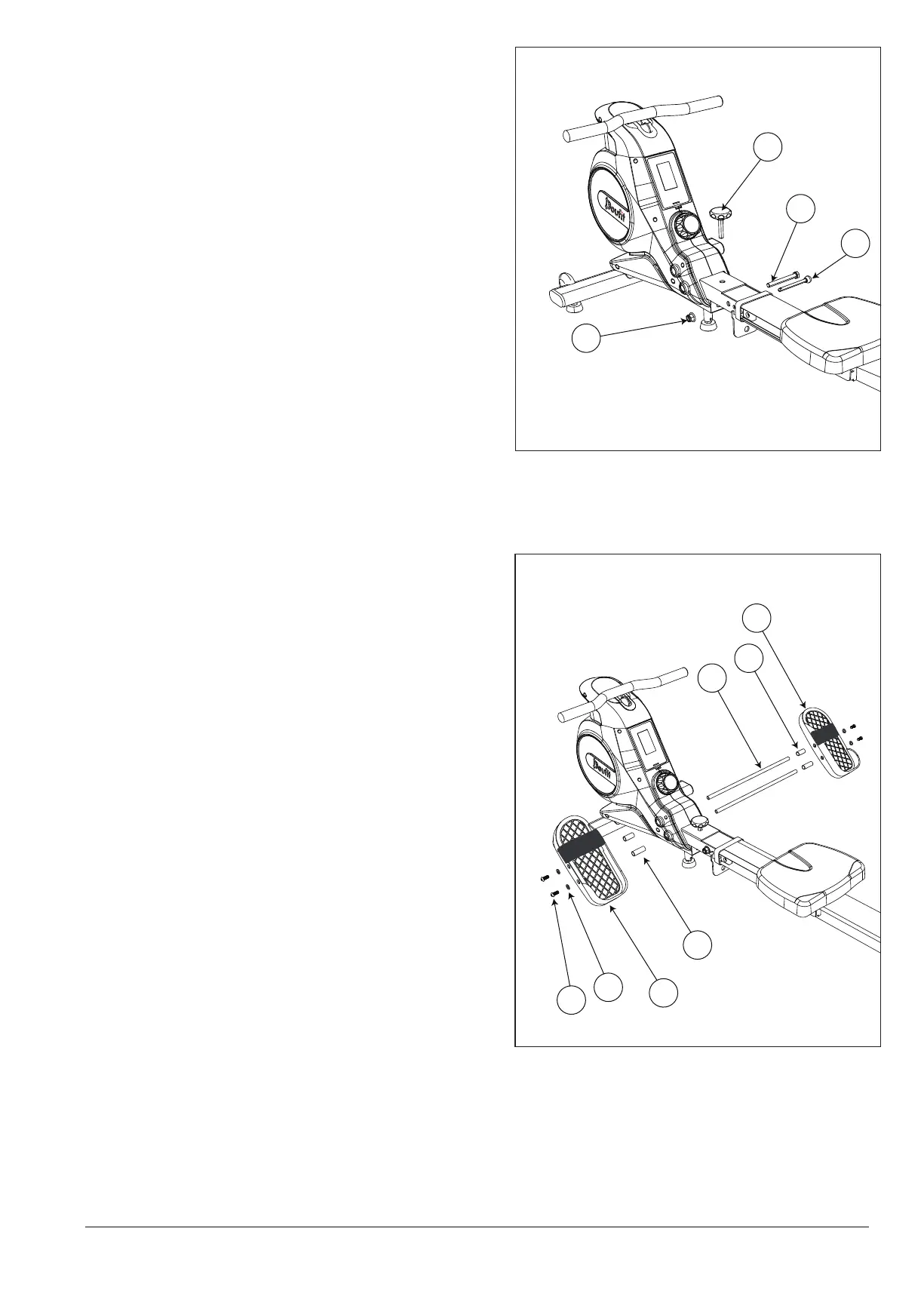

Step 5: Assemble the rail
Connect the rail and the frame.
Screw the M12*100mm hex bolt(No.26) and the M12
lock nut(No.27) to the hole near to the frame by using
two open end wrenches(No.33).
Insert the detent pin(No.28) to the hole near to the rail.
Finally, screw the knob bolt(No.29) to fix.
Step 6: Assemble the pedals
Attention: The two short sleeves,two long sleeves and two
pedal pipes were preinstalled together.Please unscrew
them before assembly.
For this step, please prepare four sleeves(No.12)(No.13),
two pedals(No.14)(No.15), two pedal pipes(No.16), four
M8*20mm hex bolts(No.30), four big M8*20mm flat
washers(No.31), and two open end wrenches(No.33).
Insert two pedal pipes into the frame. Attach two short
sleeves to the upper pedal pipe. Attach two long sleeves to
the lower pedal pipe. Attach two pedals to the pedal pipes.
Attention: the shield of the pedals should face toward the
frame.
Finally, screw four M8*20mm flat washers and four
M8*20mm hex bolts to fix the pedals.
27
26
28
29
15
12
16
14
31
30
13
