63
Appendix B

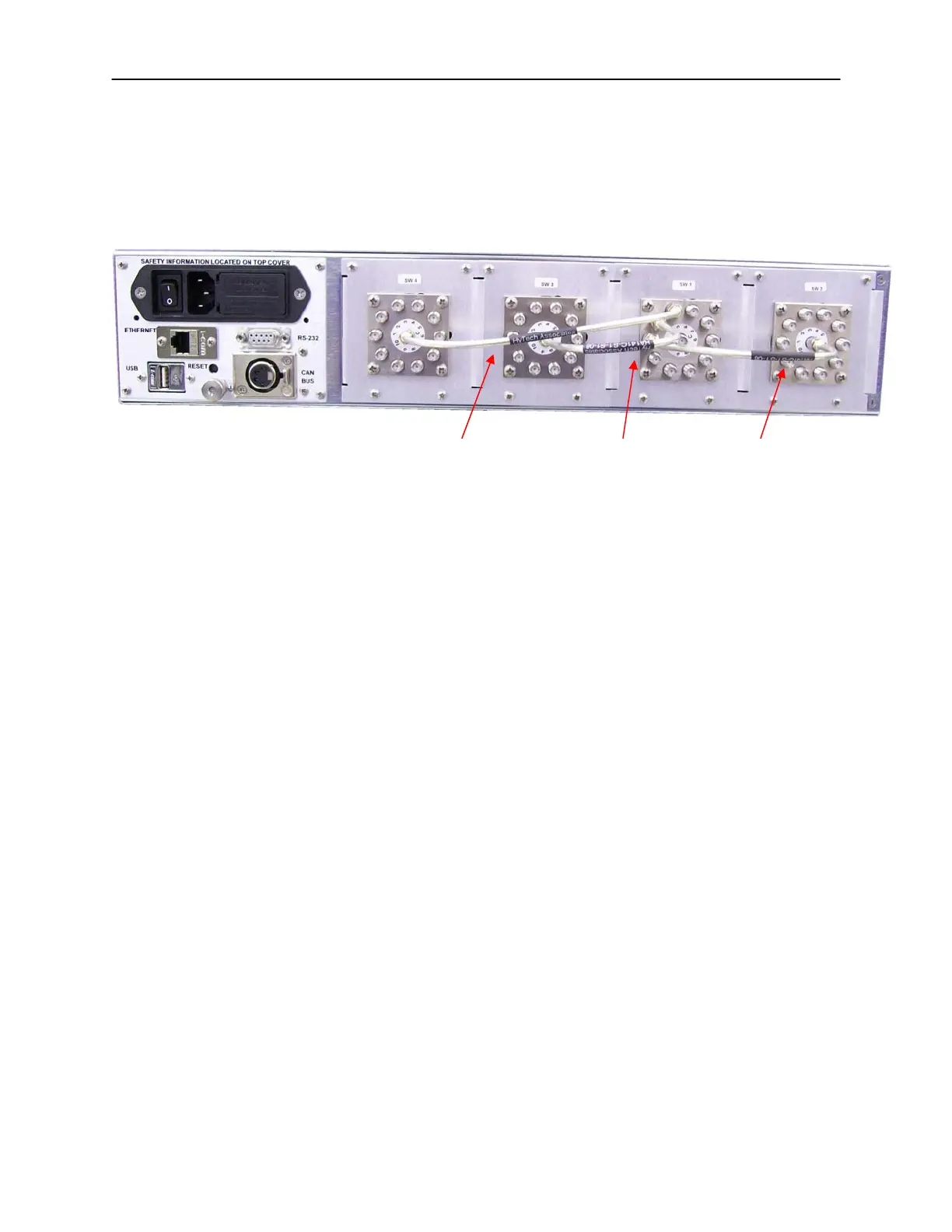

The end user shall reconnect the RF cables as per the schematic above and picture
below.
Cable #3 Cable #2 Cable #1
Note: Although the above picture is showing a Ethernet matrix model all RF
considerations and information in Appendix B are valid.
