DPA 4011 - Page 6

6

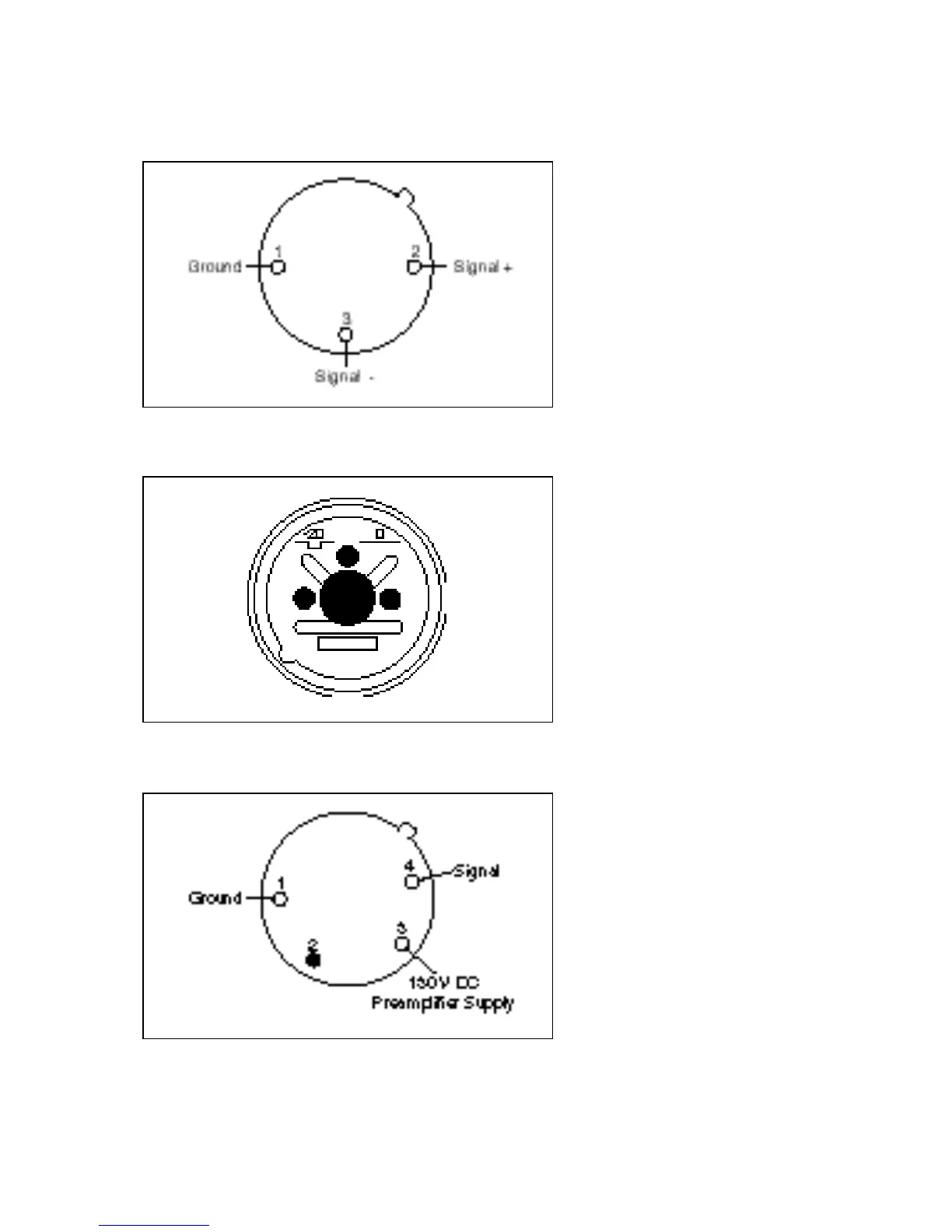

Fig. 7.
External view of the
output socket of the
Type 4012 and 4016.
Fig. 5.
External view of the
output socket of the
Type 4011 and 4015.
Fig.6
The switch on the
XLR-connector of Type
4011 and 4015 is used
to select between 0dB
and 20dB attenuation.
Switch pressed in
results in 20 dB
attenuation.
