9

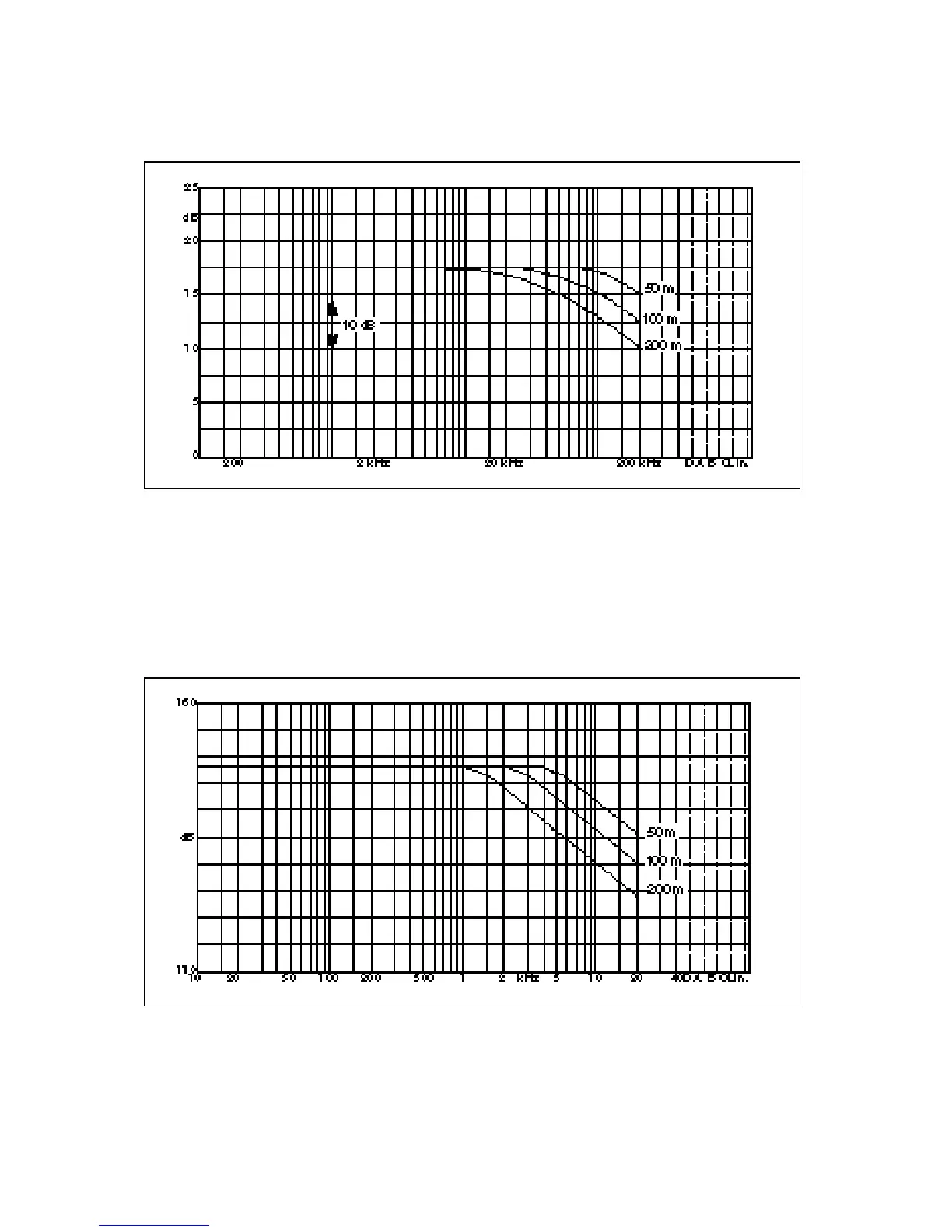

Fig. 12. The effect of various cable lengths (loading capacitance)
on the frequency response of the 4011 and 4015 (based
on nominal sensitivity). For the 4012 and 4016 with the HMA4000
the curve shapes are the same, but the cable lengths are three
times greater.
Fig. 13. SPL-handling capability (before clipping occurs) of 4011 and
4015 with various cable lengths (based on nominal sensitivity).
