DPA 4041-S - Page 4

4
Cables
For the 4041-S and 4041-T the dedicated DAO4110 cable is being
used between the microphone and the hi-vo l ta ge amp l i fi e r.
The 4041-SP uses a regular 3-pin XLR cable, such as the AO0182.
Important: The microphones will only operate within their
specifications if powered correctly.

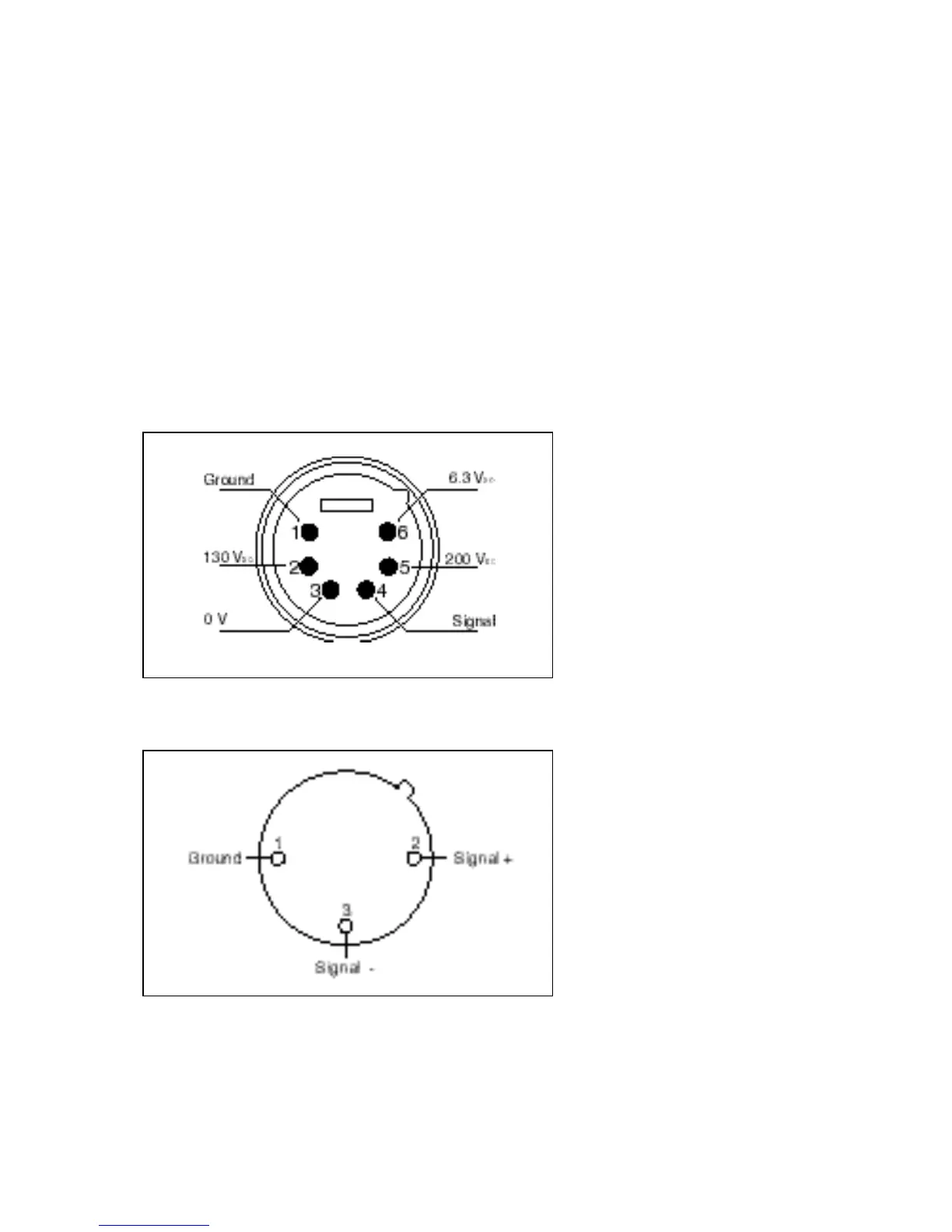

Fig. 1. External view
of the output socket
of the preamplifiers
Types MMP4000-S
and MMP4000-T.
Fig. 2. External view
of the output socket
of the preamplifier
Type MMP4000-SP.
