DPS MY-PS-3 - Model Name Indication Guide

32

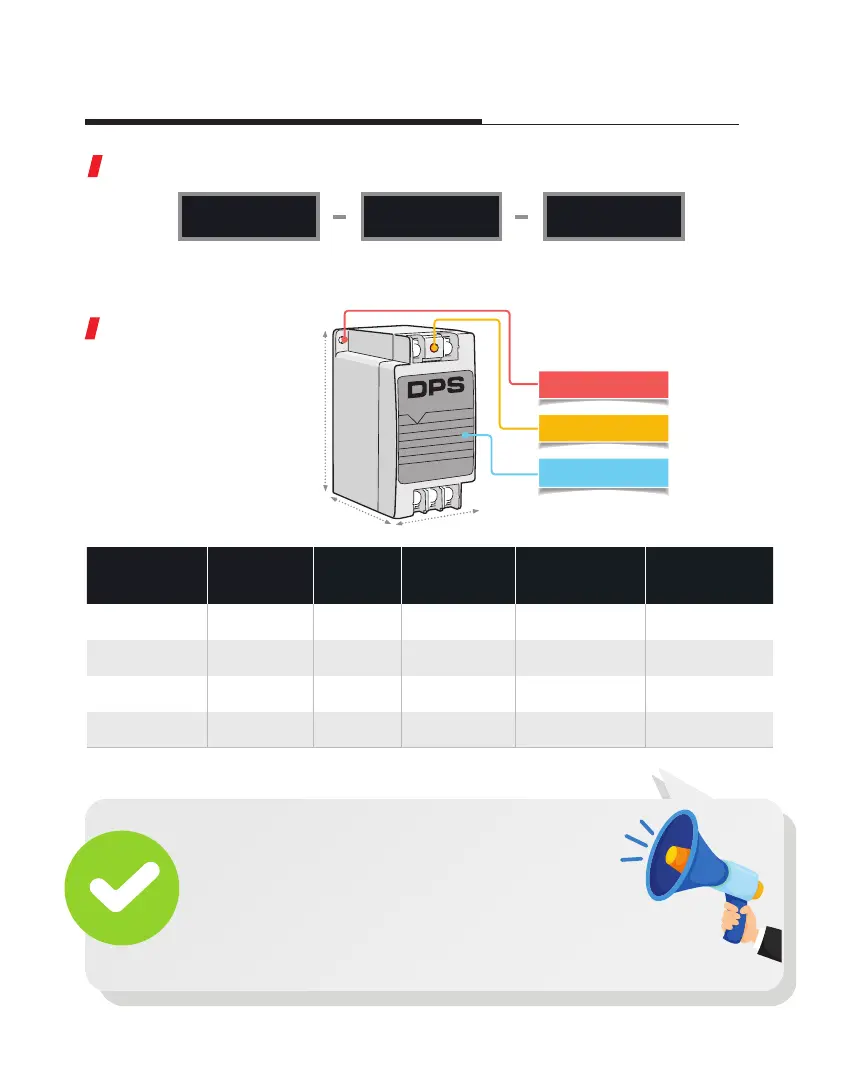

APPEARANCE AND
DIMENSION
CHECKING MODEL NAME
Model Name Indication Guide
Holes for installation
Power Lamp
Rated Capacity
H
D
W
Myung Youn Phase Shifter HP
MY PS 3
Model
Rated Capacity
(HP)
Current
(A)
Frequency
(Hz)
Dimension
(W×H×D)
Holes for
installation (Ø)
MY - PS - 3 3 9 50/60 80×154×117 5
MY - PS - 5 5 15 50/60 80×154×117 5
MY - PS - 7.5 7.5 23 50/60 100×182×125 5
MY - PS - 10 10 30 50/60 100×182×125 5
For 3 phase 220V motor only
※
Product specications are subject to change without prior notice purpose to improve the quality.
Helpful
Tips
If you use a DPS that is one step above your motor capacity,
you can get 90 to 95% efficiency.
(65 to 70% efficiency when using DPS with the same capacity)
ex) In the case of 3HP motor :
If you use MY-PS-3 model :
65 to 70% efciency
If you use MY-PS-5 model :
90 to 95% efciency
