DPS MY-PS-3 - Example of a Connection; Correct Connection between Magnetic Contactor and DPS

6
Example of a connection
between a DPS and a magnetic contactor
76
Please check if the connection
location is the same according
to the color of the control wires.
The magnetic contactor must be for 3 phase 220V.
The control wires of a magnetic contactor must be
connected to “U”, “W” positions purpose to work
well motor.
■
■

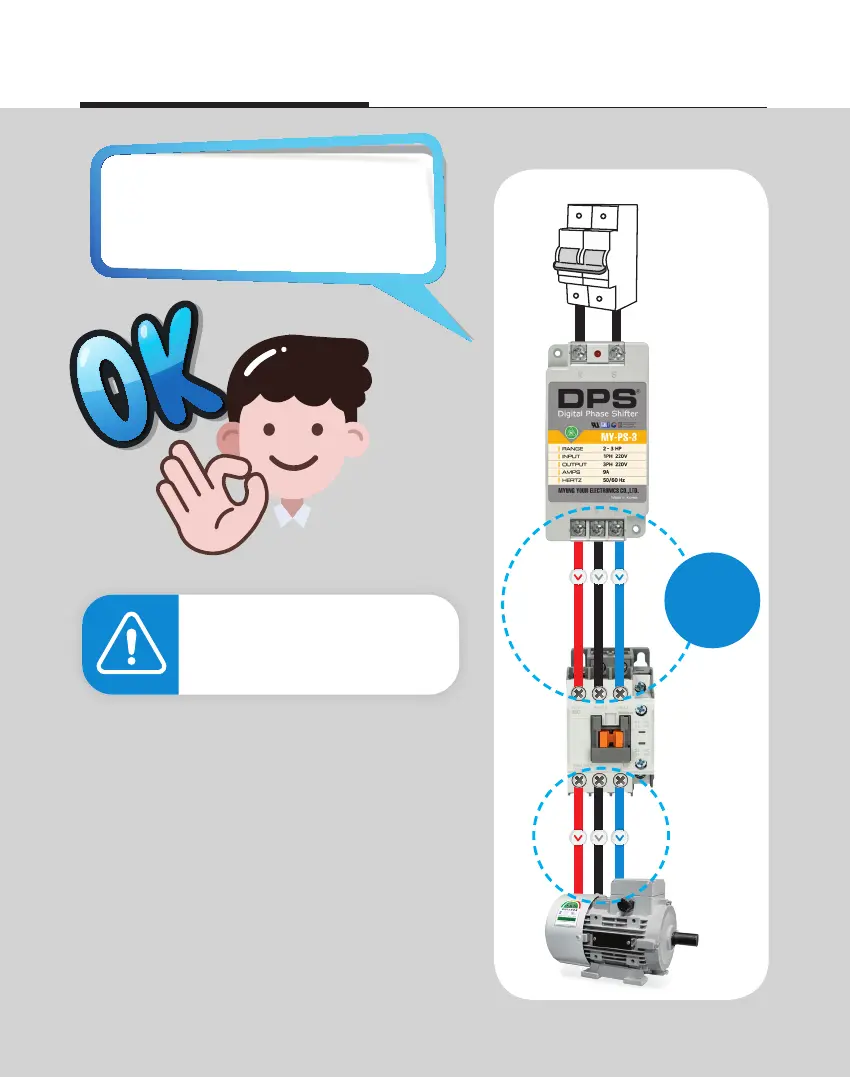

Case of Correct Connection
between a magnetic contactor
(3phase 220V)
and a DPS
U V W
Circuit
Breaker
Magnetic
contactor
(3phase 220V)
Motor
YES
