DR K10 RAPIDFIRE User Manual

CONTACT US AT www.DRpower.com 13
Greasing the Rack
Note: It is important to grease the Rack every 5 hours for proper operation.
Tools and Supplies needed:
 General Purpose Grease
 Clean Rags
 Phillips Screwdriver

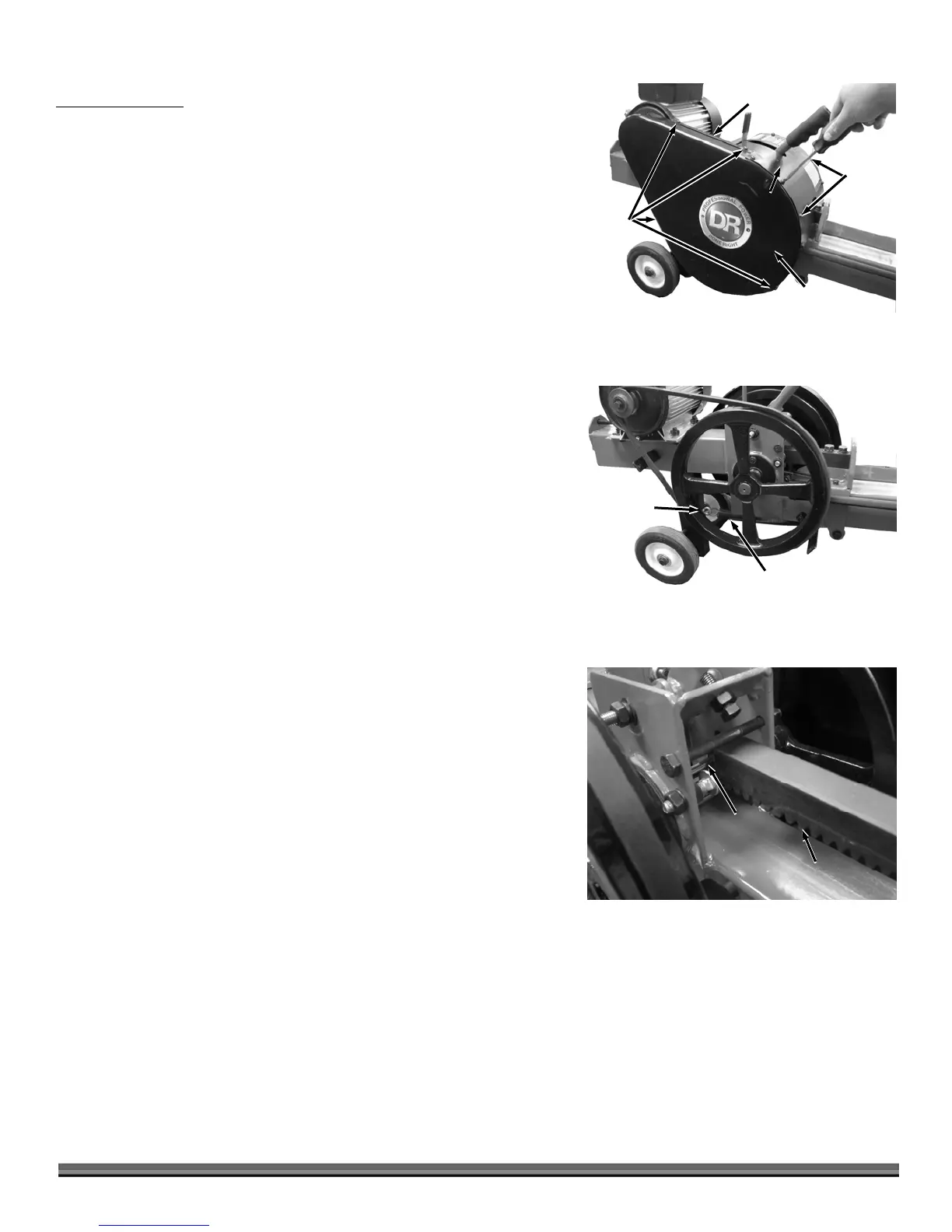

1. Use a Phillips Screwdriver to remove the 11 Guard Screws, Washers and
Lock Washers that secure the Center Guard (Figure 12).
2. Remove the Guard Screws, Washers and Lock Washers that secure the
Flywheel and Belt Guard.
3. Disconnect the Return Spring from the Eye Bolt on the Frame (Figure 13).
4. Pull the Rack out and grease the Rack Teeth, top side of the Rack and the
Pinion (Figure 14).
5. Push the Rack back in and reinstall the Return Spring to the Eye Bolt when
finished greasing.
6. Reinstall the Guards.
Figure 14
Pinion
Rack Teeth
Figure 13
Return Spring
Eye Bolt
Figure 12
Guard
Screws
Guard
Screws
Center
Guard
Flywheel
Guard
Belt
Guard
