DR Premier User Manual

10 DR
®
LEAF and LAWN VACUUM
Assembly Parts Identification
Compare the contents of the Parts Boxes and Hardware Packages with the Parts Supplied lists and Figures 3 thru 8 below. If there
are any questions contact us at www.DRpower.com or call 1-800-DR-OWNER (376-9637).
There may be hardware left over when assembly is finished. This is sometimes expected in the process of filling hardware bags at
the factory.

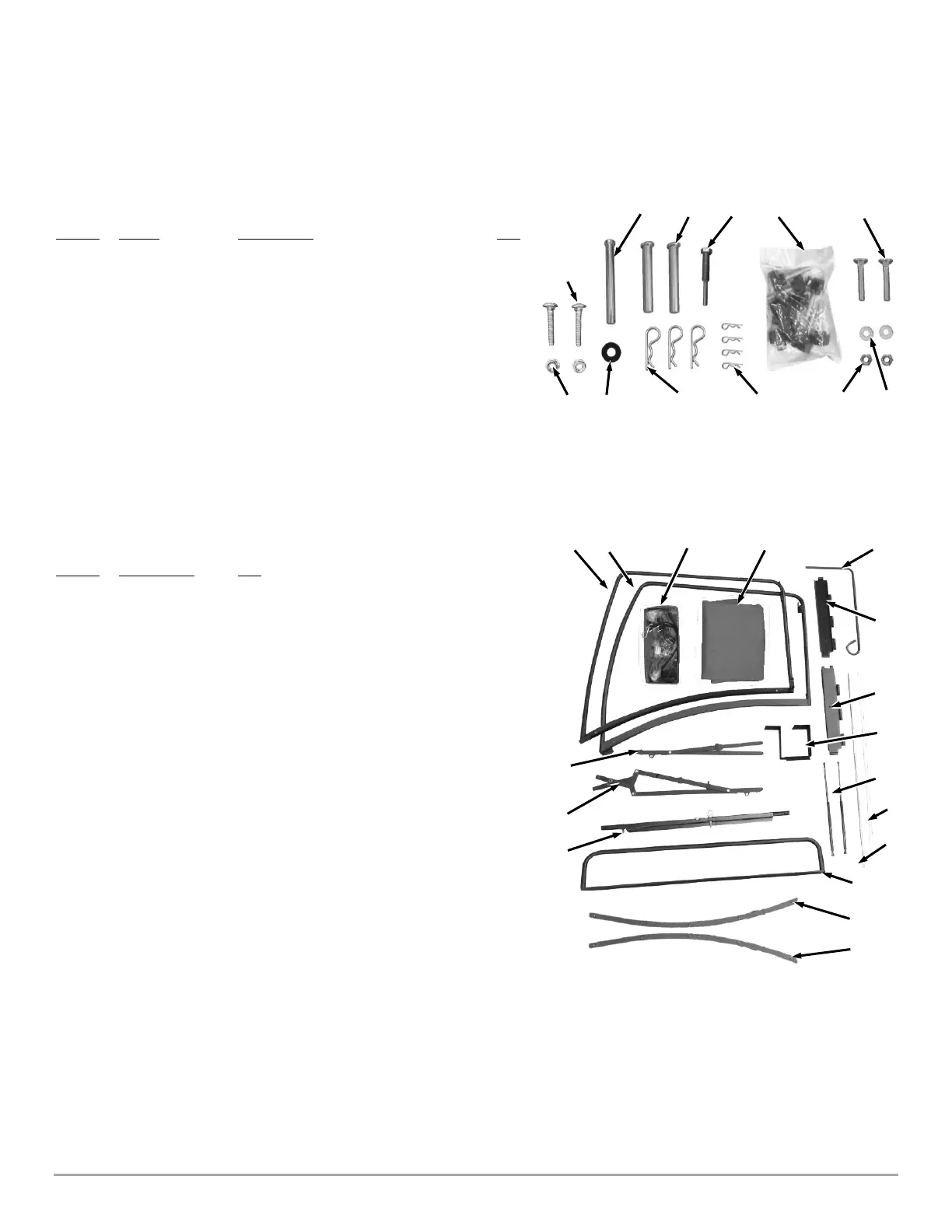

Product Package Hardware (Figure 3):
Item # Part # Description Qty
1 ............. A0000253563 ....... Pin, Clevis, 1/2" X 4.5", ZP ....................... 1
2 ............. 211541 ................. Pin, Clevis, 1/2" X 3.5", ZP ....................... 2
3 ............. 350371 ................. Bolt, Hex, 7/16-20, Impeller Tool ............. 1
4 ............. 350291 ................. Knob Set, 5/16-18 W/Lock, 17 Pack ......... 1
5 ............. 350271 ................. Bolt, C-Head, 5/16-18 X 1.75″, ZP ............ 2
6 ............. 112411 ................. Washer-Flat 5/16 USS ............................... 2
7 ............. 110761 ................. Nut-Lock Nylon 5/16-18 ........................... 2
8 ............. 337871 ................. Pin, Cotter, Hair, 1/4-3/8 .......................... 4
9 ............. 160031 ................. Pin, Hitch Clip 1/2" ................................... 3
10 ........... 189671 ................. Washer, Flat, 1/2", Rubber ....................... 1
11 ........... 350331 ................. Bolt, C-Head, 5/16-18 X 1.75”, ZP ............ 2
12 ........... 106681 ................. Nut, Flange 5/16-18 .................................. 2
*11, 12 only included in PRO/ PRO XL models*
Large Parts Box Contents (Figure 4):
Item # Description Qty
1 ............. Tube Frame Assembly, LH………………………………... ............... 1
2 ............. Tube Frame Assembly, RH………………………………... ............... 1
3 ............. Small Parts Box………………………………………………... ............... 1
4 ............. Enclosure, Fabric ………………………………. ............................... 1
5 ............. Rod, Support, Hose…………………………………………. ................ 1
6 ............. Hinge, Split, Frame Collector, RH……………………… ............... 1
7 ............. Hinge, Split, Frame Collector, LH……………...………. ............... 1
8* ........... Bracket, Foot Assist……………………………...…………... .............. 1
9 ............. Gas Spring, 500-300 mm, 150 lb………………………... .............. 2
10 ........... Batten, FRP…………………….…………...……. ............................... 1
11 ........... Pin, Hinge……………….……….……….……… ................................ 1
12 ........... Handle, Tube Frame ………………….……… ................................ 1
13 ........... Hinge Tube Assembly…………….…………. ................................ 1
14 ........... Outer Link Assembly, Bottom Rear ……... .............................. 1
15 ........... Inner Link Assembly, Top Rear ……………………………………... . 1
16 ........... Retainer, Enclosure LH……………………………………... ............... 1
17 ........... Retainer, Enclosure RH……………………………………... .............. 1
*8, only included in PRO/PRO XL models*
1
Figure 3
2
4
5
6
3
10
7
9
8
11
12
Figure 4
12
10
14
3
4
5
1
6
2
7
8
9
11
15
13
16
17
