16 DR
®
LEAF and LAWN VACUUM

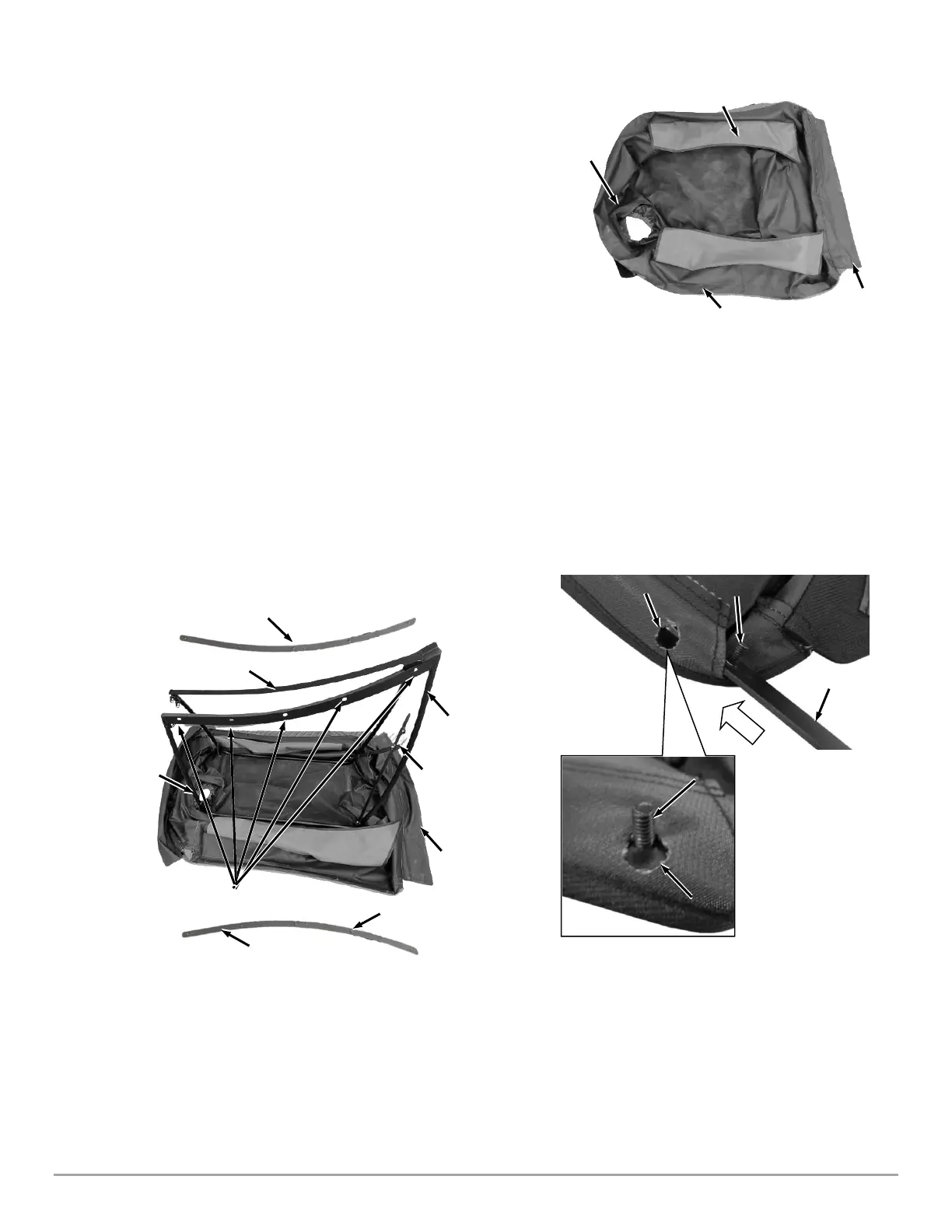

Installing the Side Retainers
1. Lay out the Enclosure onto a clean flat surface so the inside (black) is
facing up (Figure 27). Take note of the Sleeve location at the front of
the Enclosure.
2. Fold the side flaps so you can see the 5 holes in each of the side
pockets. Take note of the front pocket. It also has holes, but they are
facing down and are not visible (Figure 27).
3. Set the Tube Frame Assembly into the Enclosure with the Inner Link
positioned toward the Rear Flap (opposite the Front Sleeve) (Figure
28).
Note: The Left Hand and Right Hand Side Retainers are very similar and their
orientation needs to be checked prior to inserting into the canvas
enclosure.
4. Check that the left hand and right hand side retainers are oriented correctly by holding up one retainer at a time. With the
retainer on the outside, feed the studs through the Tube Frame Slots. The parts will be oriented correctly if all 5 studs feed
through the Slots without issue. Once you have confirmed both retainers are in the correct orientation, lay them down
(keeping its same orientation) next to the Enclosure Pocket with the studs pointing up (Figure 28).
5. Insert the front end of the Side Retainer into the rear end of the pocket so when installed the Side Retainer will be in the
same orientation shown in the photo. It works best to keep the studs tilted sideways until they all align with the Enclosure
holes, then twist the Retainer so the studs go into the holes (Figure 29).
6. Repeat steps 4 and 5 for the other Side Retainer.
