Dräger Interlock 7000 Installation Instructions

26 Dräger Interlock 5000/7000
Installation

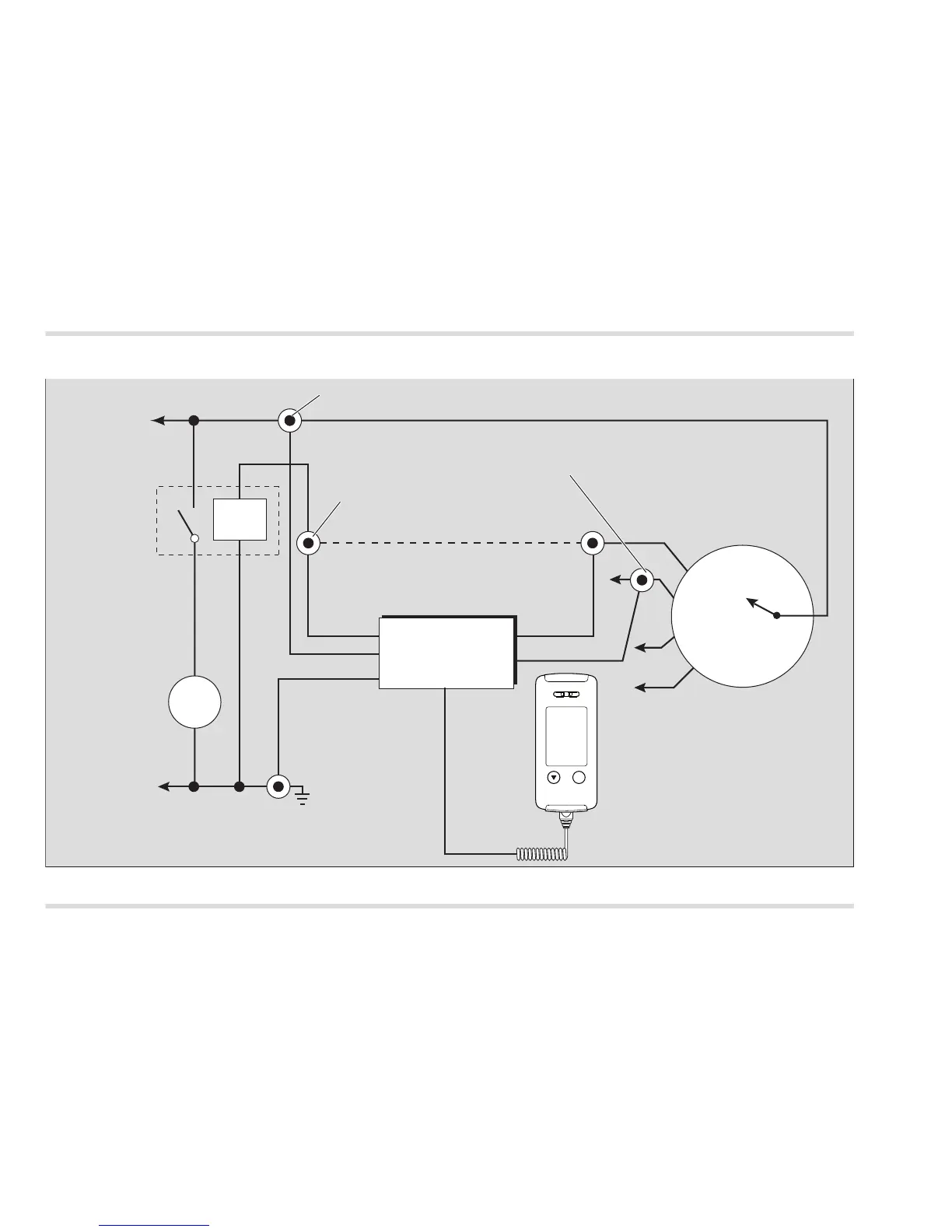

3.4.3 Circuit diagram
00233352_en.ep
s
Ignition switch
Starter motor
Starter relay
Break
M
V +
V -
Starter relay
(Terminal 50)
Ignition
(Terminal +15, Position 2)
Accessories
Off
Plus
Power
brown grey
red
black
blue
Ground termination
(Terminal 31)
®
Dräger
Interlock 5000/7000
Control box
®
Dräger Interlock 5000/7000
Handset
Starter relay termination
Ignition termination
Positive supply termination (Terminal 30)
OK
M
