System overview
18 Instructions for use Oxylog 3000 plus SW 1.n

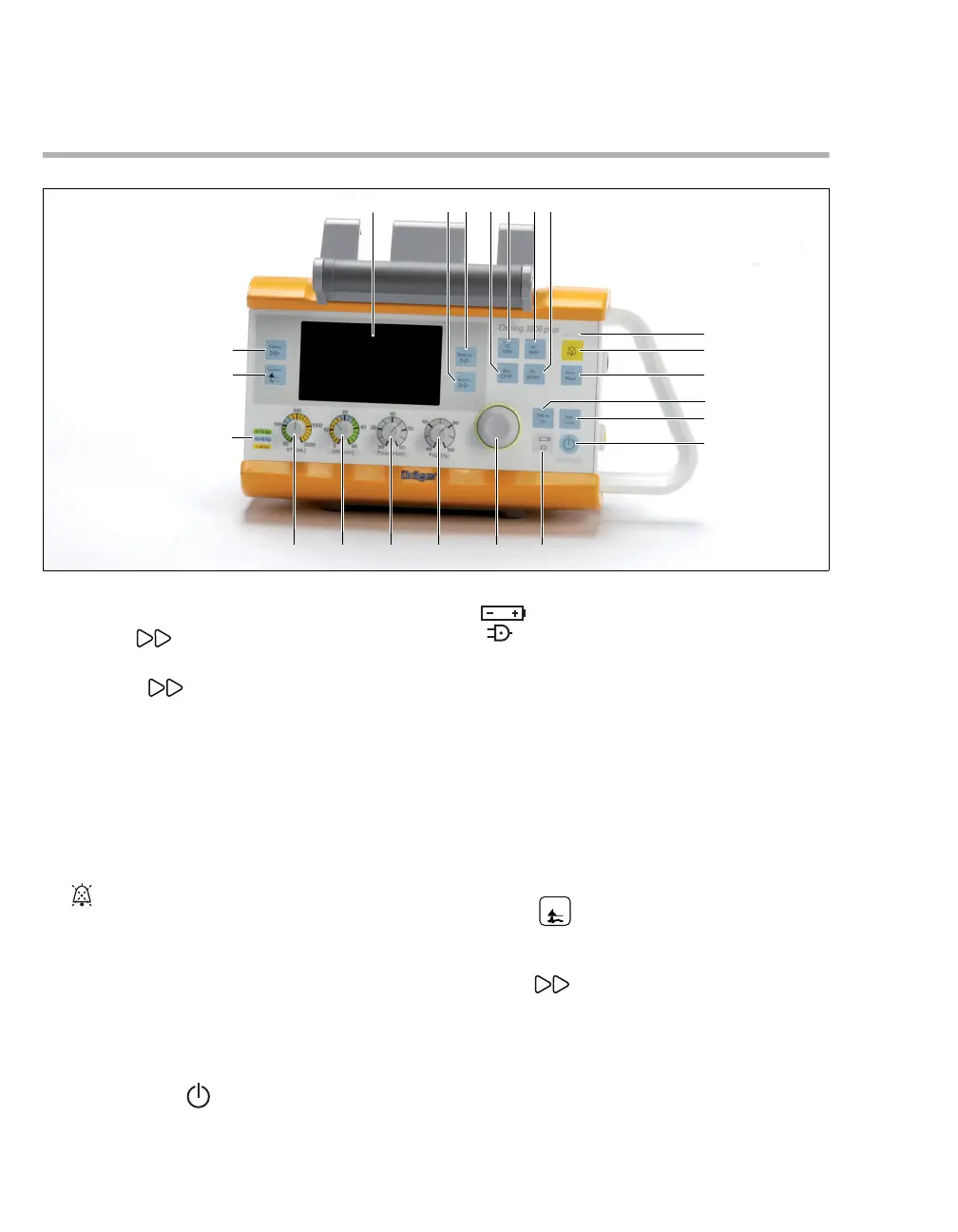

Basic unit with all options
A Screen with screen pages for the specific
application
B Alarms
key for setting and displaying
alarm limits
C Settings key for setting further
ventilation parameters
D Key for setting the ventilation mode Spn-CPAP
E Key for setting the ventilation mode
VC-CMV / VC-AC
F Key for setting the ventilation mode VC-SIMV
G Key for setting the ventilation mode PC-BIPAP
H Red and yellow LEDs as alarm indicators
I key to silence the acoustic alarm signal for
2 minutes
J Alarm Reset key for acknowledging alarm
messages
K O
2 inhalation key for O2 inhalation or 100 % O2
key for 100 % O2 application (factory set)
L Insp. hold key for initiating a manual inspiration
or for extending the current inspiratory time
M Start / Standby key
N Display symbols for the power supply
Charge status of the internal battery
External power supply
O Rotary knob for making selections, changing
and confirming settings
P Control knob for setting the O
2 concentration
FiO
2
Q Control knob for setting the maximum
inspiratory pressure Pmax
R Control knob for setting the respiratory rate RR
S Control knob for setting the tidal volume VT
T Explanation of color codes for quick pre-setting
of RR and VT
U Curves key for switching between the
pressure, flow and CO
2 (optional) curves in
small and large view
V Values key for switching between screen
pages in the measured values window
Front
Curves
