Operating concept
32 Instructions for use Oxylog 3000 plus SW 1.n

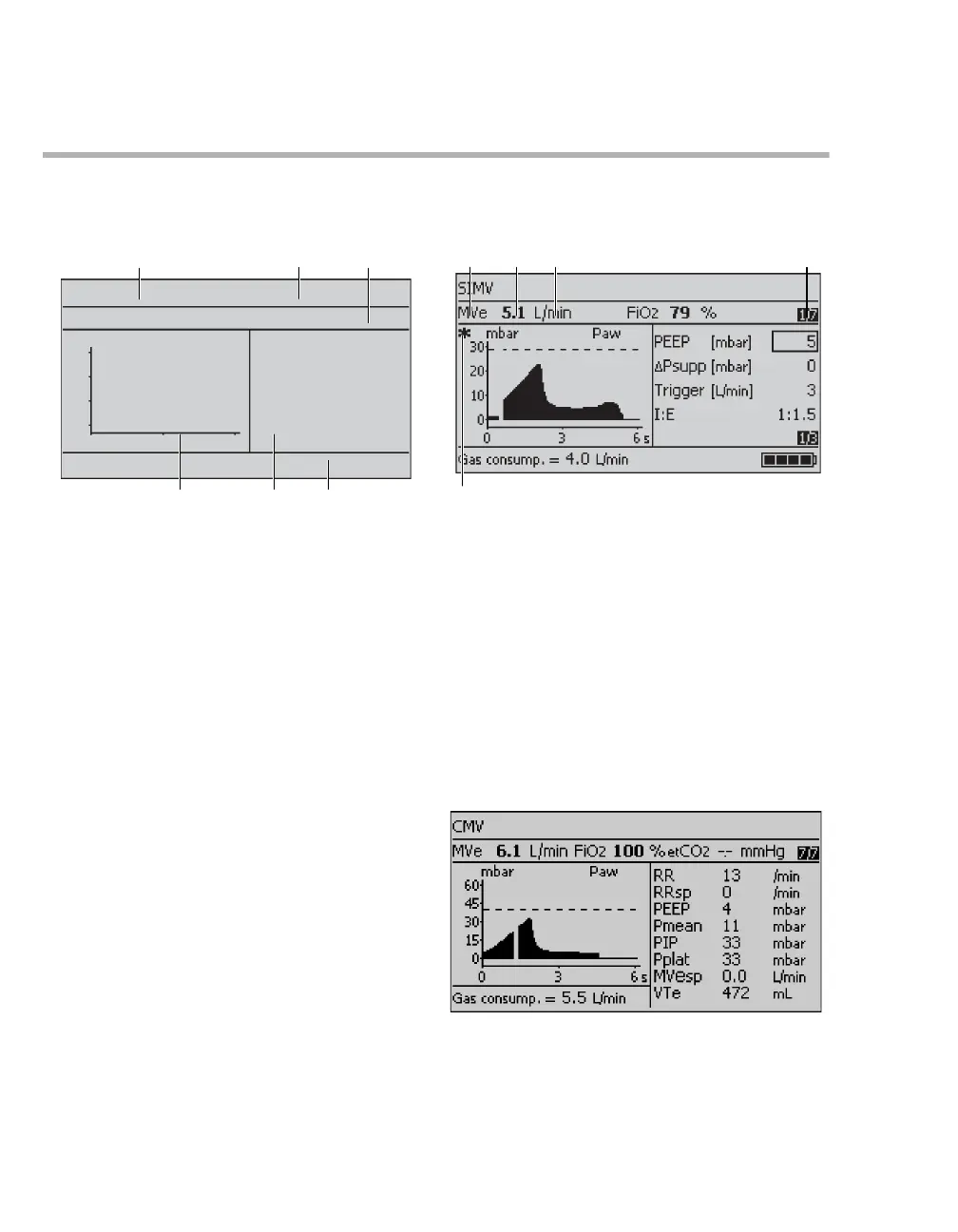

Screen structure
General window structure
A Ventilation mode field
B Status and alarm messages field
C Measured values window
D Curves window
D and E are combined for large curve
screens.
E Window for settings or alarms
F Information window. For more information on
the content, refer to "Messages in the
information field" on page 116.
Measured values window
A Parameter measured
B Measured value
C Unit of measurement
D Measured values (1st page of 7 available
pages)
If the CO
2 option is not selected:
1st page of 6 available pages
E Trigger indicator.
The last page shows an overview of all measured
values.
05437171
0583717115637171
