Installing

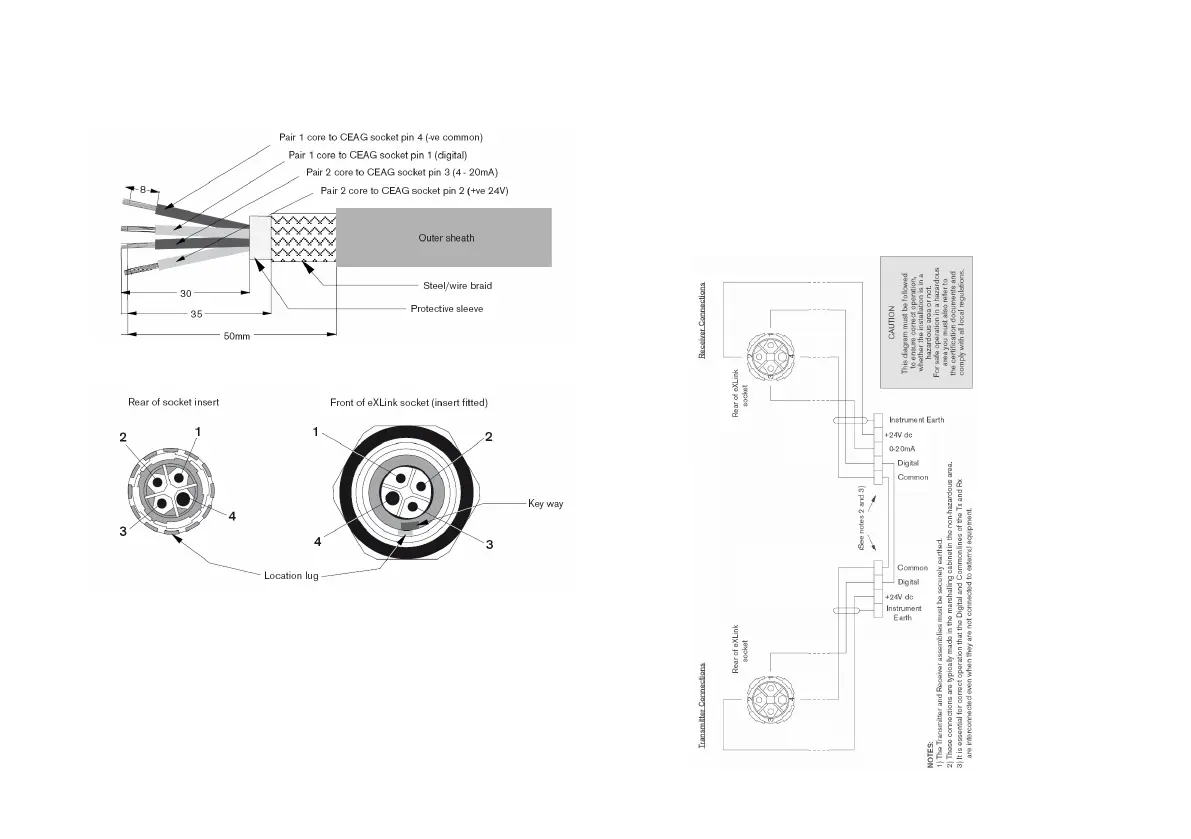

Figure 6: Cable Preparation and Wiring
The socket insert is now ready to be inserted into the socket sleeve. Ensure that
the large contact pin (4) is in the 8 o’clock position in relation to the location lug
(as indicated in g. 6 front of eXLink socket). Carefully push the socket insert into
the sleeve and ensure that the location lug secures correctly. When fully tted,
the insert should protrude by approximately 13mm and although there is a little
movement when attempting to turn the socket insert, it should not rotate. If the
insert does rotate then it is not tted correctly and requires adjustment to secure
it into position. Finally secure the remaining components of the socket before
tightening the outer cap nut.
Connecting the plug and socket
Ensuring that the key way is in the correct position, push the socket into the
plug. Turn the connector to the right by approximately 30° and then fully insert
before screwing the coupling of the socket to the plug in order to establish the IP
protection and mechanical protection. Reverse this process in order to disconnect
the plug and socket.
Figure 7: Connection powered individually using CEAG Ex d Connector
