Communication Regard 3900 Modbus Gateway
 RVP 3900

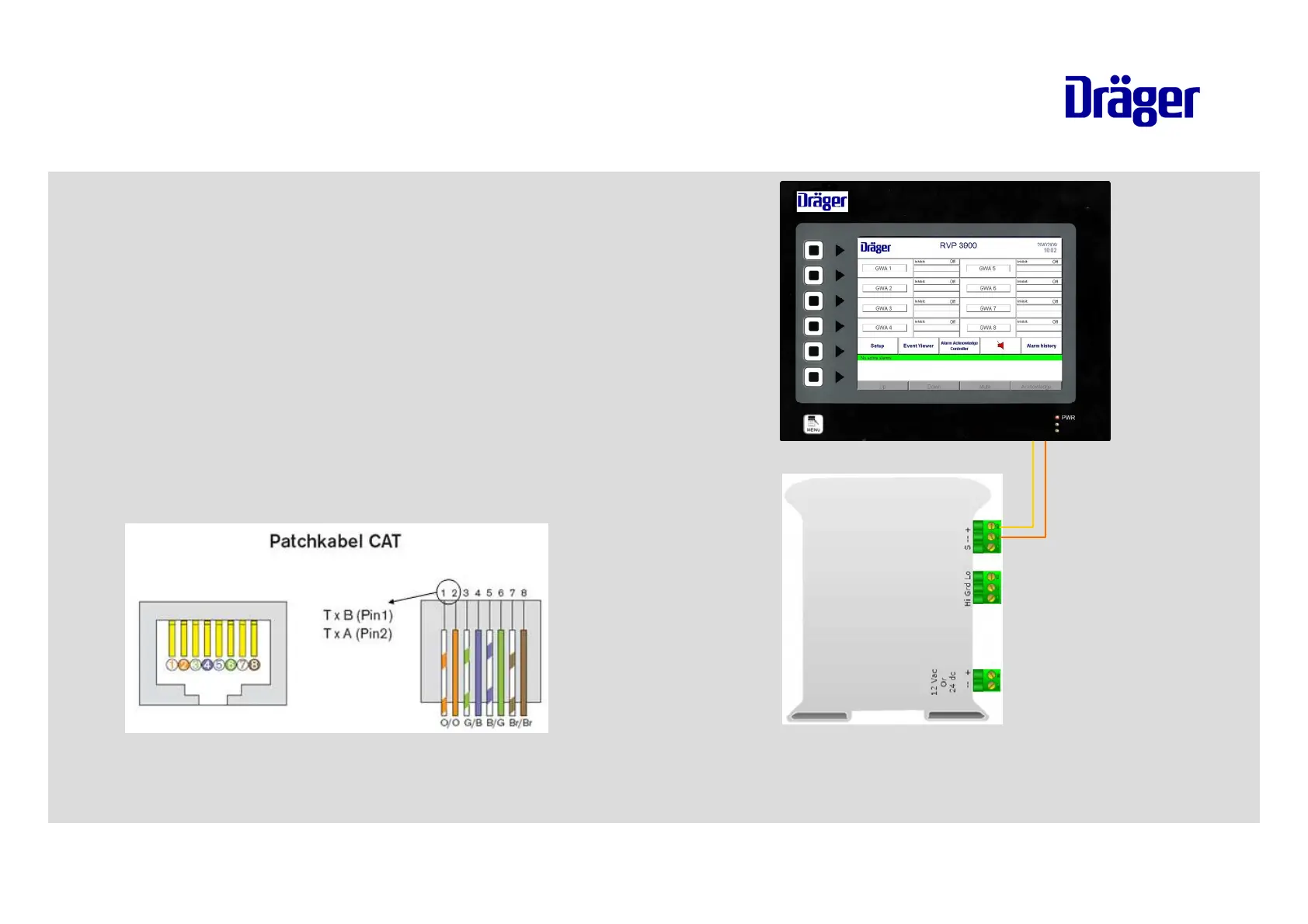

orange/white: RJ45 jack PIN 1 (TxB) → Gateway RS485 "+"
orange: RJ45 jack PIN 2 (TxA) → Gateway RS485 "-"
CAN RS485
Dräger RVP - Communication
RVP 3900
