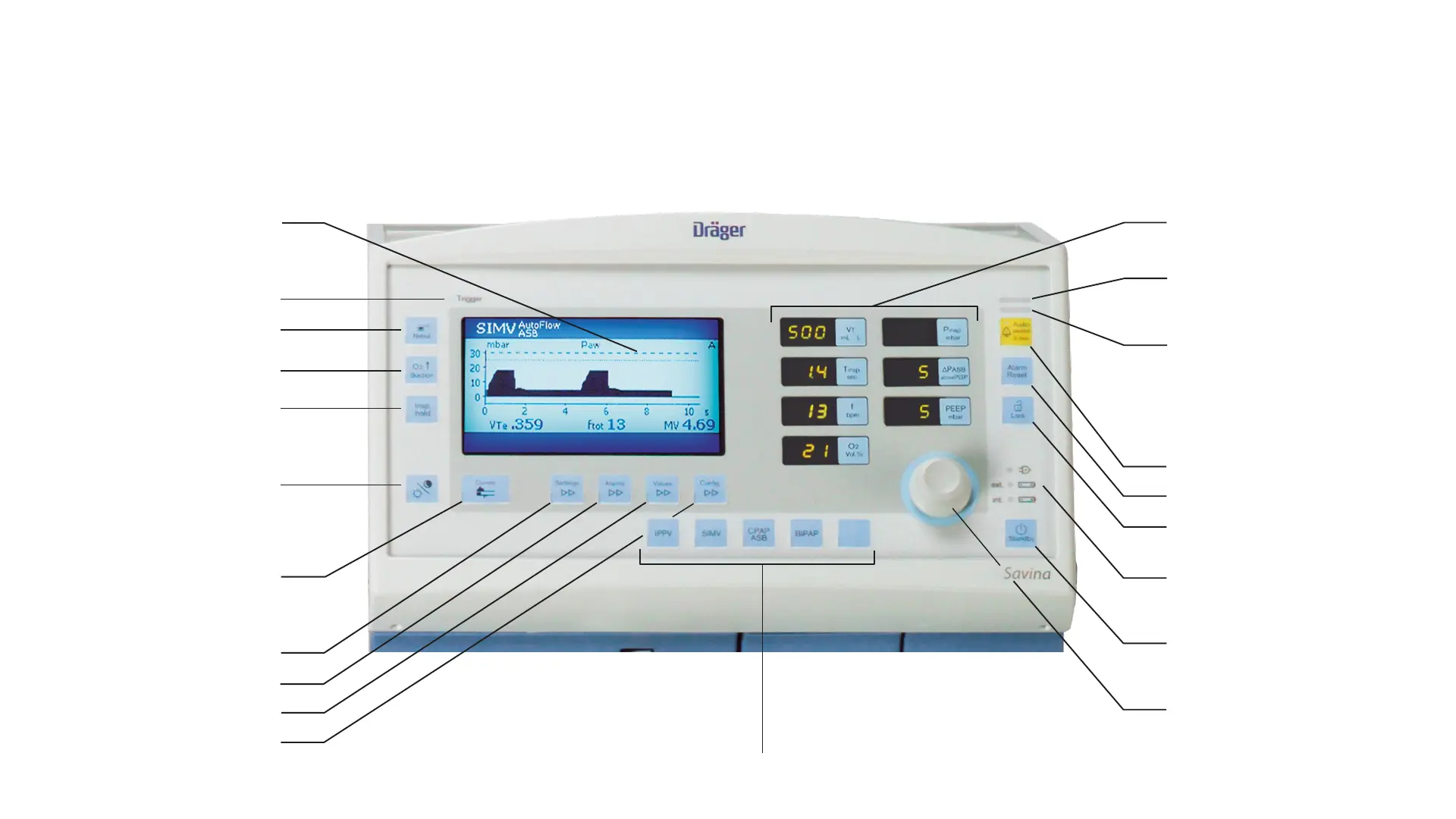

Savina – System overview
Front connections
5
Screen
Keys for ventilation parameters
(with a display of the current values)
Red LED:
− flashes for alarms with high
priority
Yellow LED:
− Flashes for alarms with medium
priority
− Lights up for alarms with low
priority
Audio paused 2 min. key
Alarm Reset key
Lock key
LED indicating the power supply
Standby key
Rotary knob
Keys for ventilation modesConfig. key
Values key
Alarms key
Settings key
Curves key
Key for switching the
screen brightness
between bright/dark
Insp. hold key
O
2
Suction key
Nebul. key
Trigger LED
