Description

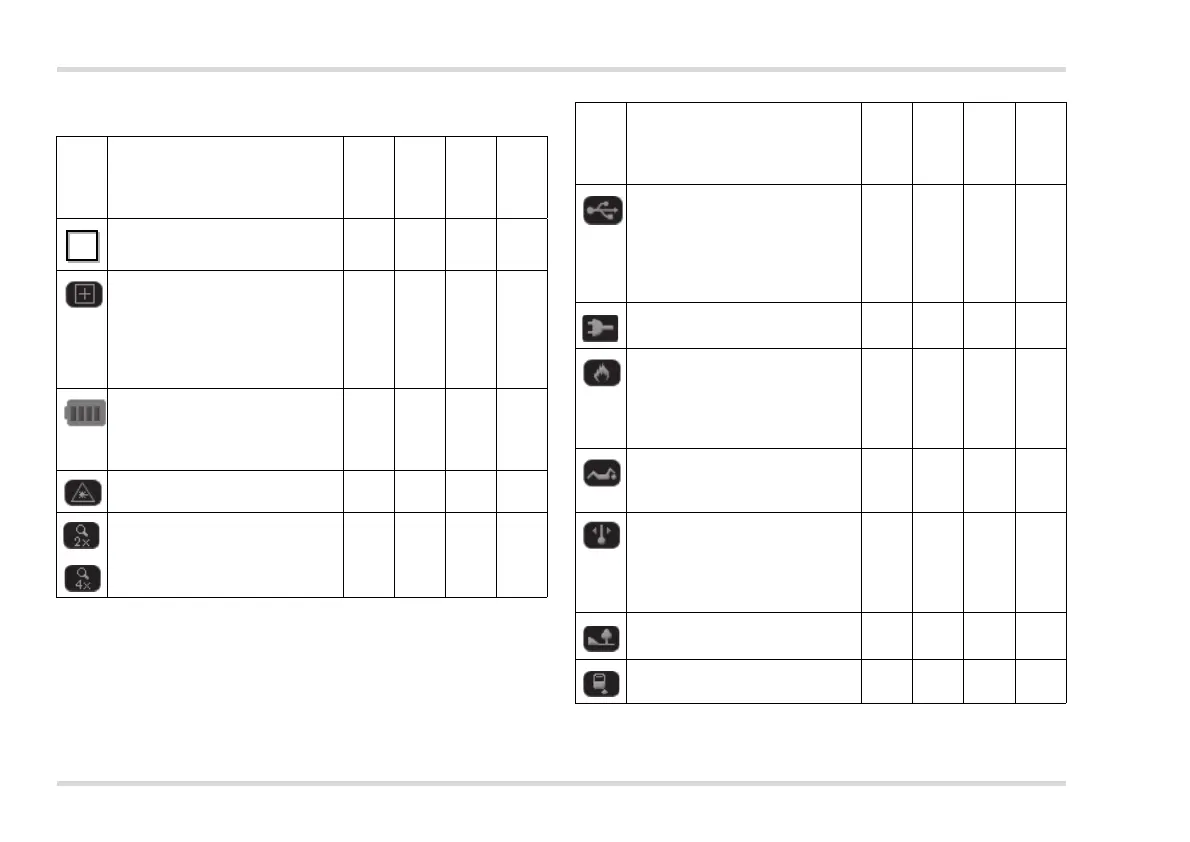

The following symbols may appear in the lower area of the display:
Symbol Meaning UCF 6000 UCF 7000 UCF 8000 UCF 9000
Area in which the temperature is
measured.
XXXX
The camera is in a non-standard
application mode (TI-BASIC
PLUS).
If this symbol is not displayed,
the camera is in standard
application mode (TI-BASIC).
XXX
Battery charge status
The segments indicate the
remaining operating time (see
Chapter 3.2.3 on Page 16).
XXXX
The laser pointer is active. X X X X
These symbols are displayed
when the zoom function is
enabled.
XXX
The camera is connected to a
computer using the USB cable.
The symbol flashes when data
are being prepared for
transmission or are being
transmitted to the computer.
XXXX
The camera is connected to a
stationary power supply.
XXXX
"Fire" application mode
This mode is used for detecting
the source of a fire.
Temperatures of up to 1000 °C
(1832 °F) are displayed.
XXX
"Persons" application mode
Body heat is highlighted in this
mode.
XXX
"Thermal Scan™" application
mode
All temperatures above the
threshold are highlighted in
color.
XXX
"Outdoor" application mode X
"Hazmat" application mode X
Symbol Meaning UCF 6000 UCF 7000 UCF 8000 UCF 9000
