Use
If Test schedulermode is activated:
 If necessary, log user out on the station (see chapter 4.5 on
page 23).
 The preset test is performed according to the configured
time schedule.
Test passed:
 Confirmation is shown on the display.
 The Status LED flashes green.
 If required, select the desired instrument field for additional
information (e.g. test date and performed tests).
 Remove the instrument from the module.
Test passed, with reservations:
This state means that partial tests of the favourite could not be
conducted due to special settings.
 Confirmation is shown on the display.
 The status LED flashes yellow.
 If required, select the desired instrument field for additional
information.
 Remove the instrument from the module.
Test not passed:
 An error message is shown on the display.
 The Status LED flashes red.
 If required, select the desired instrument field for additional
information.
 Identify and rectify the error.
 Repeat the test if necessary.

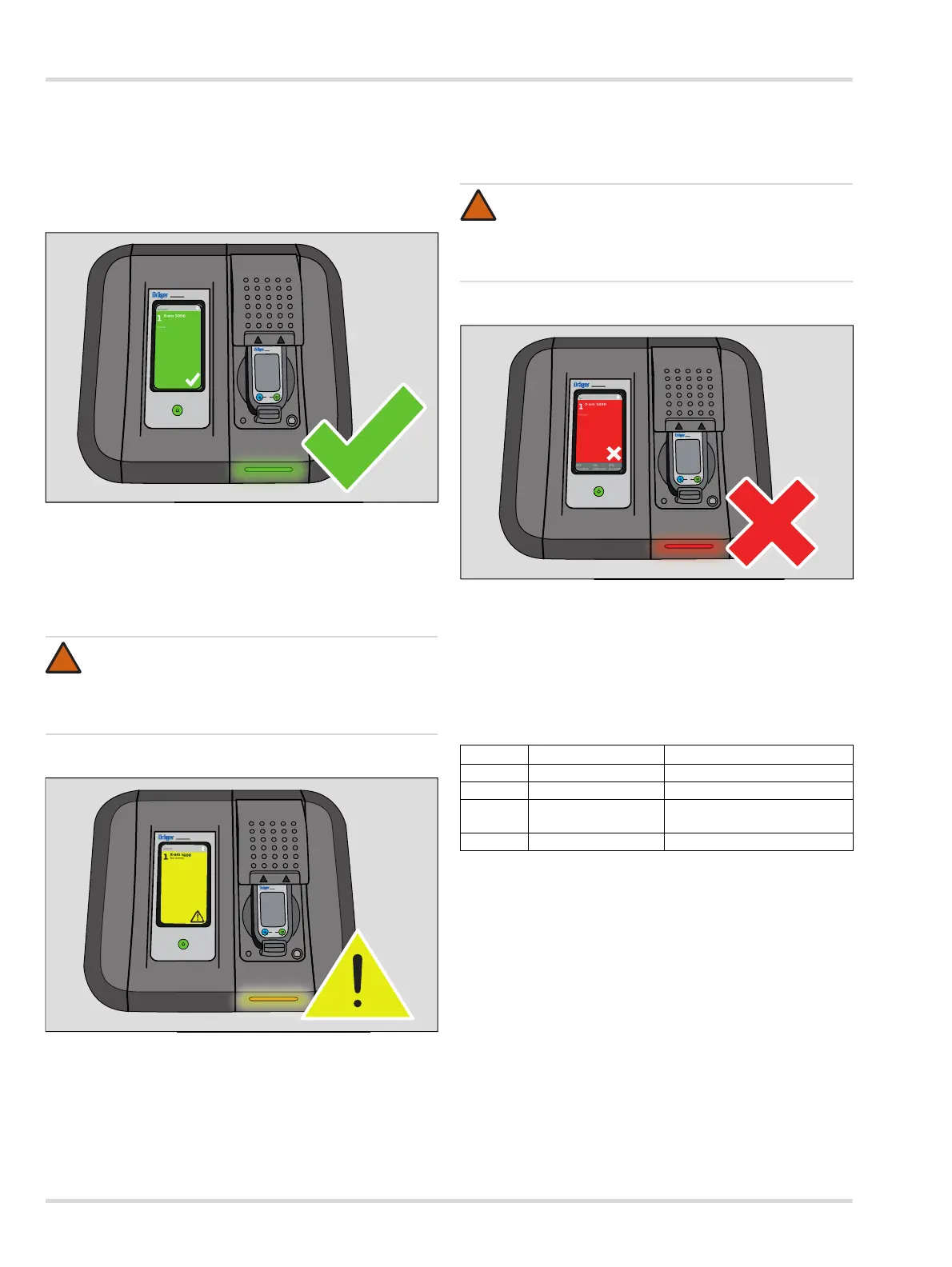

Overview of status LEDs
WARNING
Prior to each use of the gas detector, check whether it
is switched on and in measuring mode after removing
it from the X-dock. Otherwise the user may carry a
device that is switched off!
X-am 5000
X-dock 5300
0
0
01033286.eps
!
X-am 5000
X-dock 5300
0
0
01133286.eps
WARNING
Prior to each use of the gas detector, check whether it
is switched on and in measuring mode after removing
it from the X-dock. Otherwise the user may carry a
device that is switched off!
Colour Status Meaning
blue flashing Process in progress
green flashing Test passed
yellow flashing
Test passed,
with reservations:
red flashing Test failed/cancelled
!
X-am 5000
X-dock 5300
0
0
01133286.eps
