INITIAL SETTINGS
13
Corn Head Clinic Guide - GT

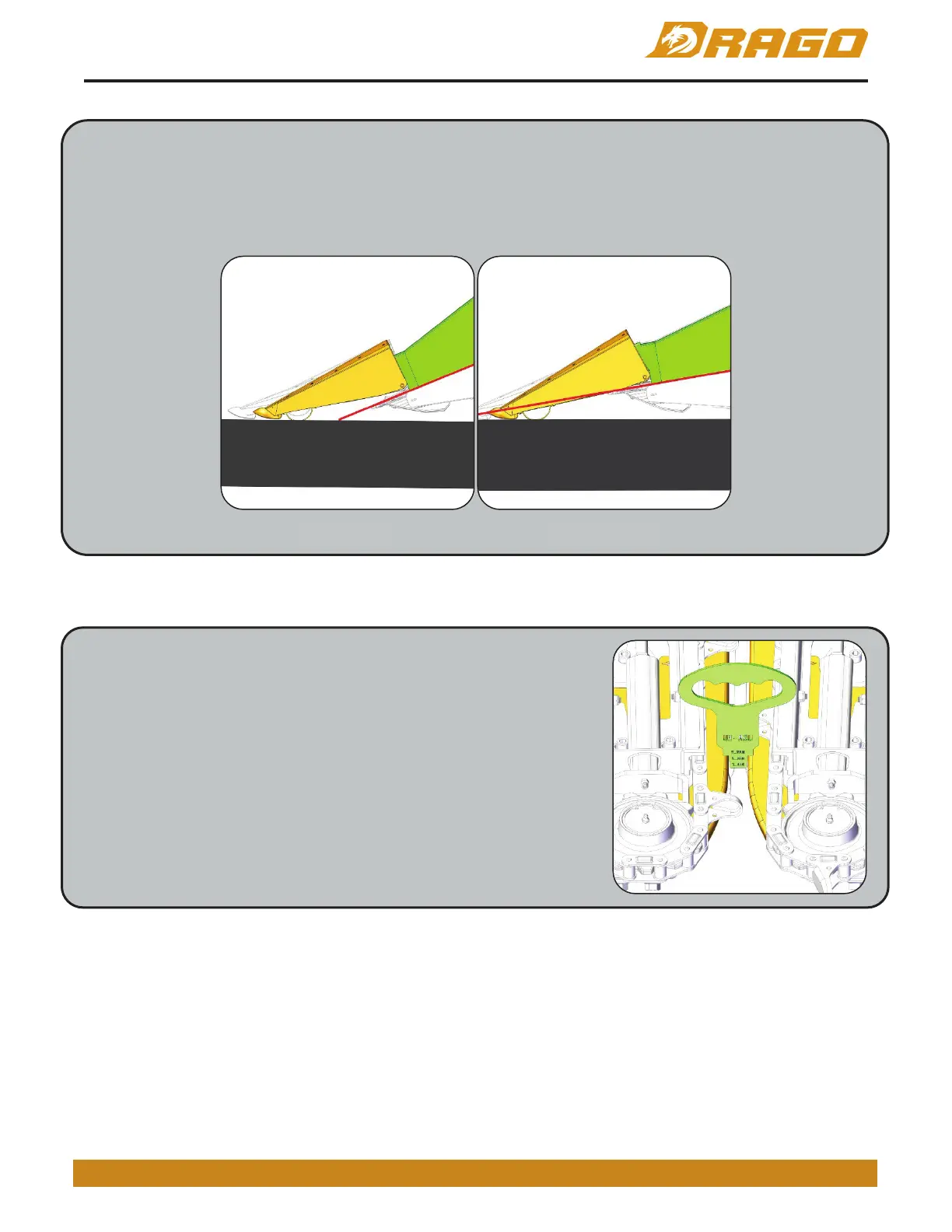

SNOUT ADJUSTMENTS
When positioning the snouts do not place them below the breakover line. This line extends from the bottom
surface of the bonnet forward toward the wear point. If the snouts are below this point and an obstacle is
encountered, they will be more likely to fold under the corn head instead of floating over top of the obstacle.
See Section 6.2 in the Operators Manual for specific adjustment procedures.
DECK PLATE GAP
Check the deck plate gap using tool ST-8 which is available from your
local Drago dealer. Place the tool where the curved portion of the deck
plate stops.
- Insert the tool until the tab marked “MIN_F” is between the deck
plates. The deck plates should not move, or, move very slightly
when the tool is inserted.
- Insert the tool to the tab marked “MAX_F” is between the deck
plates. The deck plates should spread to the maximum setting
and should not be able to be opened further.
If adjustment is required see Section 6.6 in the Operators Manual.
