Channels Tab

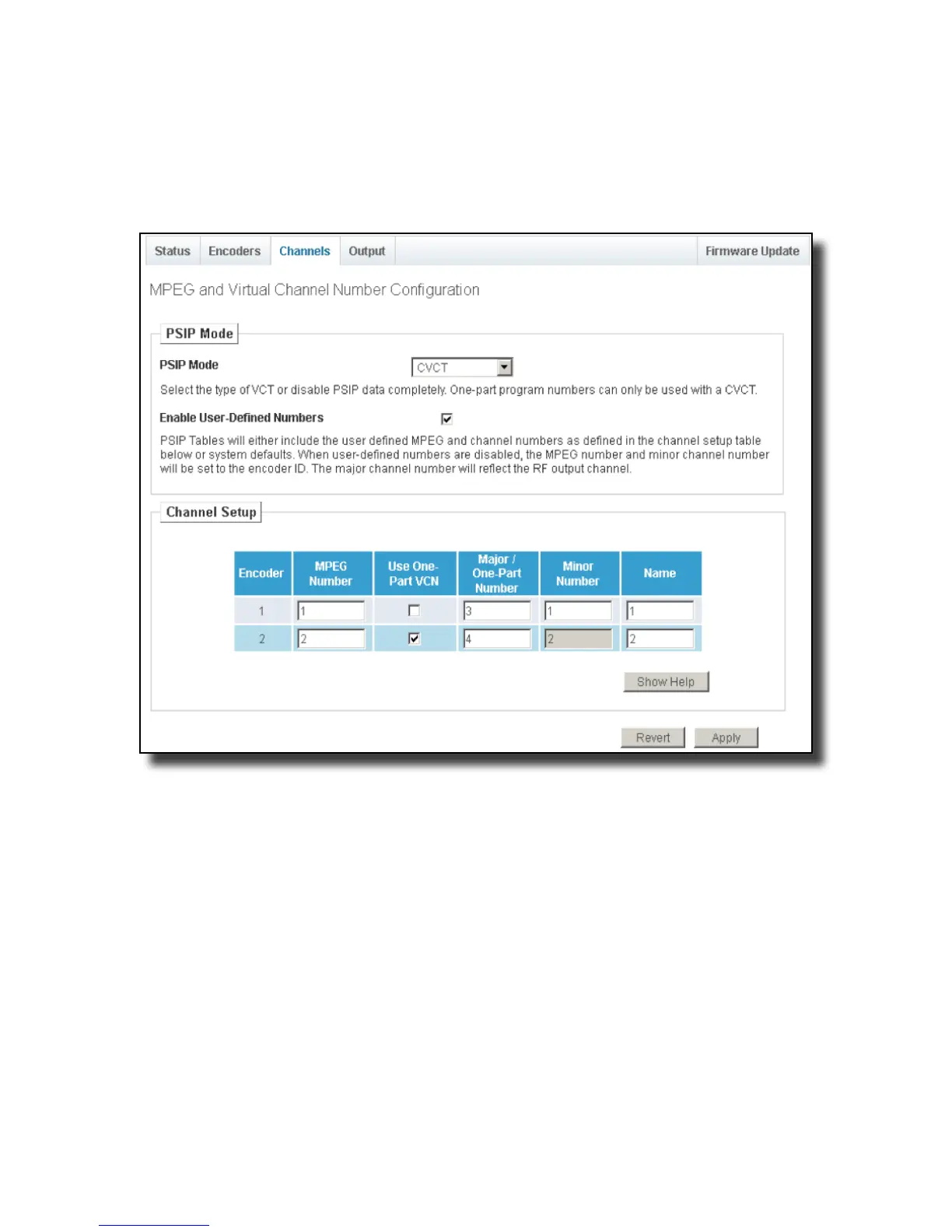

The Channels tab provides an interface to configure the virtual channel mappings for this encoder host. If PSIP is
enabled, this page will display a screen that looks as shown below; for each encoder output, the MPEG program number
can be modified, along with the Major and Minor channel numbers. If one-part virtual channel numbers are desired, the
PSIP Mode must be set to CVCT and the Minor number for each channel should be set to 0.
