8. SETTING THE STAPLER/NAILER
FIG.1
FIG.3
FIG.2
NOTE: Remove the plug from the socket before
carrying out adjustment, servicing or
maintenance.

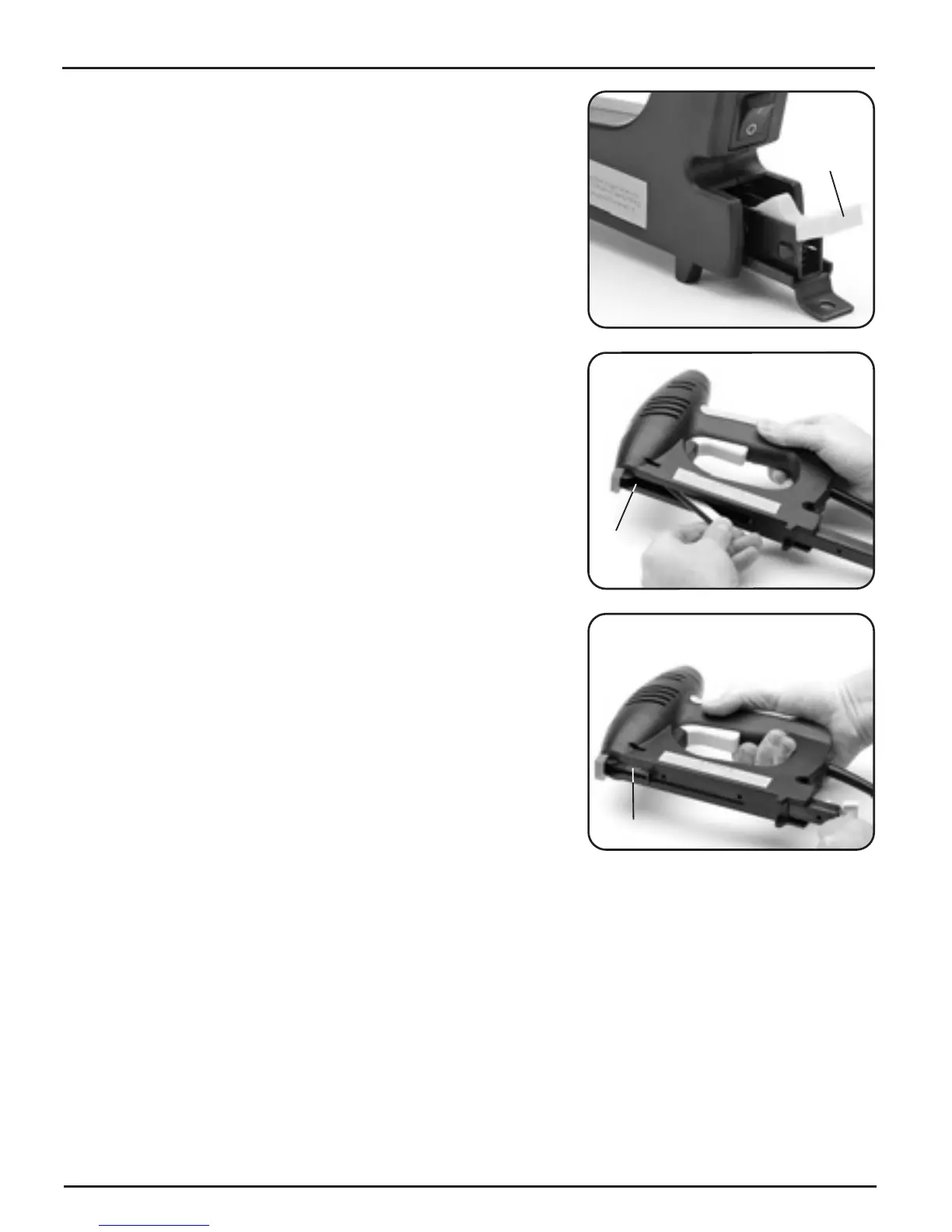

8.1 LOADING STAPLES AND NAILS -
FIGS. 1 - 3
At the rear of the magazine is the magazine lock
. To release it, press the lever down and pull.
The magazine will accept 6mm staples up to
14mm.
Load the line of staples onto the chamber .
Push the magazine back and lock in place.
The magazine will accept 10mm 'T' nails up to
15mm.
Load the line of nails into the slot against
one side of the chamber.
Do not load on both sides as this will cause the
product to malfunction.
Push the magazine back and lock in place.
