Draper FlexShade - Direct Mounting to Ceiling or Wall

Section 7 - Components, Motors and Controls

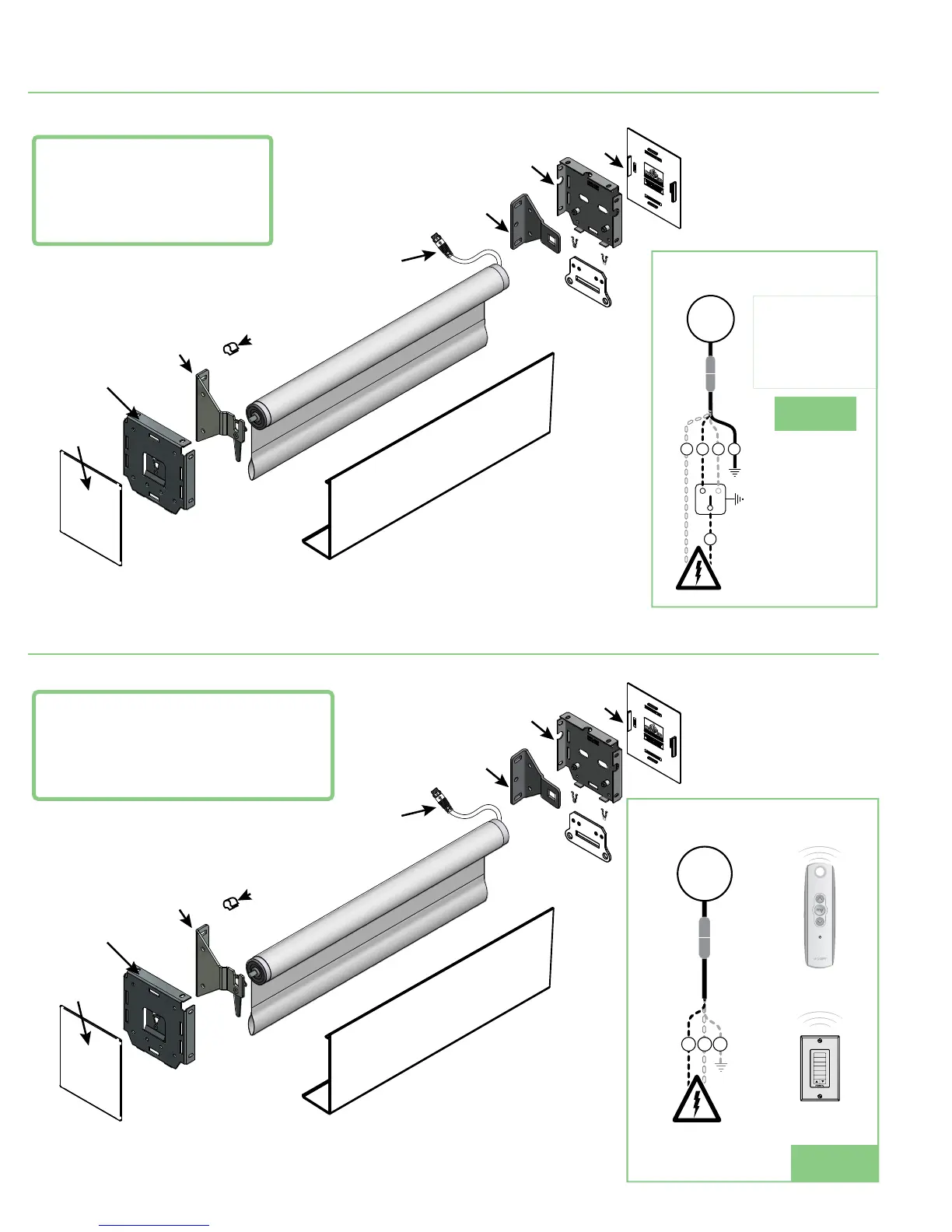

Motorized FlexShade
®
with
Sonesse or Sonesse Ultra
120VAC Operator
Fascia
Endcap
Cover (R)
Brackets
Only (L)
Brackets
Only (R)
Endcap (R)
for Fascia
Endcap (L)
for Fascia
Endcap
Cover (L)
M12
Cable
Retainer
Clip
Dashed Wiring
by Electrician
NOTE: Test shade operation
If shade direction does not
correspond with the switch
orientation, turn power back
off and switch the red and black
wires from the motor to the switch.
Do not wire motors in parallel without
written permission from Draper.
Controls & System Overview
Sonesse 120VAC Motors
W B R G
B
Control
Switch
Single Gang
Box (by others)
120V
MOTOR
110-120V Line
M12
Connector
Dashed Wiring
by Electrician
Controls & System Overview
Sonesse RTS 120VAC Motors
M12 Connector
B W G
RTS
MOTOR
120V
110-120V Line
Deco Flex
Wireless Keypad
Telis 1
RF Remote
STOP
Motorized FlexShade
®
with
Sonesse RTS or Sonesse Ultra RTS
120VAC Operator
Fascia
Endcap
Cover (R)
Brackets
Only (L)
Brackets
Only (R)
Endcap (R)
for Fascia
Endcap (L)
for Fascia
Endcap
Cover (L)
M12
Cable
Retainer
Clip
page 6 of 8
Motorized FlexShade
®
