Draper Foundation - Section 12 - Attaching Trim Brackets; Installing Top Trim Brackets; Installing Top Trim Support Brackets; Installing Side Trim Brackets

page 22 of 28
Foundation
™
for LED Panels

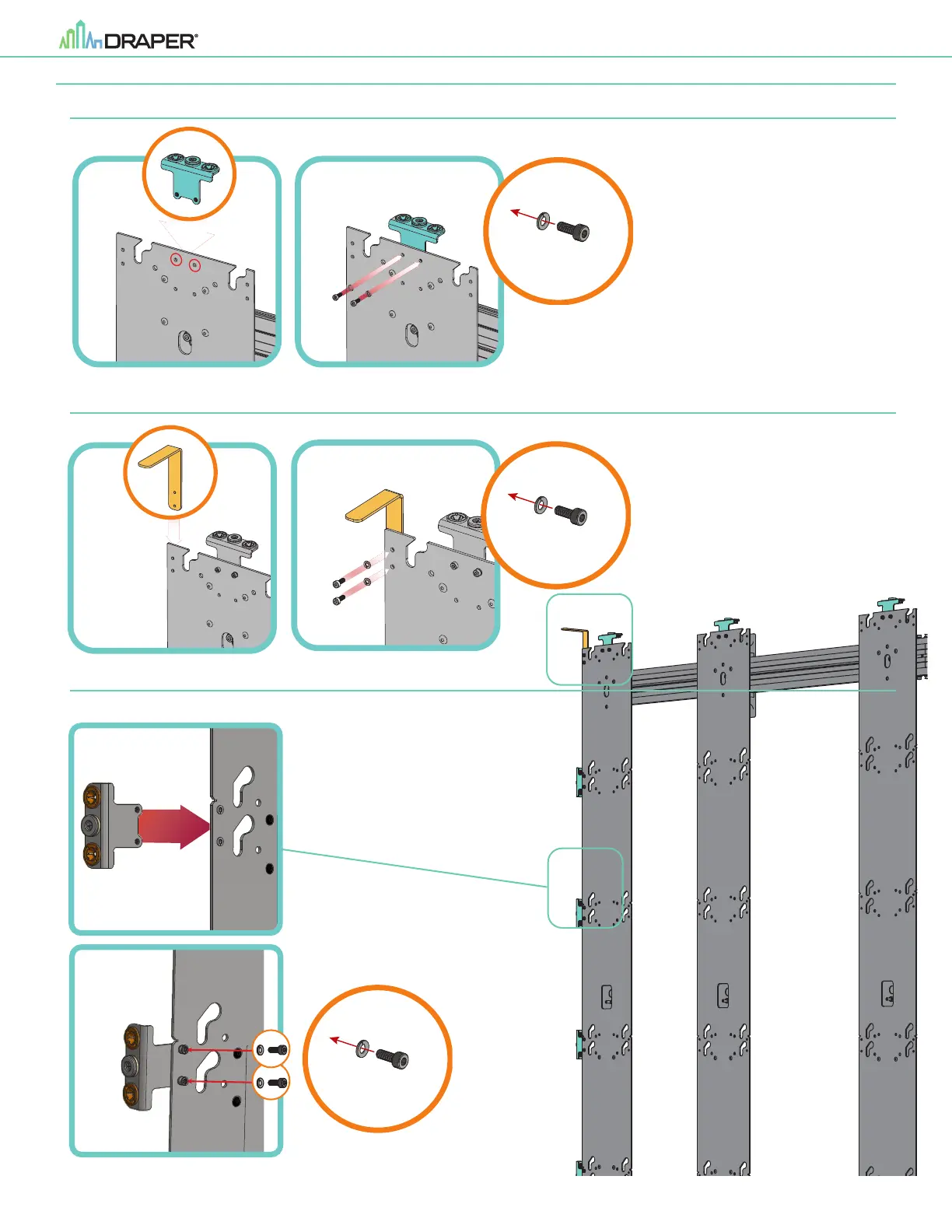

Section 12 - Attaching Trim Brackets
Section 12.1 - Installing TOP Trim Brackets
Section 12.2 - Installing TOP Trim Support Brackets
(Trim Support Bracket Locations will vary depending on array size. Refer to Section 9.)
Section 12.3 - Installing Side Trim Brackets
1
2
SPLIT LOCK
WASHER -
M4
SOCKET HEAD
SCREW
M4-0.7x10mm
321
2
1
321
2
1
SPLIT LOCK
WASHER -
M4
SOCKET HEAD
SCREW
M4-0.7x10mm
32
1
21
3
2
1
21
SPLIT LOCK
WASHER -
M4
SOCKET HEAD
SCREW
M4-0.7x10mm
