Draytek Vigor 130 User Manual

p
Installing Your Modem

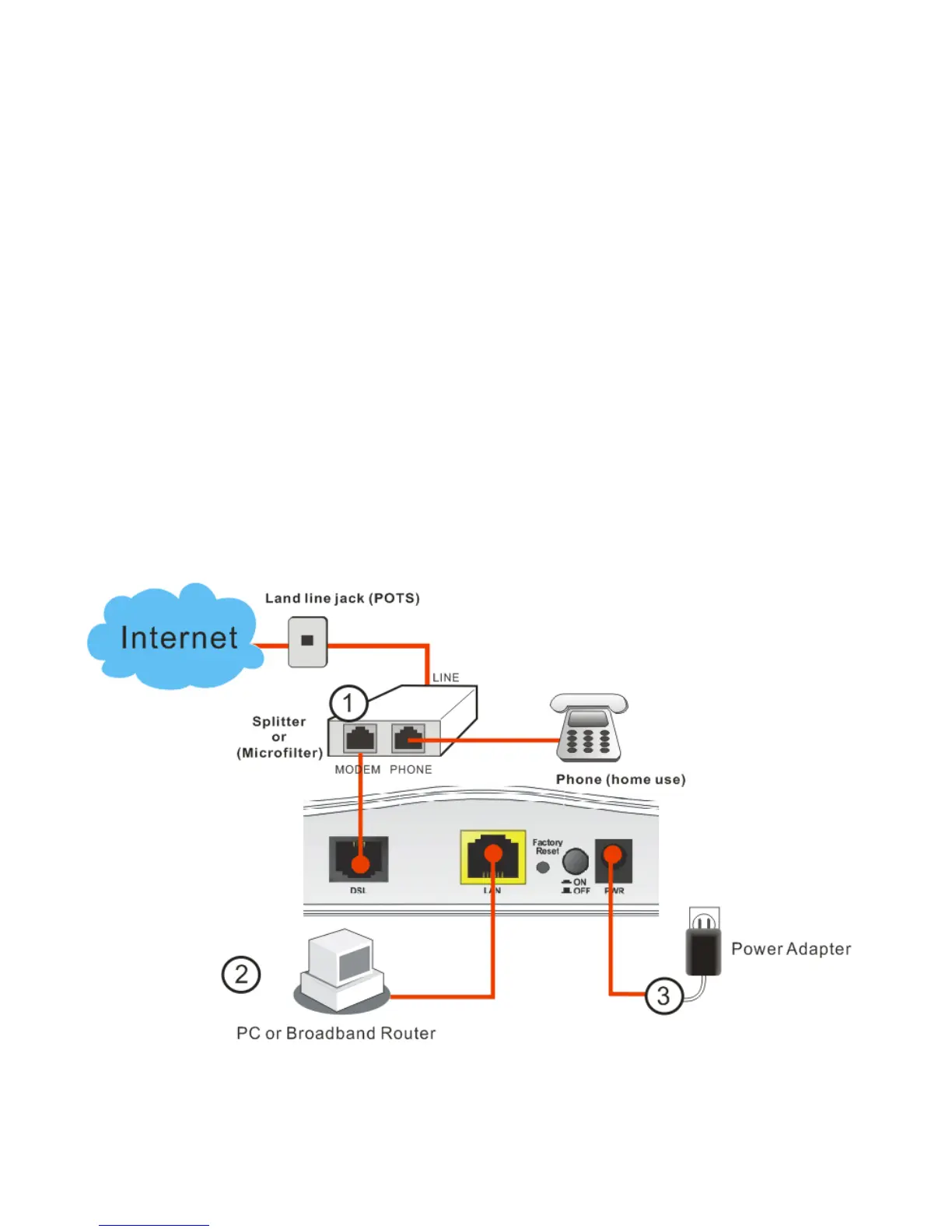

This section will guide you to install the modem through hardware
connection and configure the modem’s settings through web browser.
Before starting to configure the modem, you have to connect your devices
correctly.
1. Connect the DSL interface to the MODEM port of external splitter with
a DSL line cable.
2. Connect the LAN port to your computer with a RJ-45 cable.
3. Connect one end of the power adapter to the Power port of this device.
Connect the other end to the wall outlet of electricity.
4. Power on the modem.
5. Check the POWER, ACT, LAN, DSL and INTERNET LEDs to
assure network connections.

Draytek Vigor 130 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
3G/4G USB modem compatibility	-
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1Q
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Mobile network generation	Not supported
Ethernet LAN (RJ-45) ports	1
Product color	White
Power source type	DC
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	20 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	125 mm
Width	182 mm
Height	40 mm
Weight	240 g
