Item Description
View Use the drop down list to choose a type (Single Address,
Range Address, Subnet Address, Mac Address or all) that IP
object with the selected type will be shown on this page.
Set to Factory Default Clear all profiles.
Search Type a string of the IP object that you want to search.
Index Display the profile number that you can configure.
Name Display the name of the object profile.
Address Display the IP address configured for the object profile.
To set a new profile, please do the steps listed below:
1. Click the number (e.g., #1) under Index column for configuration in details.

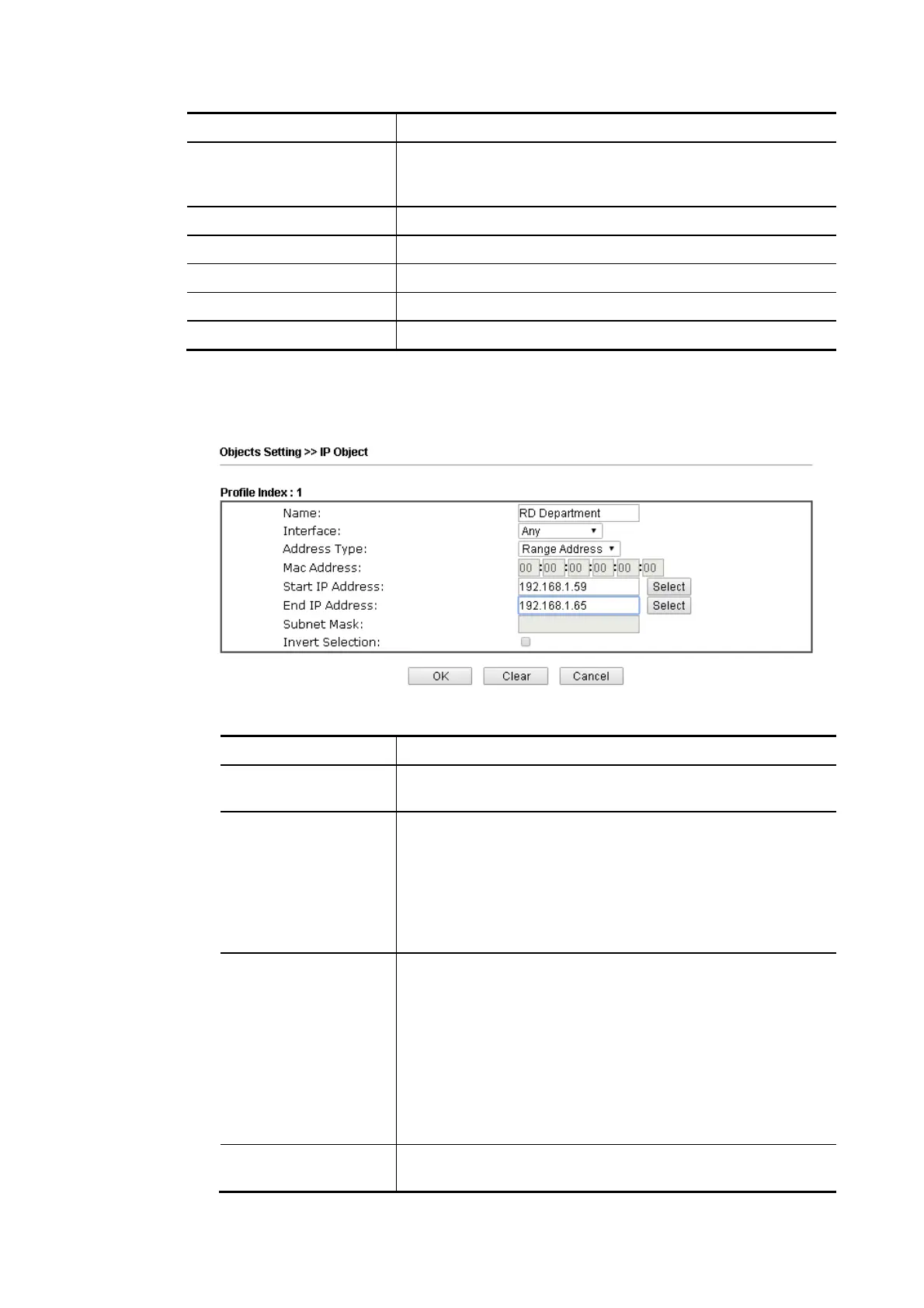

2. The configuration page will be shown as follows:
Available settings are explained as follows:
Item Description
Name Type a name for this profile. Maximum 15 characters are
allowed.
Interface Choose a proper interface.
For example, the Direction setting in Edit Filter Rule will
ask you specify IP or IP range for WAN or LAN/RT or any IP
address. If you choose LAN/RT as the Interface here, and
choose LAN/RT as the direction setting in Edit Filter Rule,
then all the IP addresses specified with LAN/RT interface will
be opened for you to choose in Edit Filter Rule page.
Address Type Determine the address type for the IP address.
Select Single Address if this object contains one IP address
only.
Select Range Address if this object contains several IPs
within a range.
Select Subnet Address if this object contains one subnet for
IP address.
Select Any Address if this object contains any IP address.
Select Mac Address if this object contains Mac address.
MAC Address Type the MAC address of the network card which will be
controlled.
