c

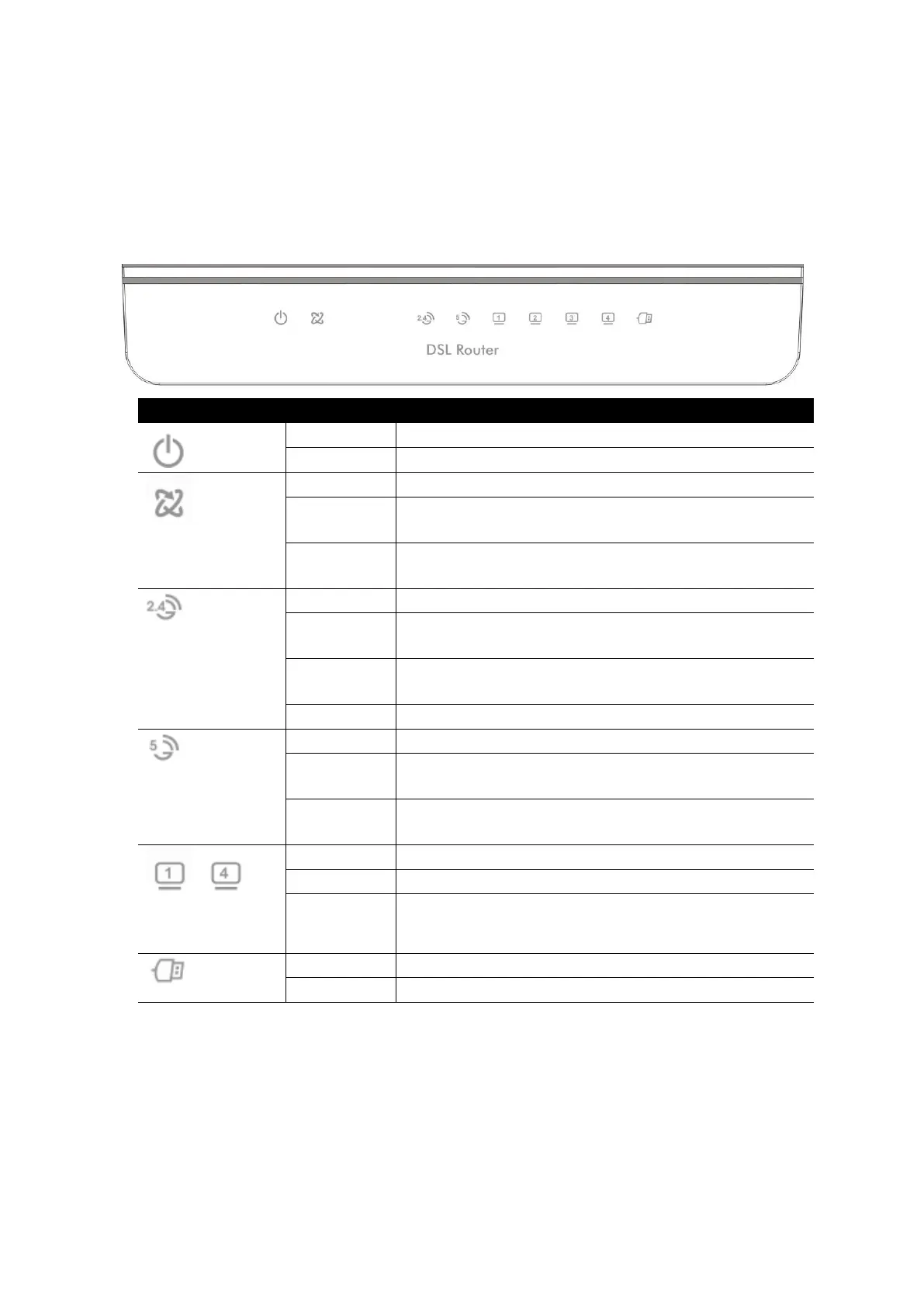

LED
Status
Explanation
(Activity)
Blinking
The router is ready and operating normally
Off
The router is powered off
(DSL)
On
DSL connection synchronised
Blinking
(Slowly)
DSL connection not currently synchronizing or
not detected
Blinking
(Quickly)
DSL connection is synchronising
(Wireless LAN
On/Off/WPS)
On (Green)
2.4GHz Access Point is active
Blinking
(Green)
Data is being transmitted on the router’s 2.4
GHz wireless interface
Blinking
(Orange)
WPS pairing mode is active for two minutes
Off
2.4GHz Access Point is turned off
(Wireless LAN
On/Off/WPS)
On (Green)
5GHz Access Point is active
Blinking
(Green)
Data is being transmitted on the router’s 5GHz
wireless interface
Blinking
(Orange)
WPS pairing mode is active for two minutes
~
(LAN1/2/3/4)
On
Ethernet LAN (RJ45) is connected
Blinking
Data is transmitting (sending/receiving)
Off
Ethernet LAN is disconnected
(USB)
On
USB device is connected and ready for use
Blinking
Data is being transmitted over USB
