Draytek Vigor 2820 Series - Vigor2820 Vn Panel Details; 1.1.3 For Vigor2820 Vn LED Status; Phone and Line Port Indicators

6
1
1
.
.
1
1
.
.
3
3
F
F
o
o
r
r
V
V
i
i
g
g
o
o
r
r
2
2
8
8
2
2
0
0
V
V
n
n

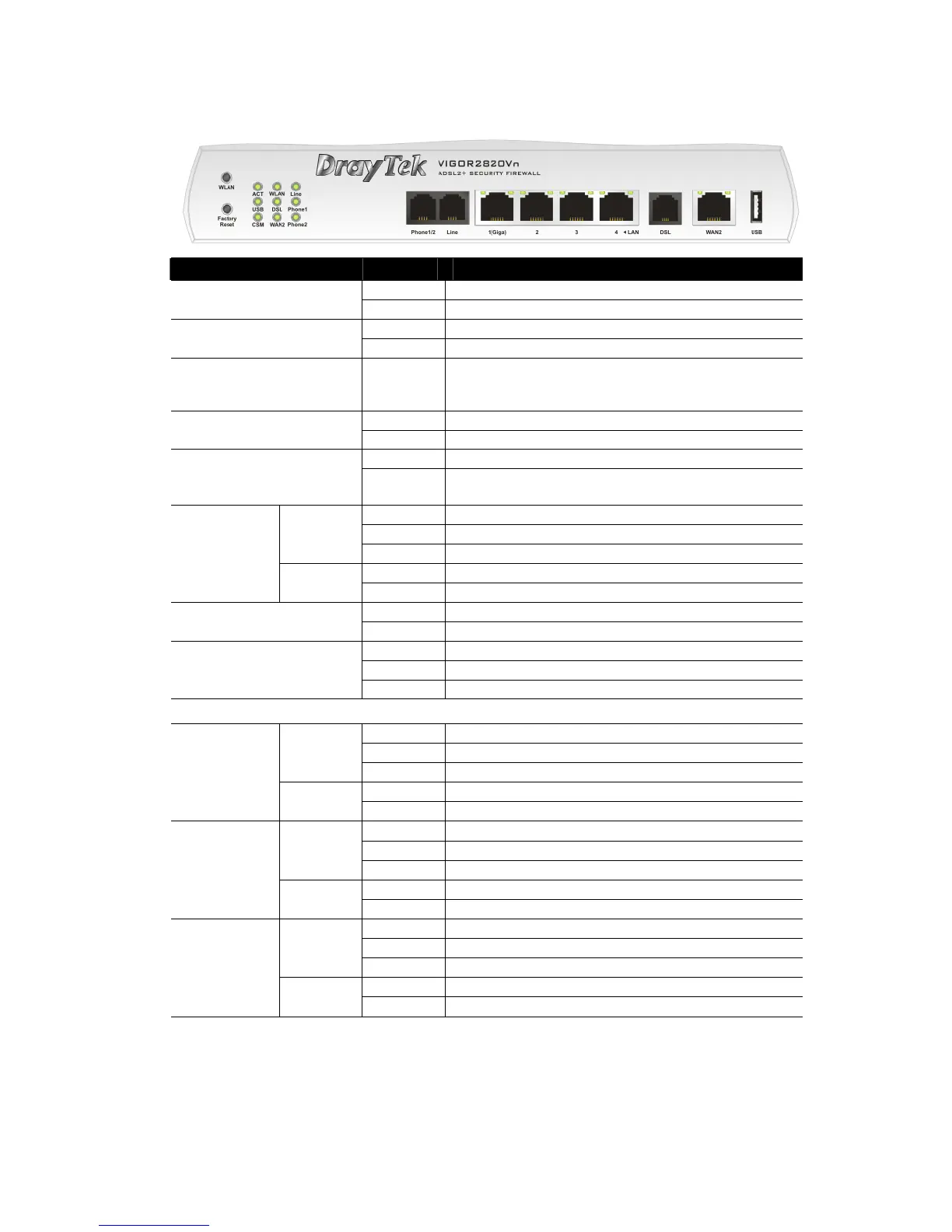

LED Status Explanation
Blinking The router is powered on and running normally. ACT (Activity)
Off The router is powered off.
On A USB device is connected and active. USB
Blinking The data is transmitting.
CSM On The profile of CSM (Content Security Management) for
IM/P2P application is active. (It is enabled from
Objects Setting >> CSM Profile).
On
Wireless access point is ready.
WLAN
Blinking
It will blink while wireless traffic goes through.
On The router is ready to access Internet through DSL link. DSL
Blinking Slowly: The connection is ready.
Quickly: The connection is tranning.
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 100Mbps.
WAN 2
Right LED
(Green)
Off The port is disconnected with 10Mbps.
On Web Content Filter is disabled. Line
Off Web Content Filter is enabled to filter web pages.
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Phone 1/2
Blinking A phone call comes.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
LAN 1(Giga)
Right LED
(Green)
Off The port is disconnected with 10/100Mbps.
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 100Mbps.
LAN 2/3/4
Right LED
(Green)
Off The port is disconnected with 10Mbps.
On The port is connected.
Off The port is disconnected.
Left LED
(Green)
Blinking The data is transmitting.
On The port is connected with 100Mbps.
WAN 2
Right LED
(Green)
Off The port is disconnected with 10Mbps.
