Vigor2860 Series Quick Start Guide
5
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
1~6
Right
LED
Off The port is connected with 10/100Mbps

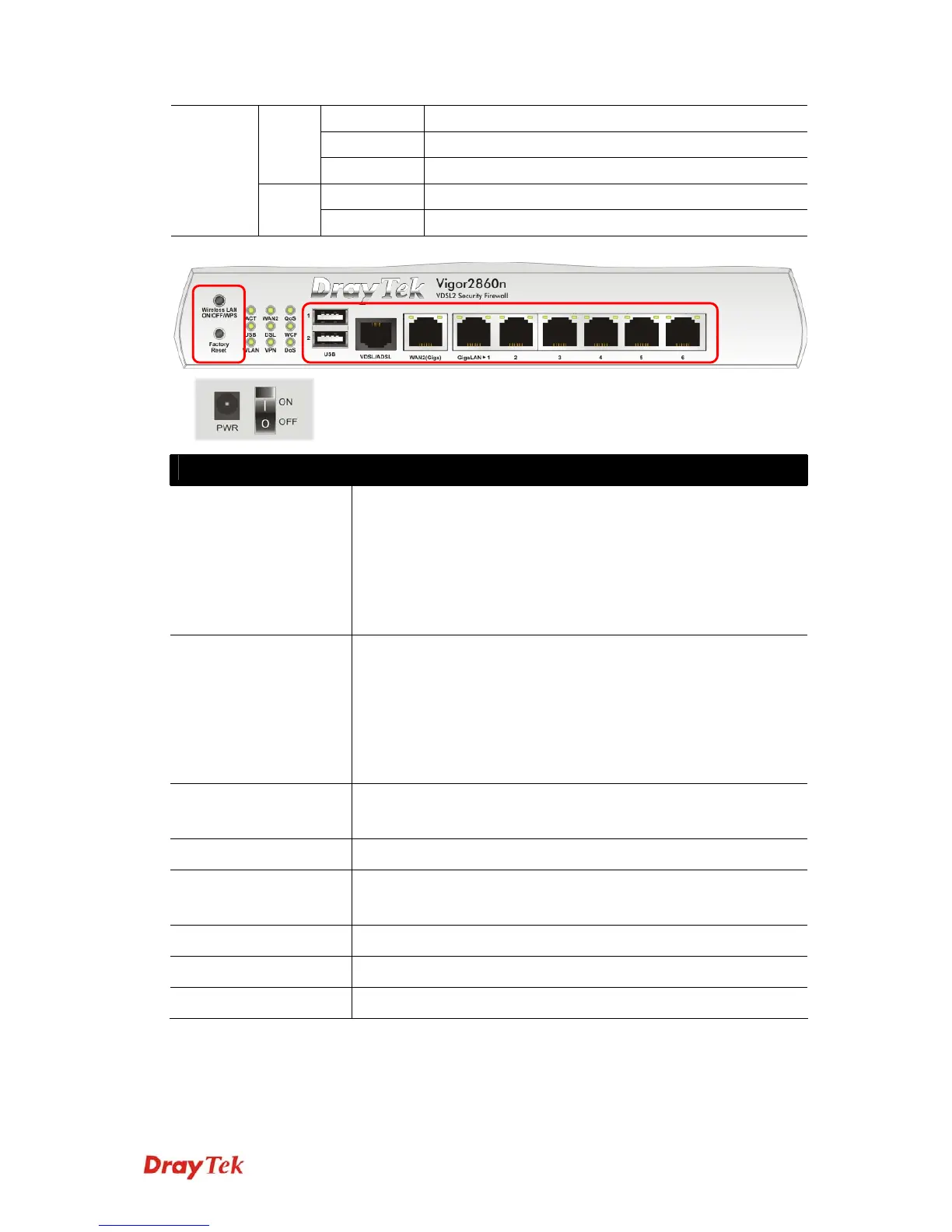

Interface
Description
Wireless LAN
ON/OFF/WPS
Press "Wireless LAN ON/OFF/WPS" button once to
wait for client device making network connection
through WPS.
Press "Wireless LAN ON/OFF/WPS" button twice to
enable (WLAN LED on) or disable (WLAN LED
off) wireless connection.
Factory Reset
Restore the default settings. Usage: Turn on the
router (ACT LED is blinking). Press the hole and
keep for more than 5 seconds. When you see the
ACT LED begins to blink rapidly than usual, release
the button. Then the router will restart with the
factory default configuration.
USB
Connecter for a USB device (for 3G USB Modem or
printer).
VDSL/ADSL
Connecter for accessing the Internet.
WAN2 (Giga)
Connecter for local network devices or modem for
accessing Internet.
GigaLAN (1-6)
Connecters for local network devices.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
