Vigor2860 Series Quick Start Guide
2
1
1
.
.
1
1
P
P
a
a
n
n
e
e
l
l
E
E
x
x
p
p
l
l
a
a
n
n
a
a
t
t
i
i
o
o
n
n
1
1
.
.
1
1
.
.
1
1
F
F
o
o
r
r
V
V
i
i
g
g
o
o
r
r
2
2
8
8
6
6
0
0

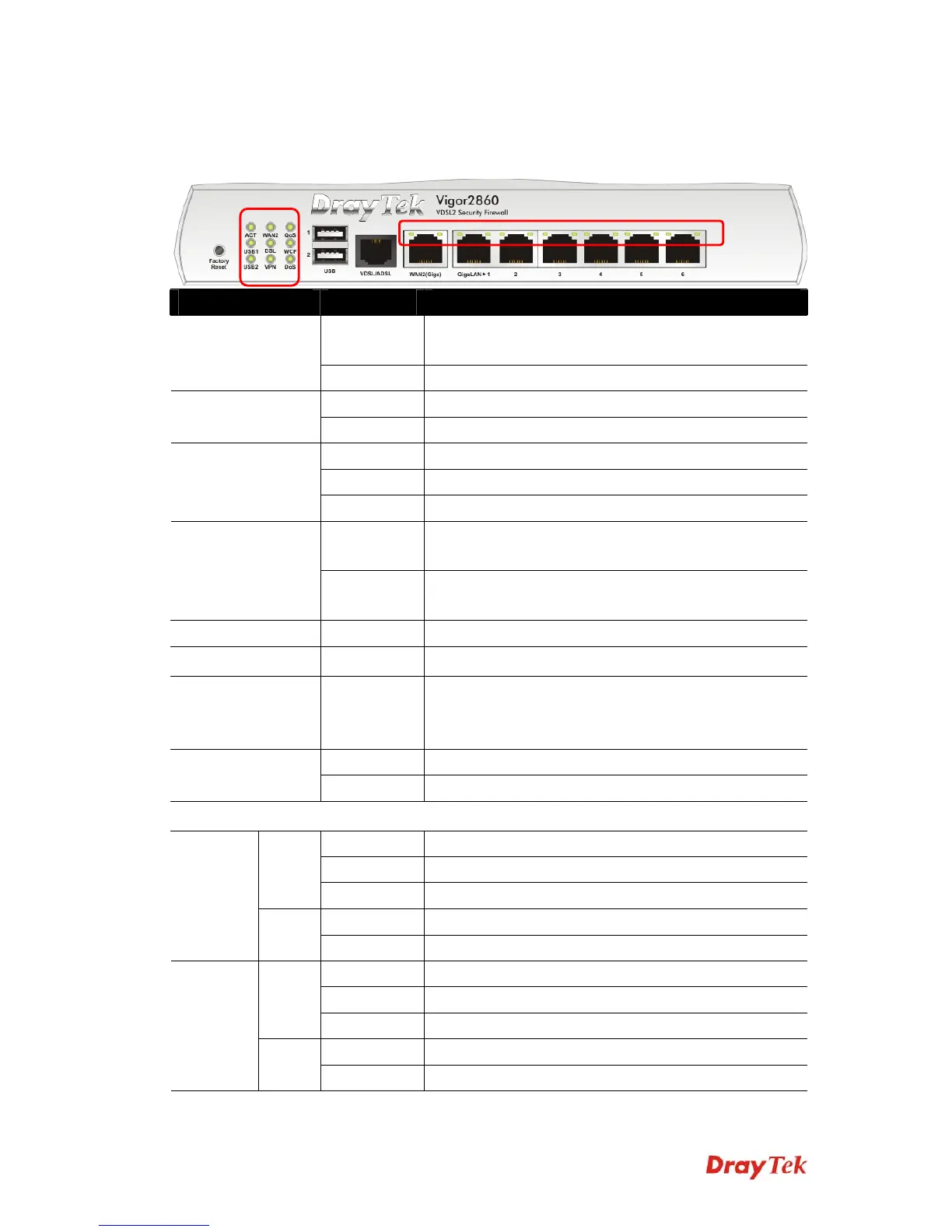

LED Status Explanation
Blinking The router is powered on and running
normally.
ACT (Activity)
Off The router is powered off.
On USB device is connected and ready for use.USB1~2
Blinking The data is transmitting.
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On The router is ready to access Internet
through DSL link.
DSL
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
VPN On The VPN tunnel is active.
QoS
On The QoS function is active.
WCF On The Web Content Filter is active. (It is
enabled from Firewall >> General
Setup).
On The DoS/DDoS function is active. DoS
Blinking It will blink while detecting an attack.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN2
(Giga)
Right
LED
Off The port is connected with 10/100Mbps
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
GigaLAN
1~6
Right
LED
Off The port is connected with 10/100Mbps
To Next Page
