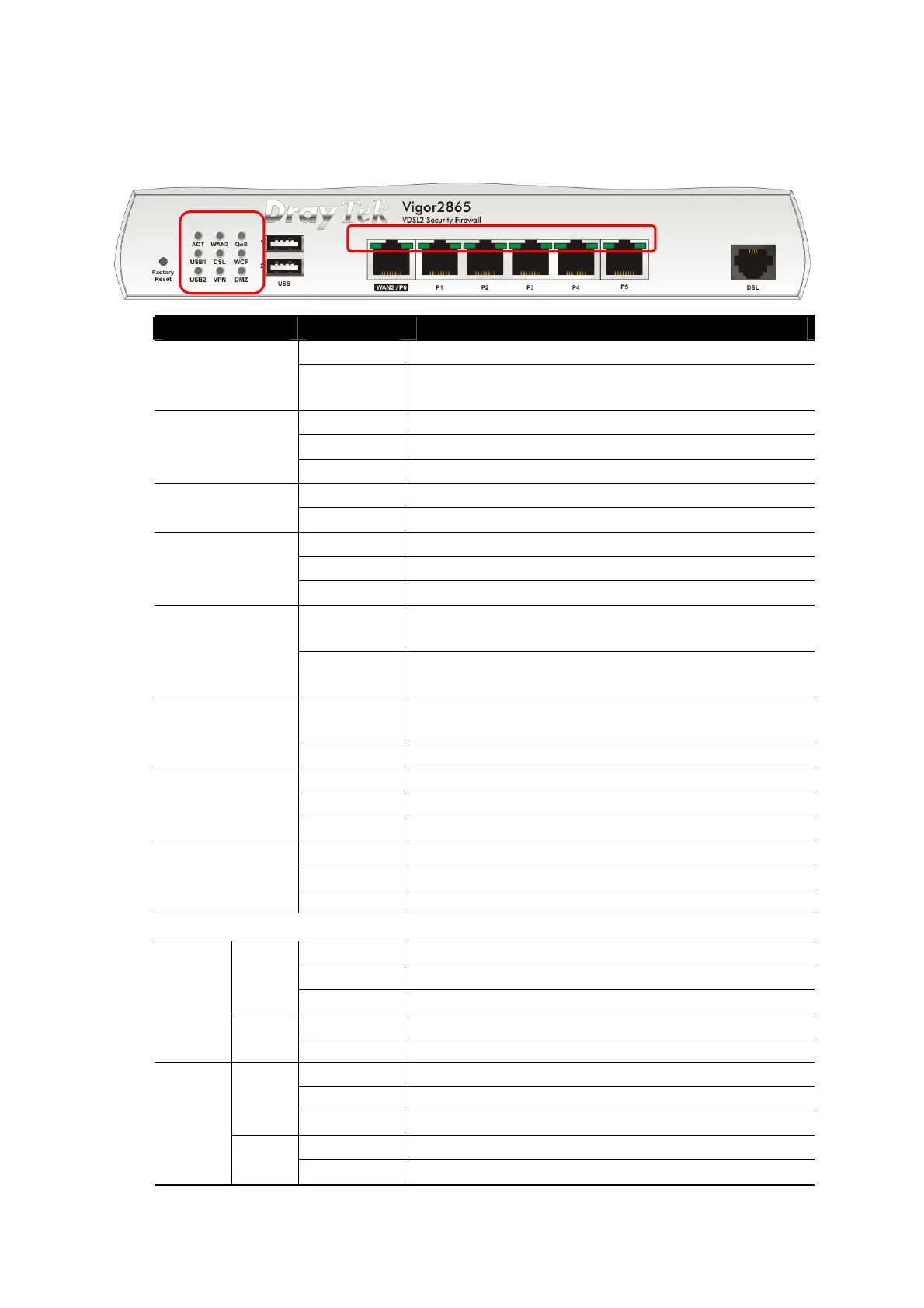

LED Status Explanation
Off The router is powered off. ACT
Blinking The router is powered on and running
normally.
On Internet connection is ready.
Off Internet connection is not ready.
WAN2
Blinking The data is transmitting.
On The QoS function is active. QoS
Off The QoS function is inactive.
On USB device is connected and ready for use.
Off No USB device is connected.
USB1~2
Blinking The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL
Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
On The Web Content Filter is active. (It is
enabled from Firewall >> General Setup).
WCF
Off WCF is disabled.
On The VPN tunnel is active.
Off VPN services are disabled
VPN
Blinking Traffic is passing through VPN tunnel.
On The DMZ function is enabled.
Off The DMZ function is disabled.
DMZ
Blinking The data is transmitting.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
WAN2
/ P6
Right
LED
Off The port is connected with 10/100Mbps.
On The port is connected.
Off The port is disconnected.
Left
LED
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
LAN
P1~P5
Right
LED
Off The port is connected with 10/100Mbps
To Next Page
