2.3 Filter
The lter of the Hades is a 3-pole 18db/octave resonating OTA based low pass lter.
Its frequency ranges from 20Hz up to 20KHz
2.4 Drive
Hades has an Opamp - OTA drive circuit that is able to drive - and
works best at - low and rich harmonic frequencies . It is a fairly
simple 1 knob function. Its action is not linear, but it has a
logarithmic response.
2.5 Amplier
Hades’s amplier has a build in AR envelope
generator. Notice that when the output Level is at
max you get 8 Volts p/p, so be careful not to hurt
your ears or damage your speakers.

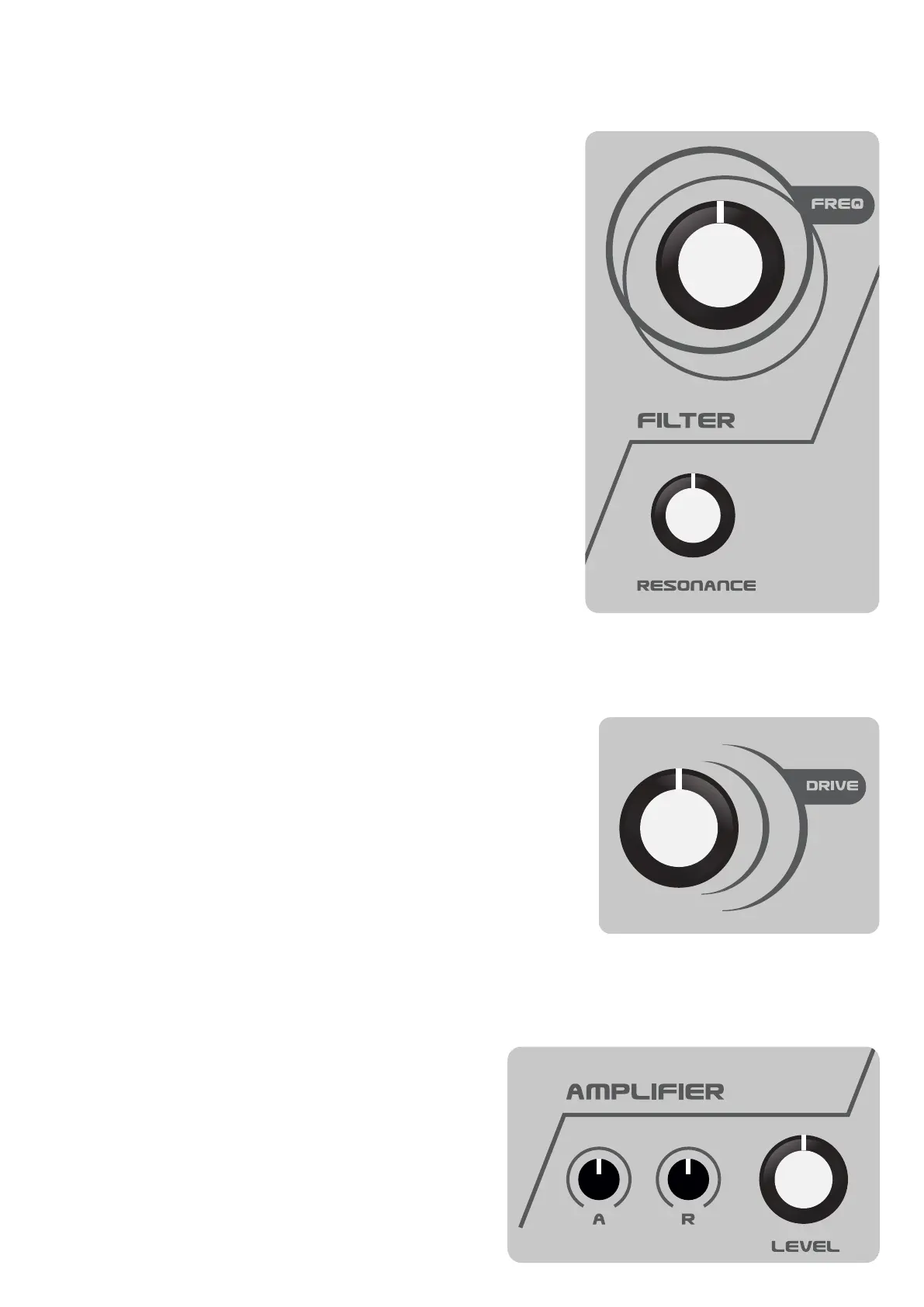

1. Sets the Cutoff Frequency of the Filter
2. Sets the Resonance Amount
1. Master Volume
2. Attack Speed
3. Release Speed
1
2
2 3
1
