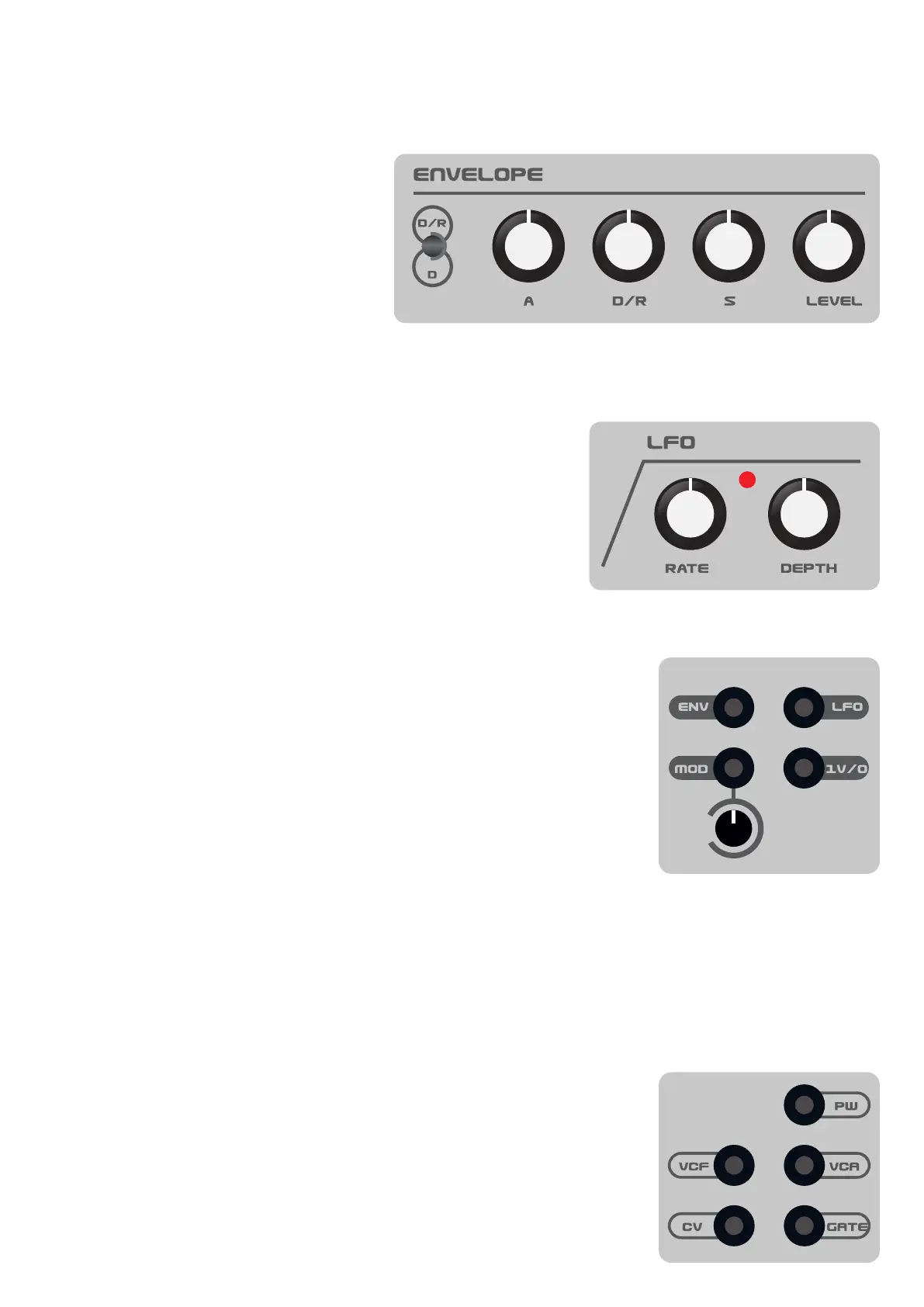

2.6 Envelope
Hades’s AD/RS is dedicated to the Filter. It may deliver up to 5V of Envelope (also accessible on a
patch).
2.7 LFO
The LFO needs to be patched in order to be used. It has a wide
range of frequencies, from 10 minutes up to 3kHz (3000 Hz).
2.8 Patching
A. Outputs - Those patch points only send voltage. You can send their
CV to other devices, but rst be sure that the receiver can accept such
a voltage.
ENV: Sends the envelope’s voltage in a 0-5V level.
LFO: Sends the LFO’s voltage in a +/- 5V level.
MOD: Sends the modulation wheel into a 0-5V format. The small knob
is an attenuator for the total amount.
1V/OCT: Sends the Pitch’s tracking
NEVER CONNECT AN OUTPUT WITH ANOTHER OUTPUT
This might cause serious damage to the unit and Dreadbox will not
take any responsibility.
B. Inputs
Those patch points only receive voltage. It is safe to send more
voltage than indicated (up to +/- 10V), but this does not mean that you
get a result.
PW: Controls the oscillator’s pulse width (+/- 5V)
VCF: Controls the lter’s frequency (+/- 5V)
VCA: Controls the Amp’s level. (0-5V)
By inserting a cable will deactivate the AR envelope.
CV: Controls the oscillator’s pitch (+/- 10V)
GATE: Controls the gate’s activation (0-5V)
1. Attack speed
2. Decay and Release speed
3. Sustain point
4. Envelope Level
5. Decay or Decay and Release
1. Sets the Rate
2. Sets the Depth
1 2 3 4
5
1 2
