The Routing
The routing section is the most important part of the Nyx v2 synthesizer. Understanding how it works,
is the key to create complex sounds. There are 2 routing controls (+ the MOD Routing, which is ex-
plained on the Filter section), VCO and VCF.

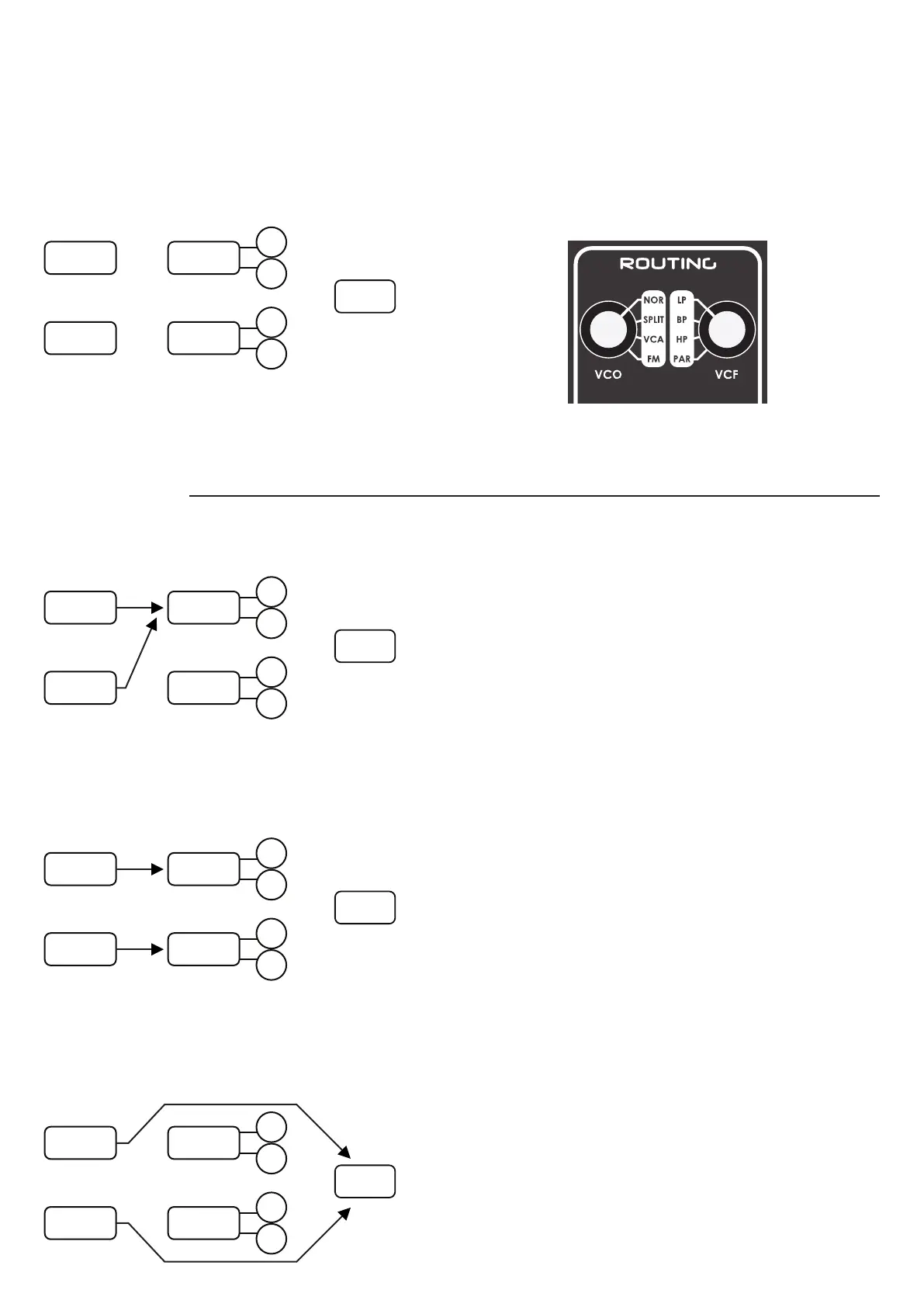

Let’s have a look at the following scheme :
VCO ROUTE
NOR: Stands for NORMAL. Both VCOs are sent to VCF1.
SPLIT: VCO1 is being sent to VCF1 and VCO2 is being sent to VCF2.
VCA: Both VCOs are being sent directly to the VCA.
You can see the main parts of the synth. These
will be routed now via the routing controls
VCO1
VCA
VCF1
LP
HP
VCO2 VCF2
LP
HP
VCO1
VCA
VCF1
LP
HP
VCO2 VCF2
LP
HP
VCO1
VCA
VCF1
LP
HP
VCO2 VCF2
LP
HP
VCO1
VCA
VCF1
LP
HP
VCO2 VCF2
LP
HP
