Dreame L20 Ultra Complete User Manual

Note: To prevent water stains from wetting wood floors or carpets, placing the base station on tile floors or
marble floors is recommended.

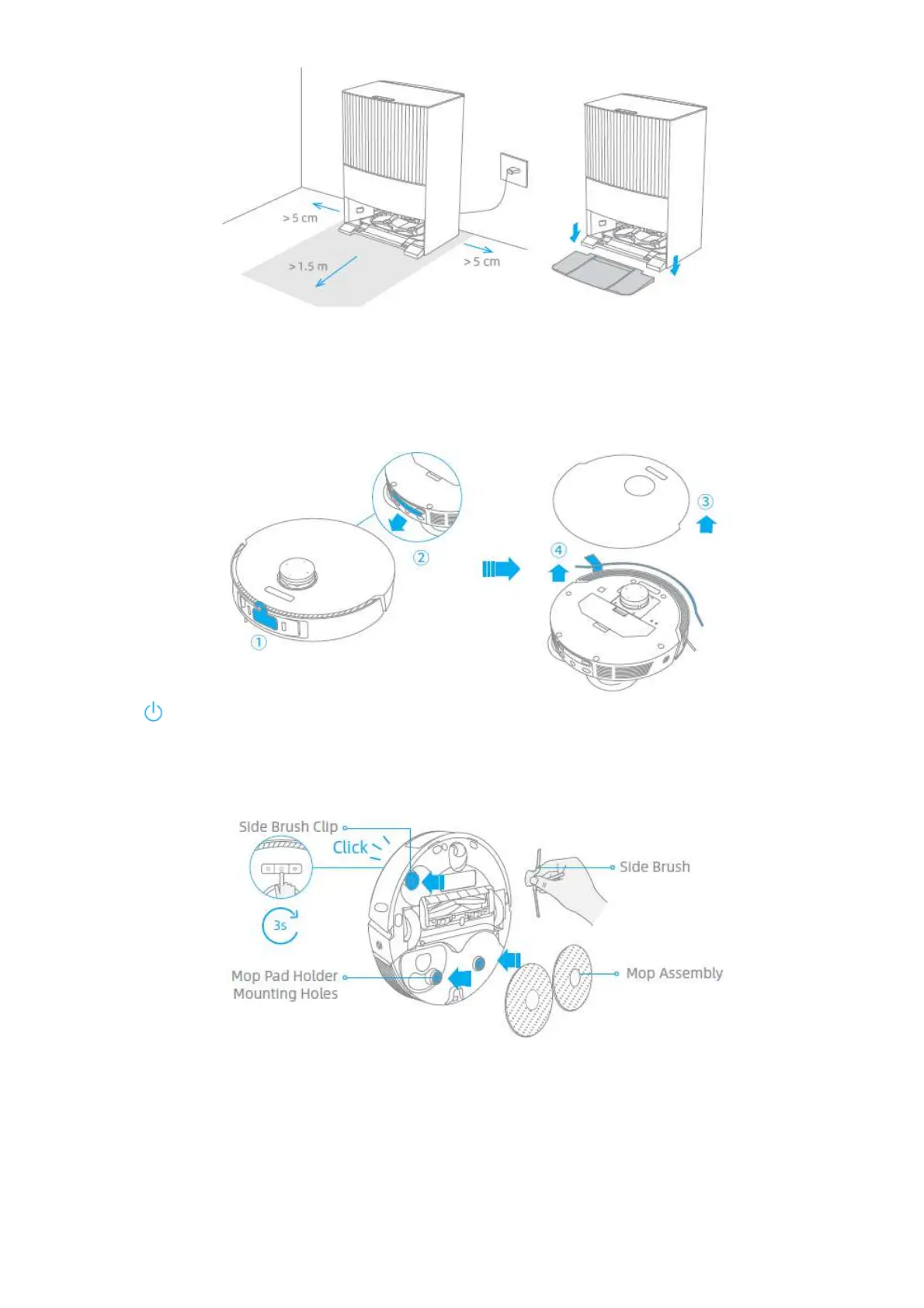

3. Remove the Protections
Remove the two stickers on front and back of the robot, then take down the robot cover to remove the
protective strip.
4. Turn on the Robot and Install the Side Brush and Mop Assembly
Press and hold the button on the robot for 3 seconds to turn it on. Install the side brush and mop assembly into
place.
Note: Install the side brush until it clicks into place.
5. Connect the Robot to the Base Station
Place the robot onto the base station with the mop assembly facing toward the washboard. Then you will hear a
voice prompt when the robot successfully connects to the base station.

Dreame L20 Ultra Complete Specifications

General

Suction Power	7000 Pa
Battery Capacity	6400 mAh
Dustbin Capacity	350 ml
Water Tank Capacity	80 ml
Auto Empty Station	Yes
Mopping Function	Yes
Self-Cleaning	Yes
Self-Emptying	Yes
Self-Refilling	Yes
Clean Water Tank Capacity (Dock)	4.5 L
Dirty Water Tank Capacity (Dock)	4 L
Dust Bag Capacity (Dock)	3.2 L
App Control	Yes
Navigation System	LiDAR
Runtime	180 minutes
Obstacle Avoidance	Yes
Drying	Yes
Weight	4.3 kg
Navigation	LDS LiDAR
Voice Control	Yes (Google Assistant, Alexa)
Charging Time	6 hours
