Madison Ottoman Bed - Assembly guide - Page 6
a x24
b x24 c x25
Bolts (M8x30mm) for fitting
side rails (C&D) to headboard
& footboard (A&B)
a x18
Bolts (M8x30mm) for fitting
support bracket (m) to
headboard (A)
Flat washer for M8 bolts
Spring washer for M8 bolts
Hardware needed for fixing side rails to Headboard & Footboard.
Packed in side rail Pack 2 - hardware pack (C).
Hardware needed for fixing bedsides to headboard.
Packed in Headboard Pack 1 - hardware pack ( B)
.
h x1
f x4
Spring washer for M8 bolts
e x4
Flat washer for M8 bolts
b x4 c x4
Threaded studs (M8x70mm)
for fitting bedsides (K) to
headboard (A)Nuts for M8 bolts
g x16
Screws (5x20mm) for fitting
metal legs (L) to bedsides (K)
(N.B. may include x4 spare
screws)
m x6
Bolts (M8x40mm) for bolting
wings to main headboard
Spring washer for M8 bolts
Flat washer for M8 bolts
b x6 c x6
d x1
Allen Key for M8 bolts

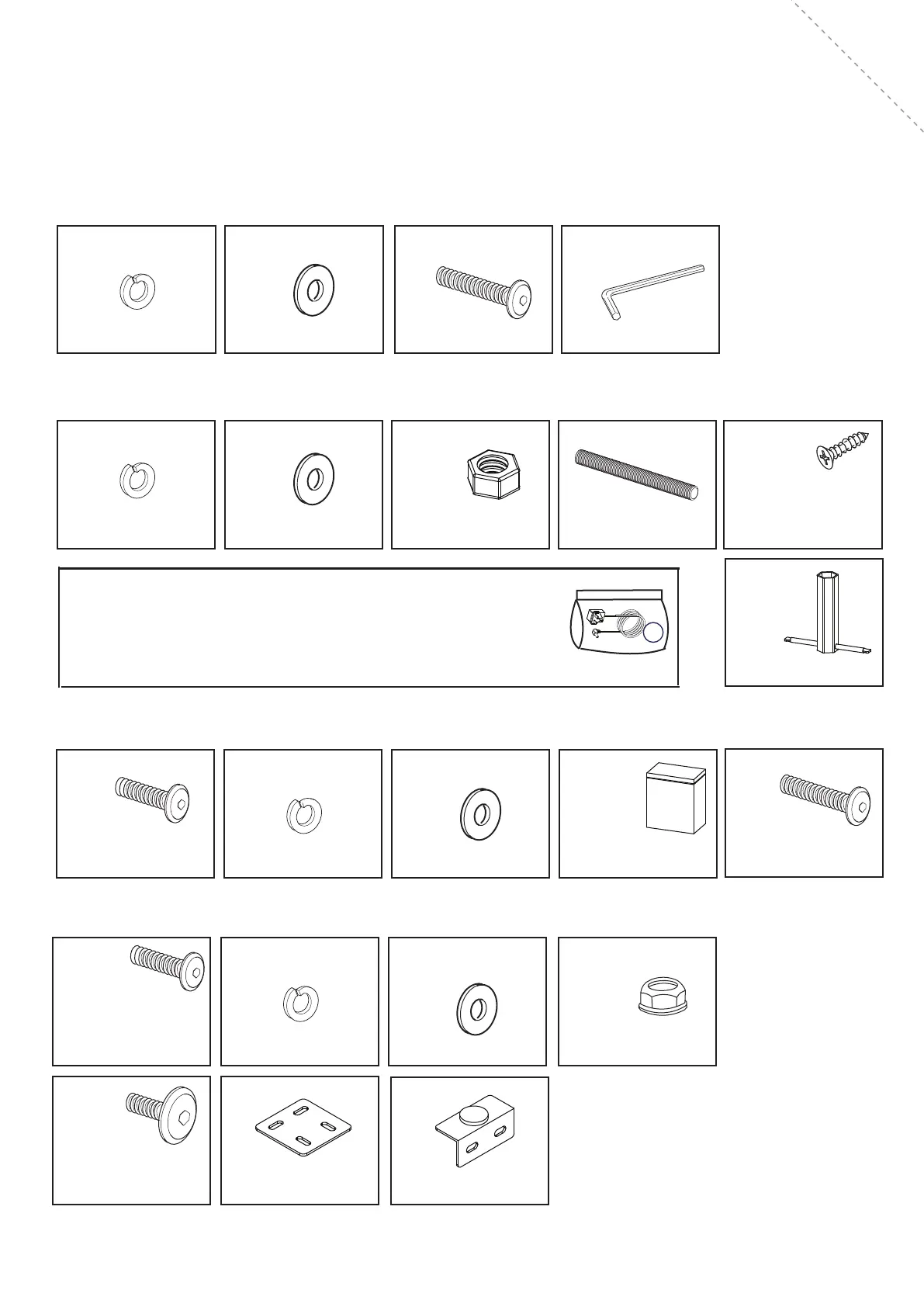

Fittings
Please check you have all the parts listed below with your product:
Hardware needed for fixing the bedside wings to headboard.
Packed in Headboard Pack 1 - hardware pack (A).
Power Plug
Transformer plug lead needed for connecting the power.
Push the small plug into the LV socket at the rear of the
headboard and then push the plug-top into the wall socket.
For safety the power supply must be earthed.
Packed in Headboard Pack 1
R
Spring Washer for M8 bolt Flat Washer for M8 bolt
j x2
Flanged M8 lock-nuts
for gas-lift pistons
n x2
b x16 c x18
k x6
Big Head Bolts (M8x20mm) for
fitting metal plate (n) and
mattress base boards (H&I)
mattress stoppers (J) to
Metal connection plate for
mattress base boards (H&I)
Fitting mattress base boards
to gas-lift mechanisms
m x1
Hardware needed for fixing Mattress Base Boards.
Packed in mattress base board Pack 5 - hardware pack (D).
p x1
Support block for side rail
side rail cross bar (G).
i x1
Bolts (M8x45mm) for
fitting support block (p) to
cross bar (G).
Tube spanner for M8 nut
Support Brackets
