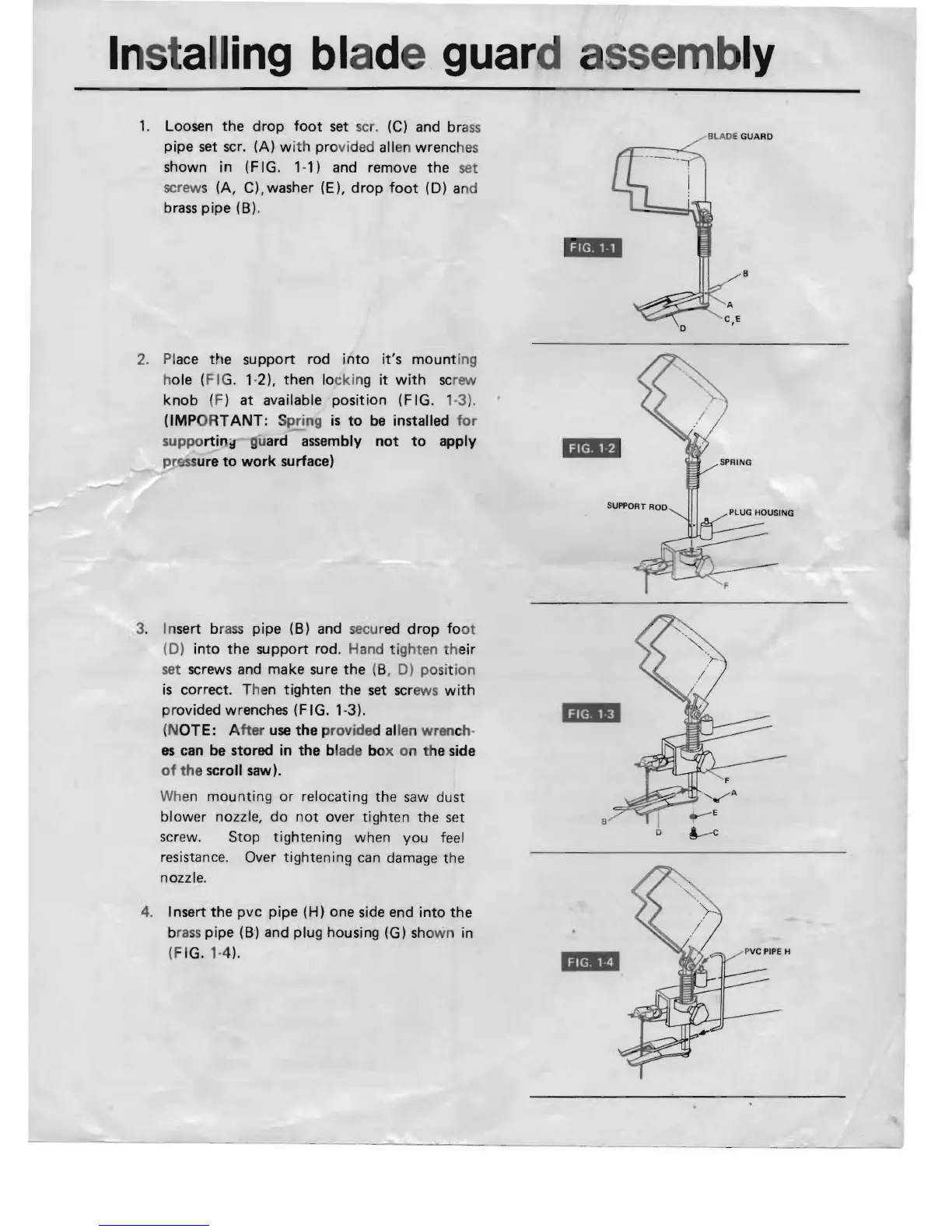

In ta il ing bl ade guar d se mb ly
1. Loosen the drop foot set scr. (C) and br ass
pipe set scr.
(A) wit h pro vi ded all en wrenc he s
shown in
(F I G. 1-1) and remove the set
screws
(A, C), washer (E). drop foot (0) and
brass
pipe (B).
2. Pl ace the support rod into it's mount ing
h
ole ( FI G. 1-2), then lo cking it with sc rew
knob (F) at available position (FIG. 1·3).
(IMPORTANT: Spring is to be installed for
suppo rtillil g-u ard assembly not to apply
pr!# $S ure to work surface)
3. In sert brass pipe (B) and secured drop fo ot
(0) into the support rod. Hand ti ghten their
set screws and make sure the (B, 0) posit ion
is correct. Then tighten the set screws with
pr ovided wrenches (F IG. 1·3).
(N OTE: A fter use the provided a ll en wrenc h·
es can be stored in the bl ade bo x on th e side
of th e scroll saw).
Wh en mounting or relocating the saw dust
blower nozzle, do not over tighten the set
screw. Stop tightening when you feel
resistance. Over tightening can damage
the
nozzl e.
4. Insert the pvc pipe (H) one side end into the
brass pipe (B) and plug housing (G) shown in
(F I G. 1-4).
U ttI'i
l iiI'·' j
bt."
8
iil.i'
o
SUPPORT RO~
PVC PIPE H
