Dremel 9100 - Assembly Instructions; Installing and Removing Hand Pieces; Installing the Flexible Shaft; Connecting to Power

9
9D.F@ B;=9B4%<A.?F'<<9
/23<?205.;46;4.002@@<?62@
05.;46;40<992A@<?@2?C606;4F<B?%<A.?F'<<9
3A2? 05.;46;4 /6A@ <?
:.86;4 .;F .17B@A:2;A@
:.82 @B?2 A52 05B08 .;1 .;F <A52?
.17B@A:2;A12C602@.?2@20B?29FA645A2;21
Loose adjustment device can unexpectedly
shift, causing loss of control, loose rotating
components will be violently thrown.
"&' ""%!#)""$&
Your Rotary Tool is equipped with a quick
disconnect system for hand pieces.

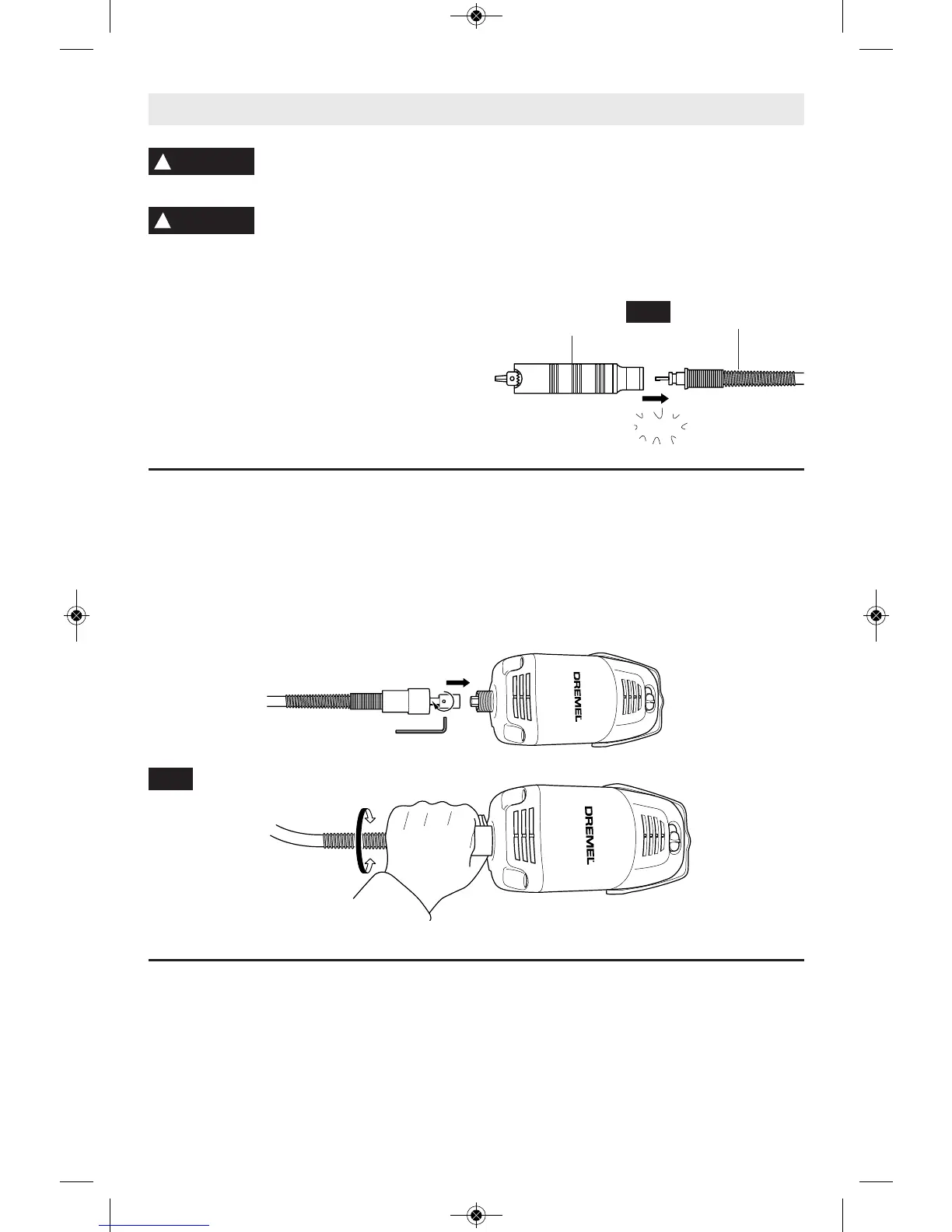

1. To install a hand piece, firmly grasp the new
hand piece in one hand and the knurled area
of flexible shaft in the other.
2. Align the base of hand piece to quick
disconnect.
3. Firmly press the hand piece onto the shaft
until you feel a “click”
4. To remove hand piece, simply pull firmly to
separate hand piece from flexible shaft
5. Secure hand piece in hanger when not in use.
@@2:/9F
!
WARNING
!
WARNING
CLICK
HAND PIECE
SHAFT
FIG. 3
"&' " + &'
'#!#'#%("'
1. To install flexible shaft to motor unit, remove
hand piece by firmly pulling from flexible shaft
2. Loosen set screw on Inner Shaft Collar with
hex key provided.
3. Align set screw to flat on Motor Output Shaft
and push Inner Shaft Collar fully on.
4. Tighten set screw to secure Inner Shaft Collar
to Motor Output Shaft.
5. Tighten Locking Collar by rotating it counter
clockwise until it is snug against the motor
housing.
FIG. 4
#""'"!#'#%("'"
)% &$##'$
1. To connect Motor Unit to power, with On/Off
switch in off position and foot pedal
unplugged, plug power cord from motor unit
into variable speed pedal.
2. With On/Off switch in off position and foot
pedal in free position, plug variable speed foot
pedal into wall outlet.
DM 2610Z04970 10-13_9100 10/9/13 7:52 AM Page 9
