Dremel 9100 - Functional Description and Specifications

8
6@0<;;20A A52 =9B4 3?<: A52 =<D2? @<B?02 /23<?2 :.86;4 .;F
.@@2:/9F.17B@A:2;A@<? 05.;46;4.002@@<?62@. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
!<129;B:/2? 
Voltage rating 120V 60Hz
Amperage rating 2.5A
No load speed n0 23,000/min
Chuck capacities 0-5/32"
B;0A6<;.92@0?6=A6<;.;1&=206360.A6<;@
!<129<?A6392E
ON/OFF
SWITCH

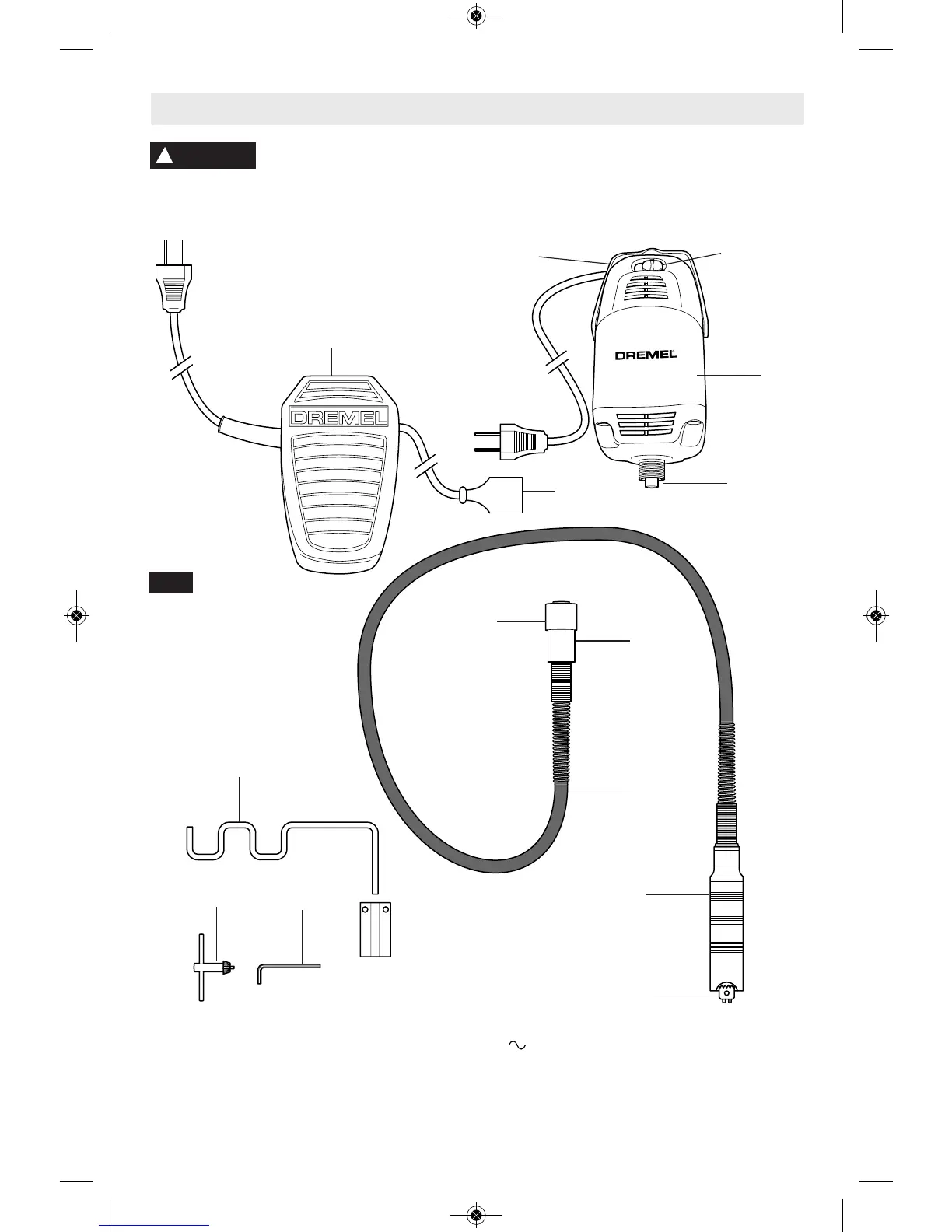

FIG. 1
TOOL
HANGER
OUTPUT
SHAFT
VARIABLE
SPEED FOOT
PEDAL
INNER SHAFT
COLLAR
LOCKING
COLLAR
HAND PIECE
CHUCK KEY
MOUNTING
BRACKET
3 JAW CHUCK
MOTOR
UNIT
FLEXIBLE
SHAFT
OUTPUT
CONNECTOR
HEX KEY
