To extend Quick Connect Tubing, use
D
1/4 in. Brass Compression Union
and 2x
B
1/4 in. Compression To Quick Connect Adapters to connect the
tubing running from your appliance to a section of
A
1/4 in. White PP Tubing, as
shown below.

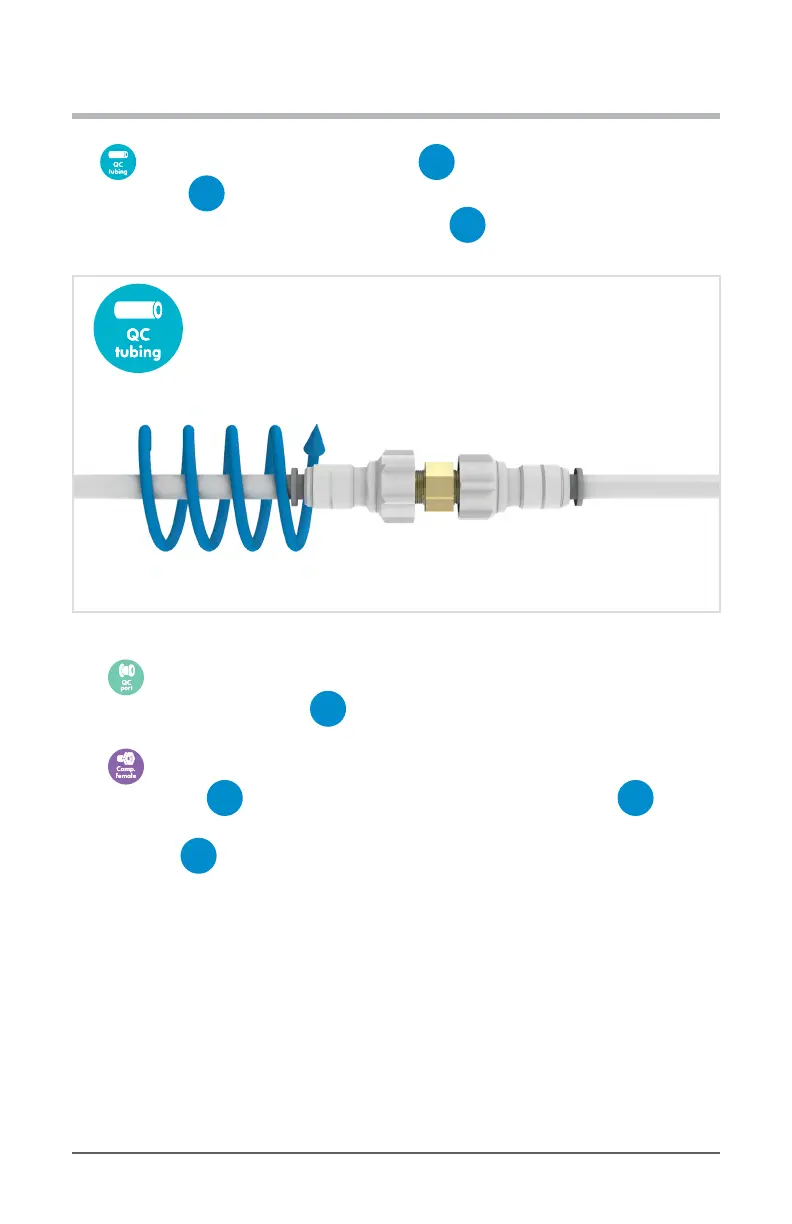

Diagram 2.6.4-A - Extending Quick Connect Tubing With Brass Compression Union
To extend from Quick Connect Port, simply follow the usual method to connect
one end of a section of
A
1/4 in. White PP Tubing into the appliance’s port
using the normal method.
To extend from a Female Compression Port or Hose, simply screw it onto one
end of a
D
1/4 in. Brass Compression Union. Then, connect a
B
1/4 in. Compression To Quick Connect Adapter to the other end, along with a
section of
A
1/4 in. White PP Tubing.
