Dripex F609A - Step 3: Align and Secure Slide Rail; Step 4: Install Pedals

Step 3: Step 4:

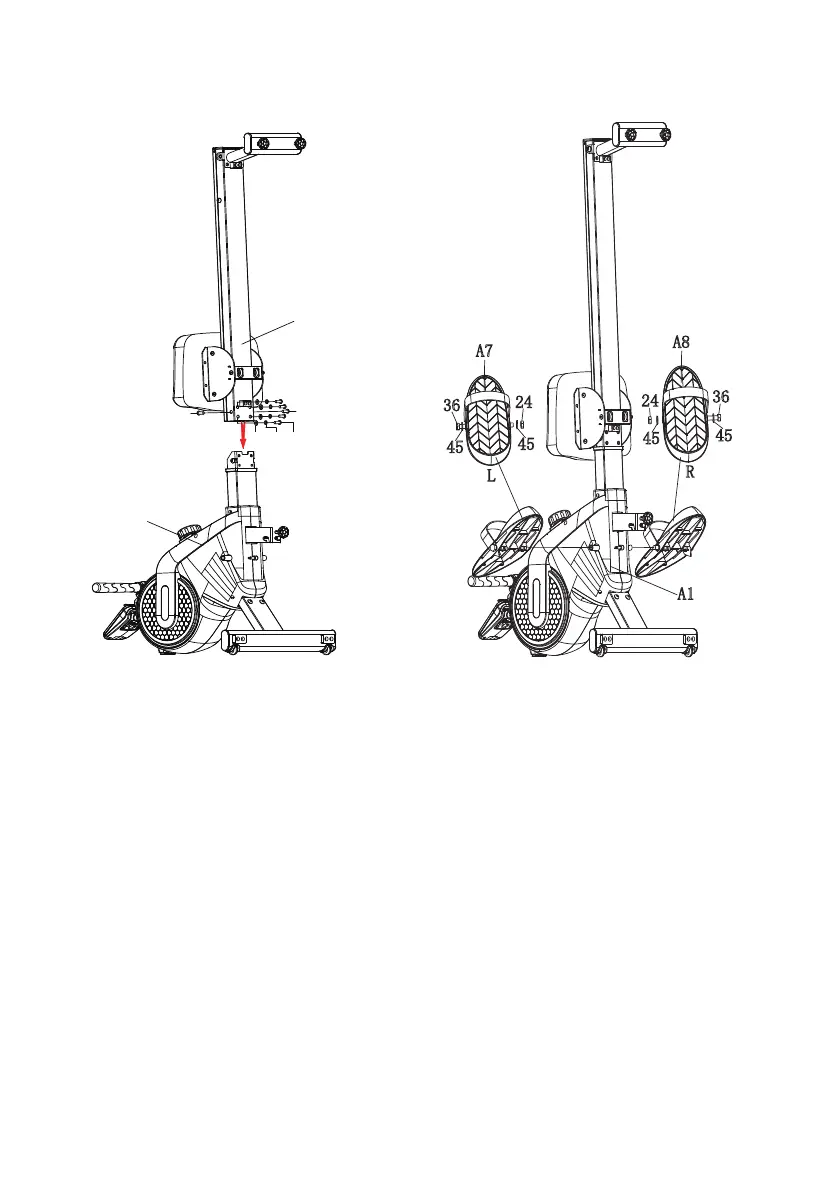

1. Align the Slide Rail (A2) with
the Main Frame Set (A1).
2. Using Allen Wrench (T2), Hex
Socket Button Head Bolt (31),
Spring Washer(46) and Flat
Washer (44) supplied to secure
the Slide Rail (A2) to the Main
Frame Set (A1)
1. Using Hex Bolt (36), Flat Washer
(45) and Hex Nut (24) to install the
Left Pedal (A7) and Right Pedal(A8)
first, as shown.
2. Using Multi-function Wrench (T1)
to secure both pedals to the Main
Frame Set (A1)
Note: Lock the Hex Nut with Multi-
function Wrench (T1) in a forward
direction.


31
46
44
31
31
A2
A1
36
45
45
24
36
45
24
45
L
R
A8
A7
A1
