MAINTENANCE&CAREMODEL
Regular Maintenance of lifters and accessories is
necessary to assure proper and safe operation. Read
and observe the following recommended instructions:
YOUSHOULDCHECKTHEFOLLOWINGBEFORE
EACHUSE
1. Base is even and level (all four wheels are on
the floor)
2. Wheel bolts are tight
3. Wheel swivel and roll easily
4. Base locks securely, all parts are present
5. Base opens and closes smoothly
6. Check spreader lock and all hardware for wear
7. Mast fully engaged and locked in mast sleeve
8. Inspect for bends or deflections
9. Inspect all bolts and nuts for wear
10. Inspect to ensure the boom is centered between
the base legs
11. Check hanger post for wear or damage.
12. Replace post if wear exceeds 1/16 inch
13. Check sling attachments for wear or deflection
14. Pump handle and valve work smoothly
15. Check for oil leakage, light film is normal, but not
to the point of dripping
16. Check metal parts for wear or damage
17. Check slings and web straps for wear or damage
THEFOLLOWINGSHOULDBECHECKEDEVERY
THREEMONTHS
1. Check nut at bottom of swivel bar hook and eye
hook on boom for wear.
2. Check for two nylon washers between nut of swivel
bar hook and underside of swivel bar assembly.
3. Tighten seals around piston with spanner wrench
provided

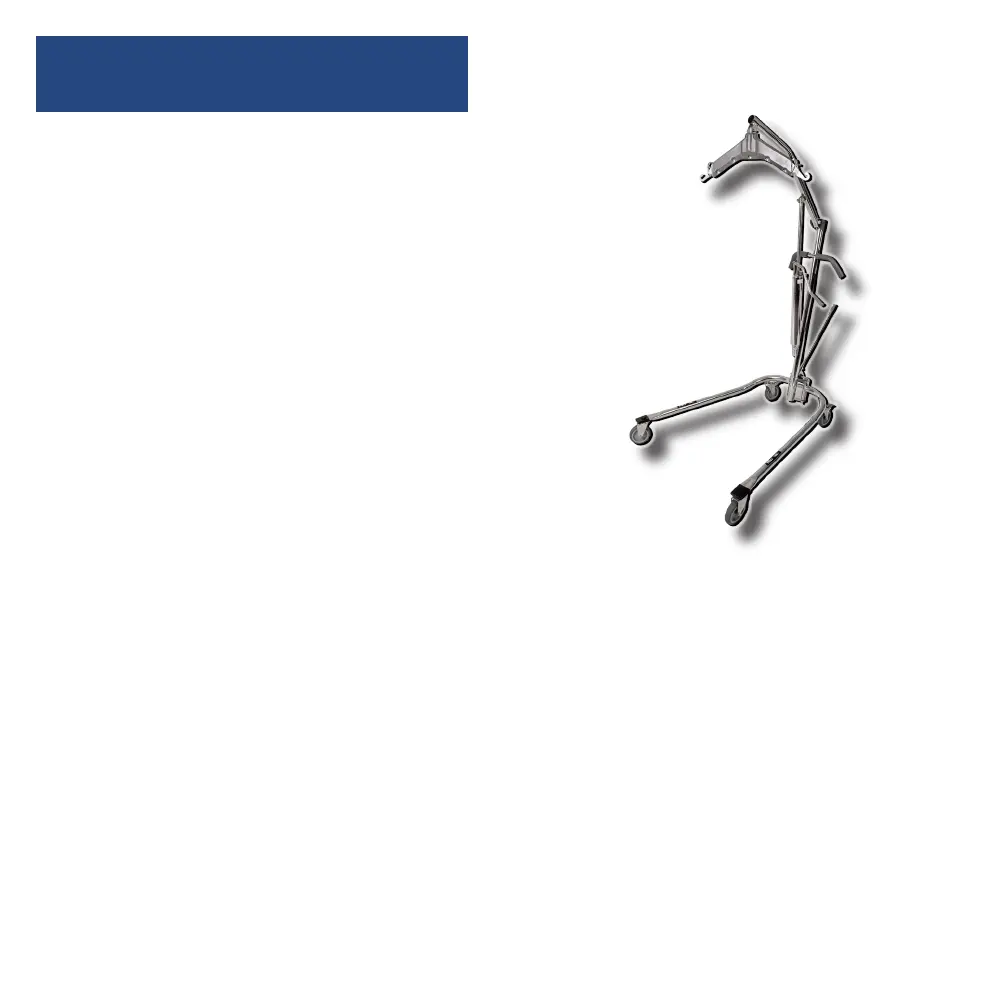

patient lift
maintenance & care
Item # 13023
THEFOLLOWINGSHOULDBELUBRICATEDEVERY
THREEMONTHS
1. Top of mast where boom attaches
2. Top and bottom of actuator mounting
3. Use a light grease to lubricate base adjustment
lock plate and all rotating hardware
4. Wheel and swivel bearings
CLEANINGCLEANLIFTFORUSEWITHEACH
NEWPATIENT
Be sure to: use mild soap to clean, dry thoroughly,
apply auto or appliance wax, keep painted surface
clean from oil and do not wash under water pressure.
WEIGHTCAPACITY450LBS
