5
ROUTINE MAINTENANCE

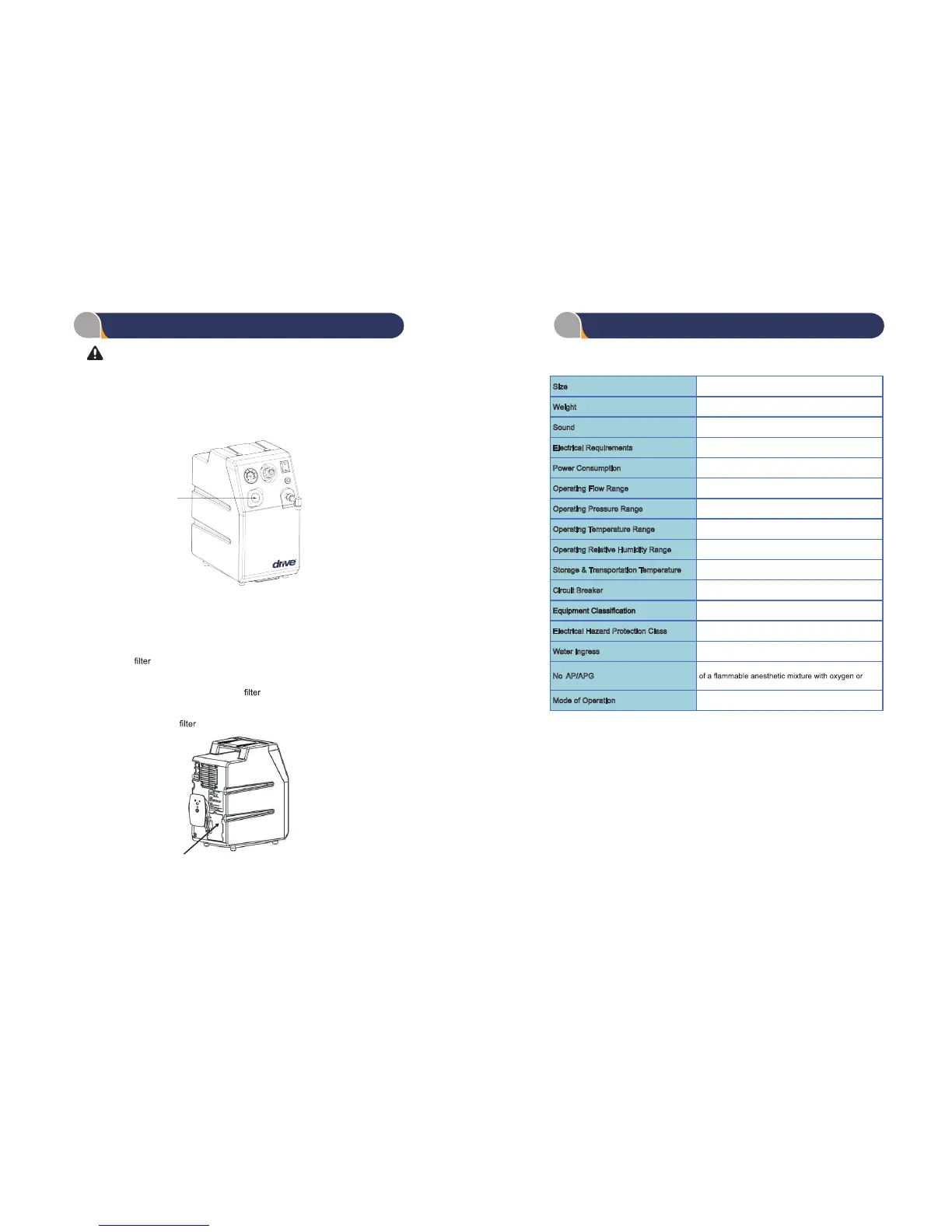

A. REPLACING AIR INTAKE FILTER (FIGURE 2)
NOTE: Perform this procedure as needed. Replace every 12 months or as
needed. Frequency will depend upon the environment the 50 PSI Compressor
is used in.
Pull air intake filter out from the front of unit and replace a new one when
dirty. Do not wash it.
.
B. REPLACING CABINET FILTER (FIGURE 3)
NOTE:
Perform this procedure as needed. Replace every 12 months or as
needed. Frequency will depend upon environmental conditions.
raer ehT .1
may be periodicaly rinsed with water to remove any debris or
dust. Let air dry before replacing.
tenibac gnitsixe dracsid dna tuo ekaT .2
at the back of the cabinet
as necessary.
3. Insert a new cabinet
at the back of cabinet.
C. COMPRESSOR CLEANING
Wipe the compressor cabinet with a clean cloth and any commercial
available disinfectant.
INTAKE FILTER
REAR CABINET FILTER
FIGURE 2
FIGURE 3
6
Make sure the power cord is disconnected
SPECIFICATIONS
Size 12.3 (L) x 7.3 (W) x 14.2 (H) in (313 x 186 x 360 mm)
W
eight 17.2 lbs. (7.8kg)
Sound
~60 dBA
Electrical Requirements
115 VAC ~60 Hz
Power Consumption
160 W
Operating Flow Range
11 - 34 LPM
Operating Pressure Range
7 - 50 PSI
Operating
Temperature Range
Operating Relative Humidity Range <95%
50
o
- 104
o
F (10
o
- 40
o
C)
Storage &
Transportation Temperature Room Conditions
Circuit Breaker
5A 125/250 VAC
Class II Electrical Shock Protection
Electrical Hazard Protection Class
Type BF
W
ater Ingress IPX0
No
AP/APG
Mode of Operation Continuous
Equipment is not suitable for use in the presence
nitrous oxide
