12 Blower Replacement

CONVECTION BLOWER

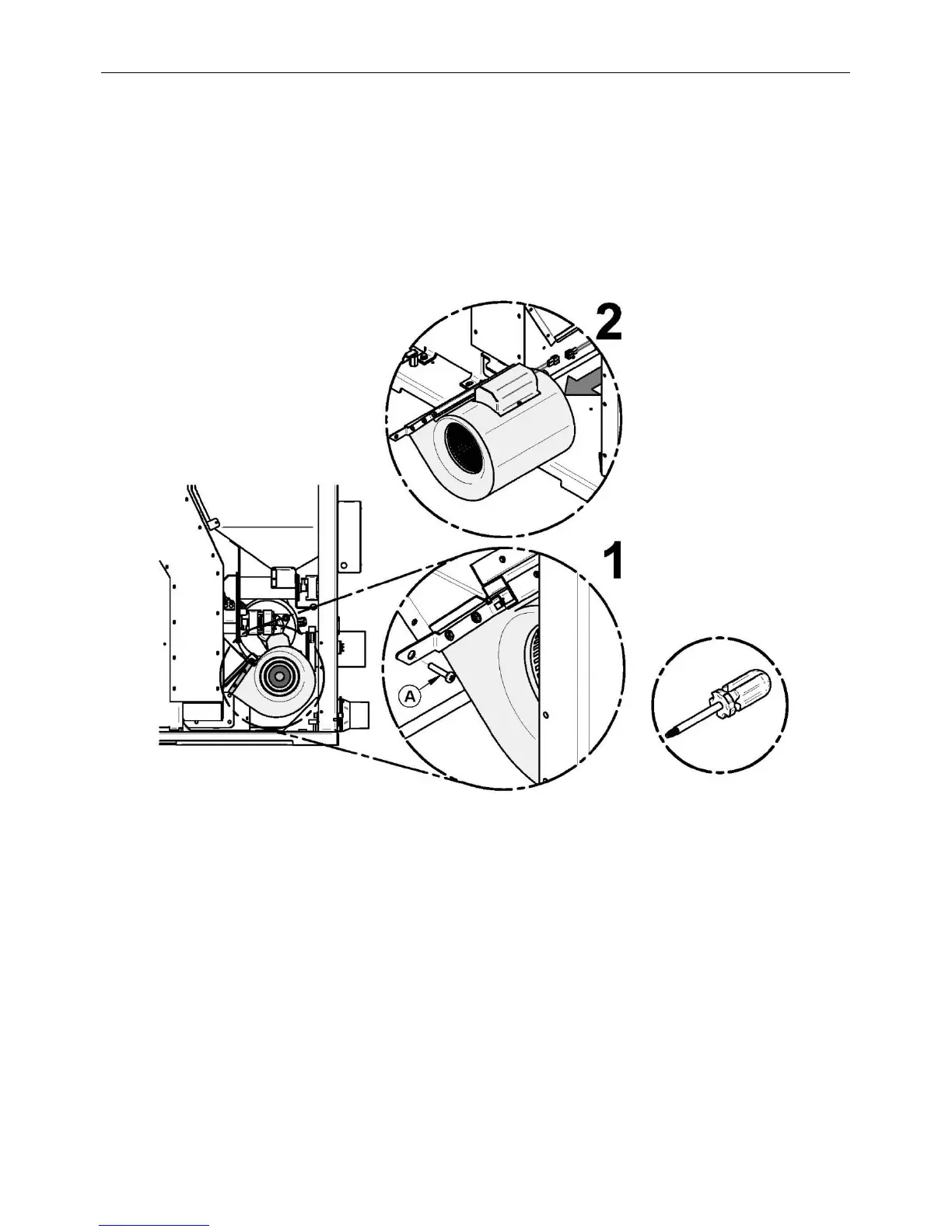

Unscrew screw A (1), slightly pivot the fan upward then partially slide the fan out (2).

Disconnect the fan from the harness and remove completely.
