Eco-65 Installation and Operation Manual

73

EXHAUST BLOWER

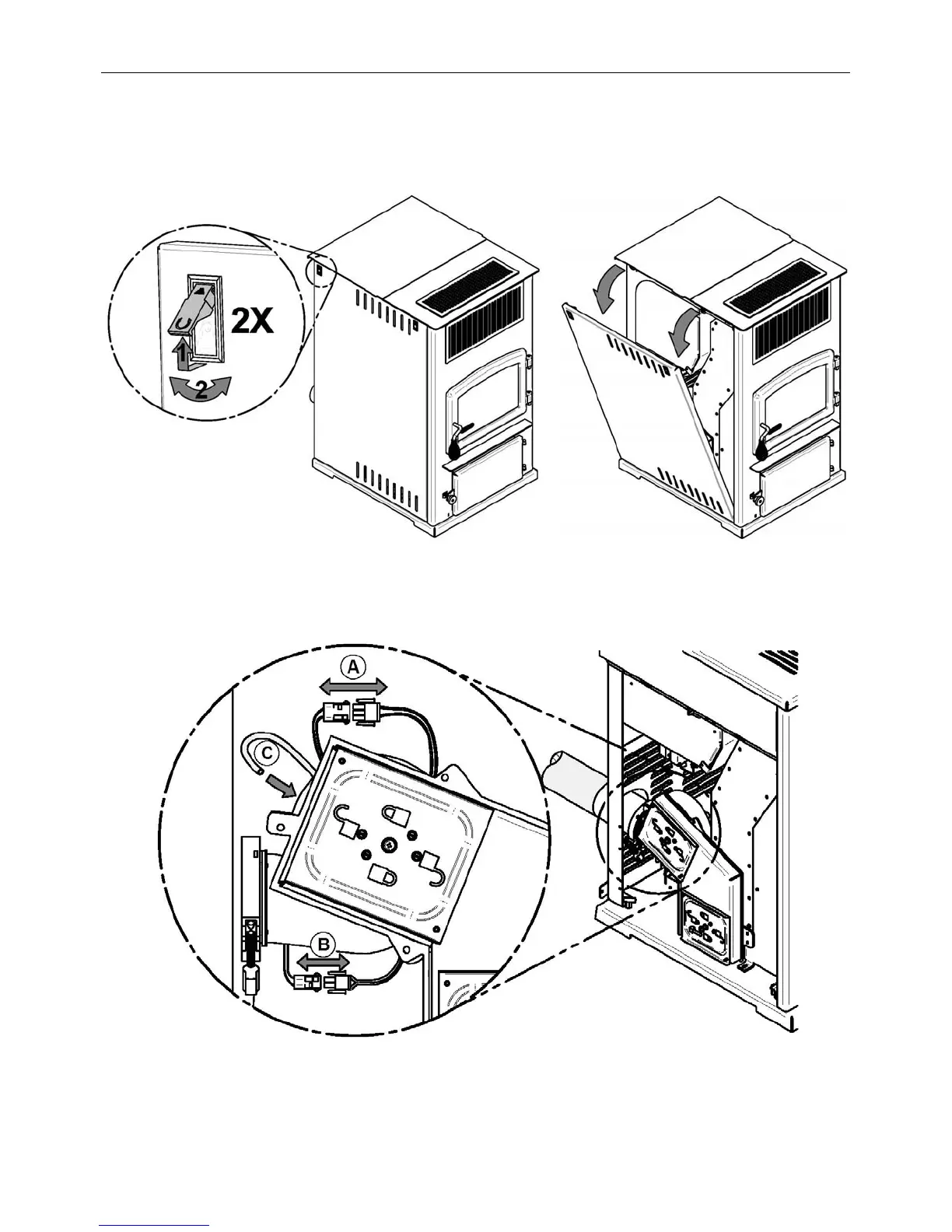

Remove the left panel.

Unplug the connections (A) and (B). Unplug the silicone tube (C).
