2.3 Dimensions
2.3.1 Stove Dimensions
9 1/4"
235mm
18 1/2"
470mm
6 5/8"
170mm

6"
153mm

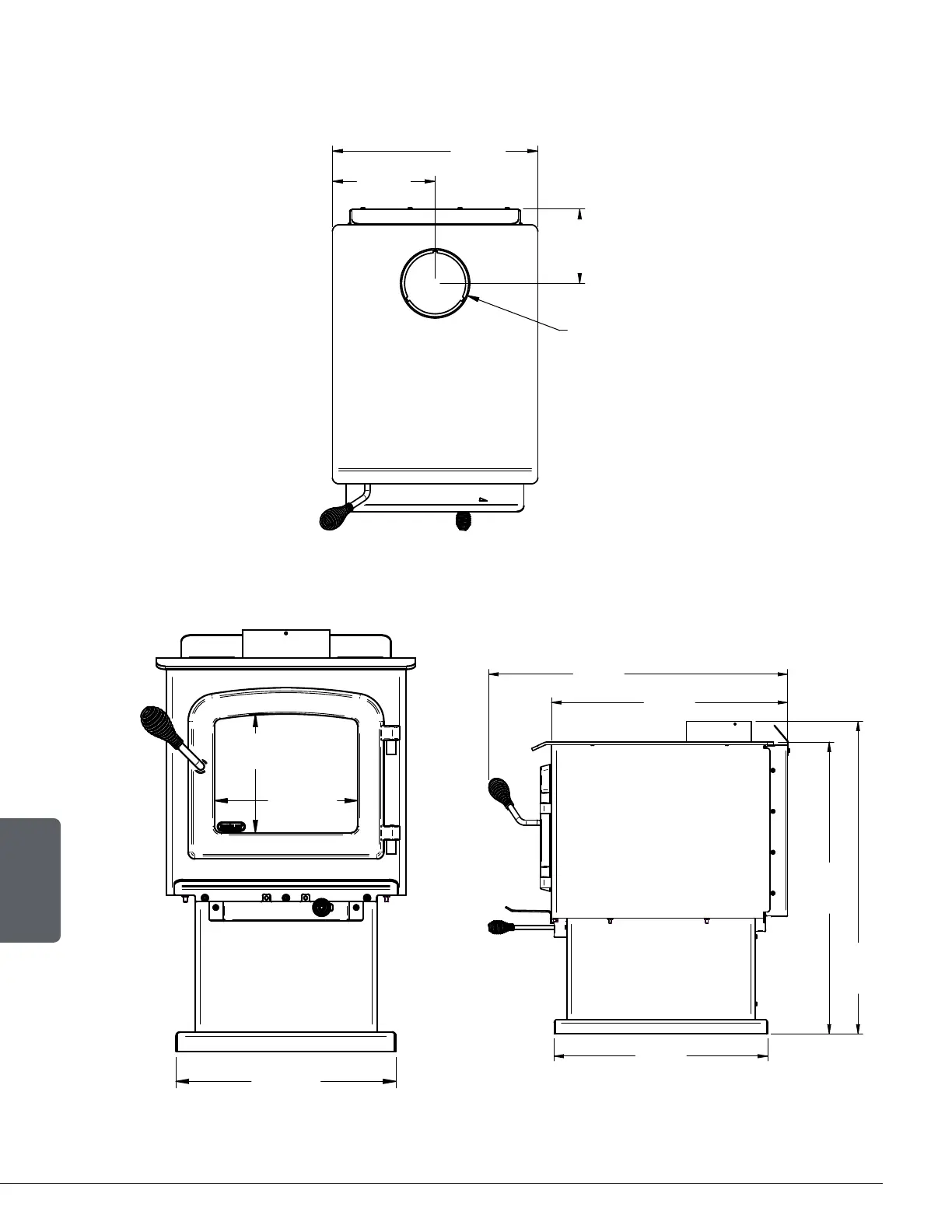

Figure 1: Top View
15 3/4"
400mm
8 1/2"
216mm
10 1/4"
260mm
30 1/8"
766mm
28 1/8"
715mm
28 7/8"
732mm
20 5/8"
523mm
22 3/4"
578mm
Figure 2: Front View Figure 3: Side View
