Drolet ESCAPE 1200 - Combustion Chamber Dimensions

Page 9
Installation and Operation Manual - Escape 1200
ENGLISH

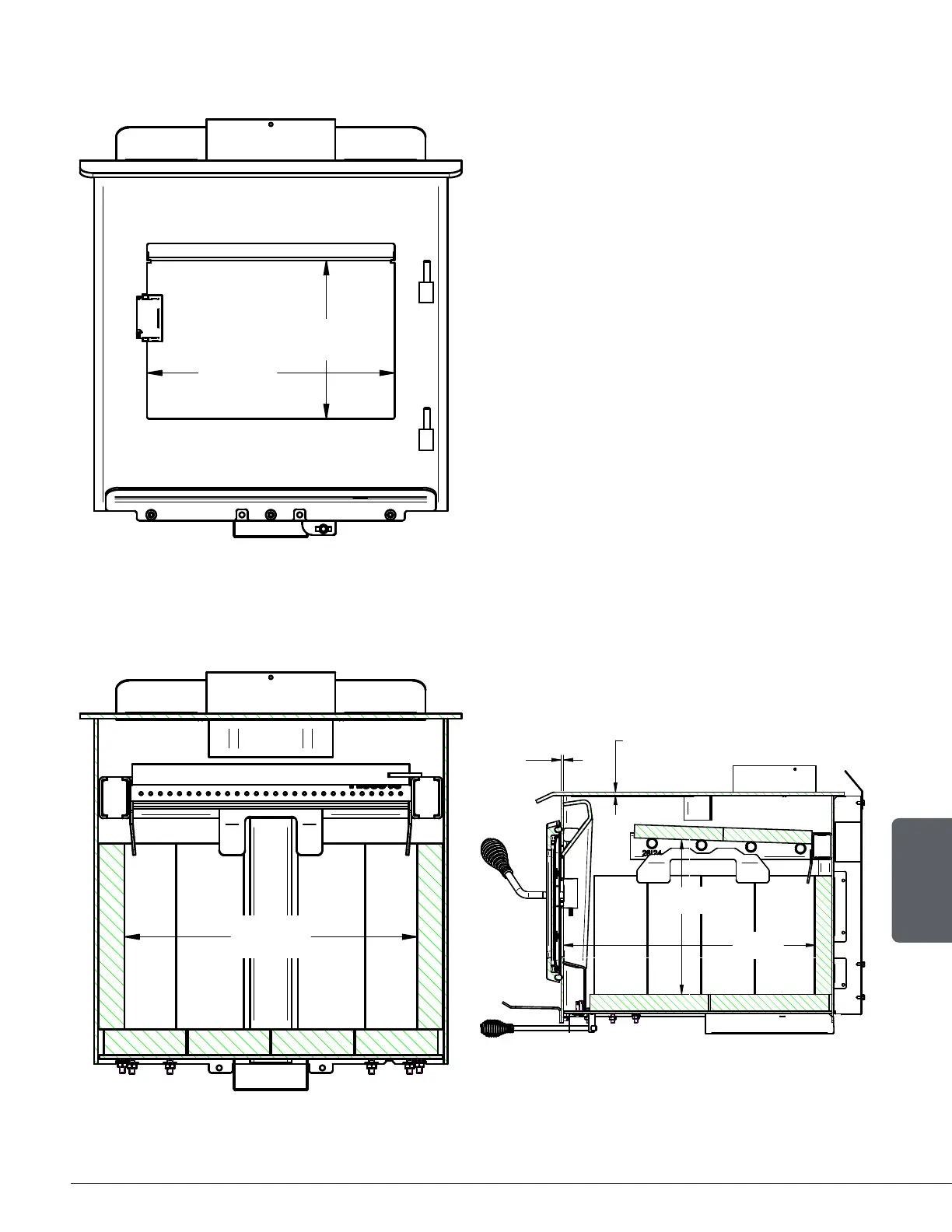

2.3.2 Combustion Chamber Dimensions
7 5/8"
195mm
12"
305mm
Figure 4: Door Opening
14 1/4"
360mm
11 3/4"
298mm
19 1/8"
484mm
1/4"
6mm
3/16"
5mm
Figure 5: Front View - Combustion Chamber Figure 6: Side View - Combustion Chamber
